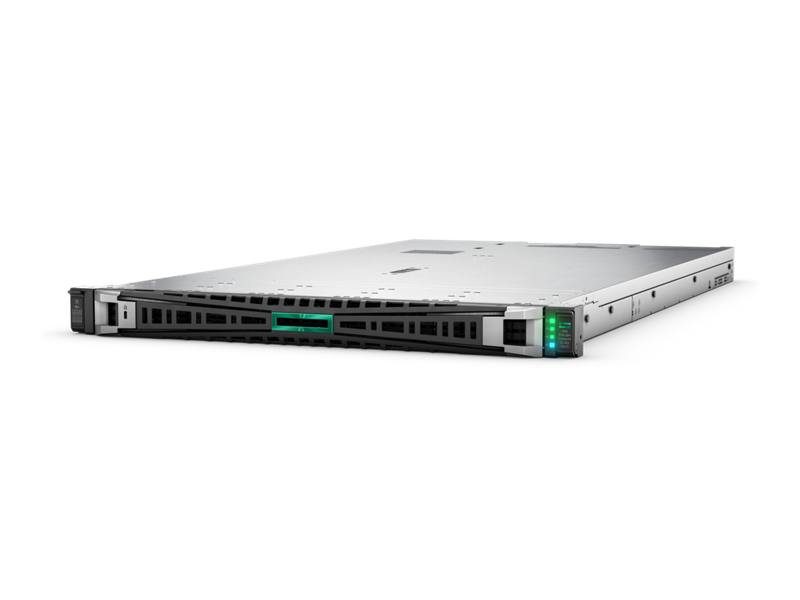

HPE P89245-375 | ProLiant DL360 Gen12 1U Rack Server, Xeon 6515P 16c, 64GB, 8SFF

Authorised HPE Partner

SKU:P89245-375

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE ProLiant DL360 Gen12 1U rack server delivers dense single-socket compute for virtualisation, database and general data centre workloads. This configuration pairs one Intel Xeon 6515P 16-core processor (2.3 GHz base, up to 3.8 GHz turbo, 150W TDP) with 64GB (2 x 32GB) DDR5 dual-rank memory and an 8 SFF hot-swap drive bay chassis.

Storage is handled by an HPE MR408i-o Gen11 x8 lane 4GB cache OCP SPDM controller, with an HPE NS204i-u v2 480GB NVMe hot-plug boot device keeping the operating system separate from data drives. Dual 800W Flex Slot Platinum hot-plug power supplies provide redundancy, and the platform supports up to three single-wide GPUs and expansion to 8 TB of DDR5 memory. This is the AP (Asia Pacific) SKU.

Features

- Intel Xeon 6 processor platform supporting up to 144 cores
- Up to 8 TB DDR5 memory at speeds up to 6400 MT/s
- Up to 2x average higher general compute performance versus the previous generation
- Supports up to 10 SFF or 20 EDSFF E3.S drives plus an OS boot device and OCP NICs in the front cage
- Support for up to three single-wide GPUs for accelerated workloads
- Hot-plug redundant Flex Slot power supplies for resilience
- Integrated TPM and HPE silicon root of trust security

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack
- Processor installed: 1 x Intel Xeon 6515P, 16 cores, 32 threads
- Processor speed: 2.3 GHz base, up to 3.8 GHz turbo
- Processor TDP: 150 W
- Processor cache: 72 MB L3
- Processors supported: up to 2 (1 installed)
- Installed memory: 64 GB (2 x 32 GB) DDR5, dual rank
- Memory slots: 32
- Maximum memory: 8 TB DDR5, up to 6400 MT/s
- Storage controller: HPE MR408i-o Gen11 x8 lanes 4GB cache OCP SPDM (RAID 0/1/10 supported)
- Boot device: HPE NS204i-u v2 480GB NVMe hot-plug
- Drive bays: 8 SFF hot-swap 2.5 inch (expandable to 10 SFF or 20 EDSFF E3.S)
- Fans: 1 x HPE ProLiant DL3X0 Gen11 1U High Performance Fan Kit
- Power supplies: 2 x HPE 800W Flex Slot Platinum hot-plug low halogen
- Security: TPM included
- GPU support: up to three single-wide GPUs
- Video: VGA
- Dimensions (W x D x H): 43.46 x 77.31 x 4.29 cm
- Operating system: none provided
- Energy efficiency: ENERGY STAR 4.0

FAQs

Q: What processor and memory come installed in this DL360 Gen12?
A: It ships with one Intel Xeon 6515P 16-core processor (2.3 GHz base, up to 3.8 GHz turbo) and 64GB (2 x 32GB) DDR5 dual-rank memory.

Q: Can this server be expanded with more memory or a second CPU?
A: Yes. The platform supports up to two processors (one installed) and up to 8 TB of DDR5 memory across 32 slots at speeds up to 6400 MT/s.

Q: What storage options does this configuration support?
A: It has 8 SFF hot-swap bays, expandable to 10 SFF or 20 EDSFF E3.S drives. An MR408i-o RAID controller with 4GB cache handles RAID 0/1/10, and a 480GB NS204i-u v2 NVMe device is included for boot.

Q: Does it include an operating system?
A: No. No operating system is provided, so you will need to supply and install your own.

Q: Are the power supplies redundant?
A: Yes. Two HPE 800W Flex Slot Platinum hot-plug low halogen power supplies are included for redundant operation.

Q: Can I install GPUs in this server?
A: Yes, the DL360 Gen12 supports up to three single-wide GPUs.
