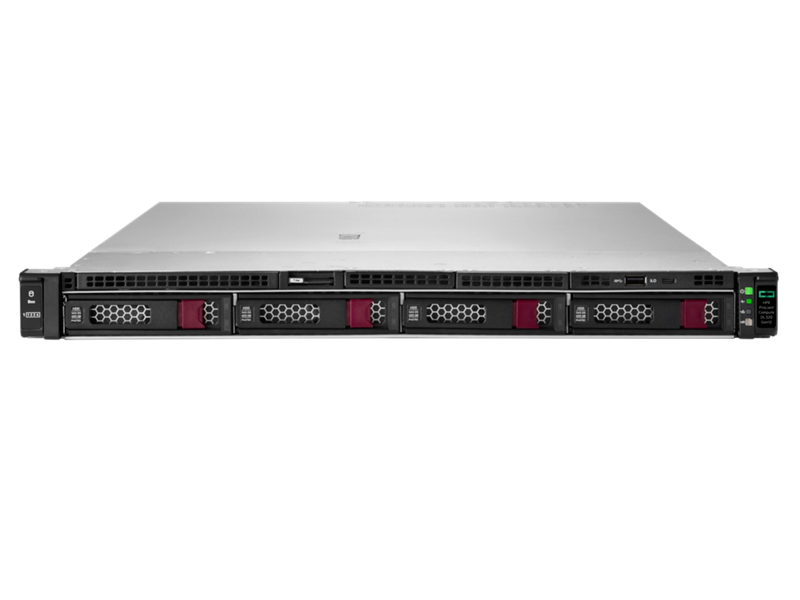

HPE P89206-375 | ProLiant DL320 Gen12 1U Rack Server, Xeon 6505P 12C, 32GB, 4LFF

Authorised HPE Partner

SKU:P89206-375

In stock:2

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE ProLiant DL320 Gen12 1U rack server is a single-socket, pre-configured system built on the Intel Xeon 6505P processor (12 cores, 2.2 GHz, 48 MB L3, 150 W). This SKU ships with 1x 32GB DDR5 RDIMM, a 4LFF drive bay chassis, an NS204i-u v2 NVMe M.2 boot device, an MR408i-o storage controller and a single 800W power supply, making it a ready-to-deploy option for compact data centre and edge workloads.

Built on the Data Center Modular Hardware System (DC-MHS) and Modular Common Redundant Power Supply (M-CRPS) designs, the DL320 Gen12 offers 16 DIMM slots with up to 4 TB of memory capacity, PCIe Gen5 expansion and optional OCP 3.0 networking slots. HPE iLO 7 provides remote management with silicon root of trust security, and the chassis suits rack deployments where density and serviceability matter.

Features

- Intel Xeon 6 processor platform with rich I/O options
- Data Center Modular Hardware System (DC-MHS) design for serviceability
- Modular Common Redundant Power Supply (M-CRPS) design
- PCIe Gen5 expansion
- OCP 3.0 networking slots at front or rear
- NS204i-u boot device with front or rear install options
- HPE iLO 7 with silicon root of trust security
- Up to 4 TB DDR5 memory capacity across 16 DIMM slots

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack
- Processor: 1 x Intel Xeon 6505P, 12 cores, 2.2 GHz base, 48 MB L3, 150 W
- Memory installed: 1 x 32GB DDR5 RDIMM, 6400 MT/s at 1DPC
- Memory slots: 16 DIMM slots, 8 channels, 2 DIMMs per channel
- Maximum memory: 4 TB (16 x 256 GB RDIMM)
- Drive bays: 4 LFF
- Boot device: HPE NS204i-u v2 NVMe M.2
- Storage controller: HPE MR408i-o
- Power supply: 1 x 800W (M-CRPS format)
- Management: HPE iLO 7 on DC-SCM module
- Rear ports: 2 x USB 3.2, VGA, dedicated iLO network port
- Optional OCP 3.0 slots: 2 (Slot A and Slot B)
- Dimensions (H x W x D): 4.28 x 43.46 x 66.70 cm
- Weight: 12.5 kg light load, 18.34 kg maximum

FAQs

Q: What processor does the HPE P89206-375 use?
A: It is configured with a single Intel Xeon 6505P processor with 12 cores, 2.2 GHz base clock, 48 MB L3 cache and a 150 W TDP.

Q: How much memory is installed and how far can it be expanded?
A: This SKU includes 1 x 32GB DDR5 RDIMM. The server has 16 DIMM slots and supports up to 4 TB using 256 GB RDIMMs. Memory runs at 6400 MT/s at 1DPC and 5200 MT/s at 2DPC.

Q: What drive bays and storage controller does this configuration include?
A: It uses a 4LFF drive bay chassis with an HPE MR408i-o storage controller, plus an HPE NS204i-u v2 NVMe M.2 boot device.

Q: Does this server have redundant power?
A: This configuration includes one 800W power supply in the Common Redundant Power Supply format. The chassis design supports redundant power supply options.

Q: How is the server managed remotely?
A: HPE iLO 7 is included on the DC-SCM module, with a dedicated iLO network port and silicon root of trust security.

Q: Can I add network cards to the DL320 Gen12?
A: Yes. The platform has two optional OCP 3.0 slots (Slot A and Slot B) and PCIe Gen5 expansion for additional networking and I/O options.
