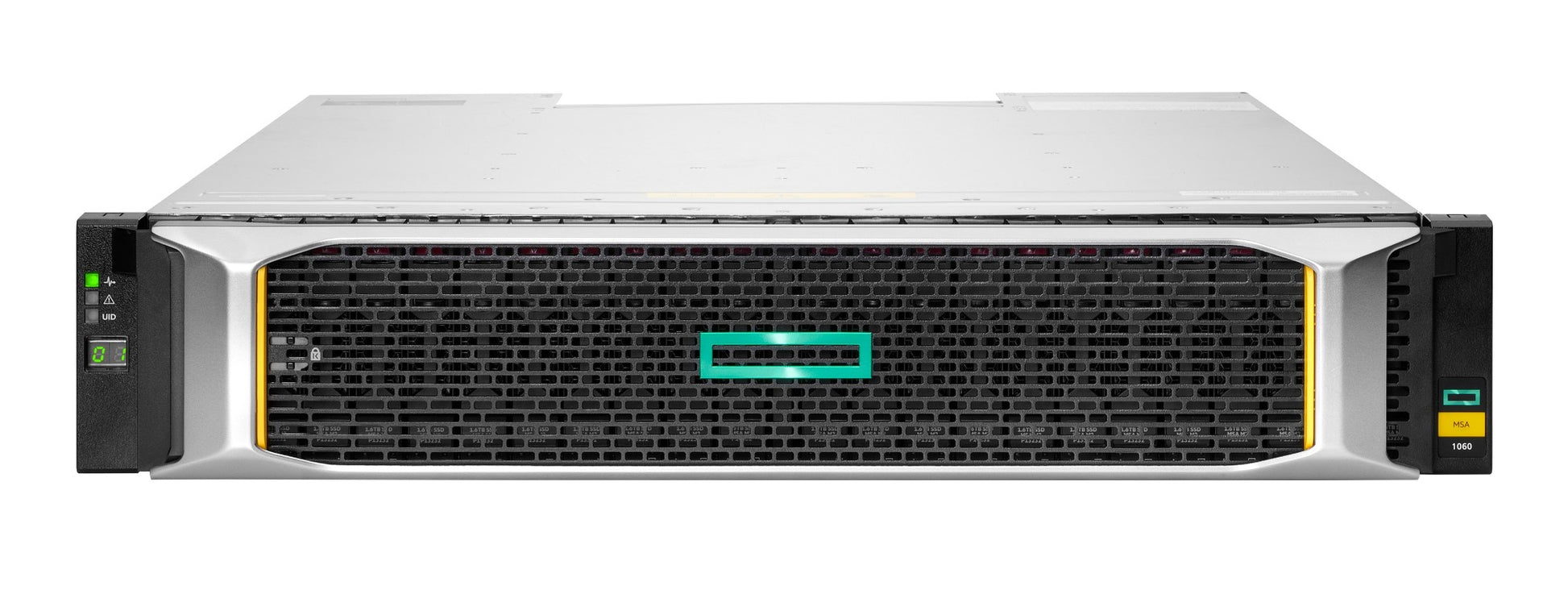

HPE P89130-B25 | MSA 1060 SFF Storage Array, 2x12Gb SAS 2-Port, 24-Bay

Name: HPE P89130-B25 | MSA 1060 SFF Storage Array, 2x12Gb SAS 2-Port, 24-Bay
Brand: HPE
SKU: P89130-B25
Price: 9363.11 AUD
Availability: BackOrder

Authorised HPE Partner

SKU:P89130-B25

Stock Status: Enquire

$9,363.11 inc. GST

$8,511.92 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The MSA 1060 SFF storage array is an entry-level 2U block storage system with two 12Gb SAS controllers, each providing 2 host ports, and 24 open 2.5-inch small form factor drive bays. Supplied without drives, it suits small to medium-sized deployments that need affordable shared storage with controller redundancy and flash-ready performance of over 154,000 IOPS.

Two redundant 580W hot-plug power supplies and dual controllers support continuous availability, while RAID 0, 1, 5, 6 and 10 give flexible protection options. Capacity can grow with up to three expansion enclosures, and large form factor and small form factor 2060 enclosures can be mixed. Virtualised snapshot technology supports data protection and fast recovery.

Features

- Dual controllers for redundancy
- Two redundant hot-plug 580W power supplies
- Virtualised snapshot technology for data protection and instant recovery
- Scales with up to three expansion enclosures
- Supports a mix of 3.5-inch LFF and 2.5-inch SFF 2060 expansion enclosures
- 94% efficient power supplies meeting EU Lot9 requirements
- Flash-ready, affordable entry-level shared storage

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U rack-mountable, SFF
- Access type: Block storage
- Controllers: 2 x 12Gb SAS, 2 host ports each (4 host ports total)
- Drive bays: 24 x 2.5-inch SFF (no drives included)
- Expansion: 0-3 drive enclosures, LFF/SFF mixing supported
- Expansion enclosure interface: 12Gb SAS
- Performance: over 154,000 IOPS
- RAID levels: 0, 1, 5, 6, 10
- Maximum volumes: 512 per pool, 1024 per array
- Snapshots: 64 included with array
- Power: 2 x 580W redundant hot-plug power supplies, 94% efficient
- Included: array chassis, two controllers, two AC power supplies, two 1.5m PDU cords (IEC C14), rack-mount kit
- Not included: drives and transceivers

FAQs

Q: Does the MSA 1060 SFF array include drives?
A: No. The array ships with 24 open 2.5-inch SFF bays and no drives, so compatible SFF drives are purchased separately.

Q: What host connectivity does this model use?
A: It has two controllers with two 12Gb SAS host ports each, giving four 12Gb SAS host ports in total. Transceivers are not included.

Q: Can I expand capacity later?
A: Yes. The array supports up to three expansion enclosures, giving four enclosures in total including the array. LFF and SFF enclosures can be mixed.

Q: Which RAID levels are supported?
A: RAID 0, 1, 5, 6 and 10 are supported.

Q: What is included in the box?
A: The MSA 1060 SFF chassis, two controllers, two AC power supplies, two 1.5m PDU cords (IEC C14) and a rack-mount kit.

Q: Is the power supply redundant?
A: Yes. Two 580W hot-plug power supplies provide redundancy, and they are 94% efficient.
