HPE

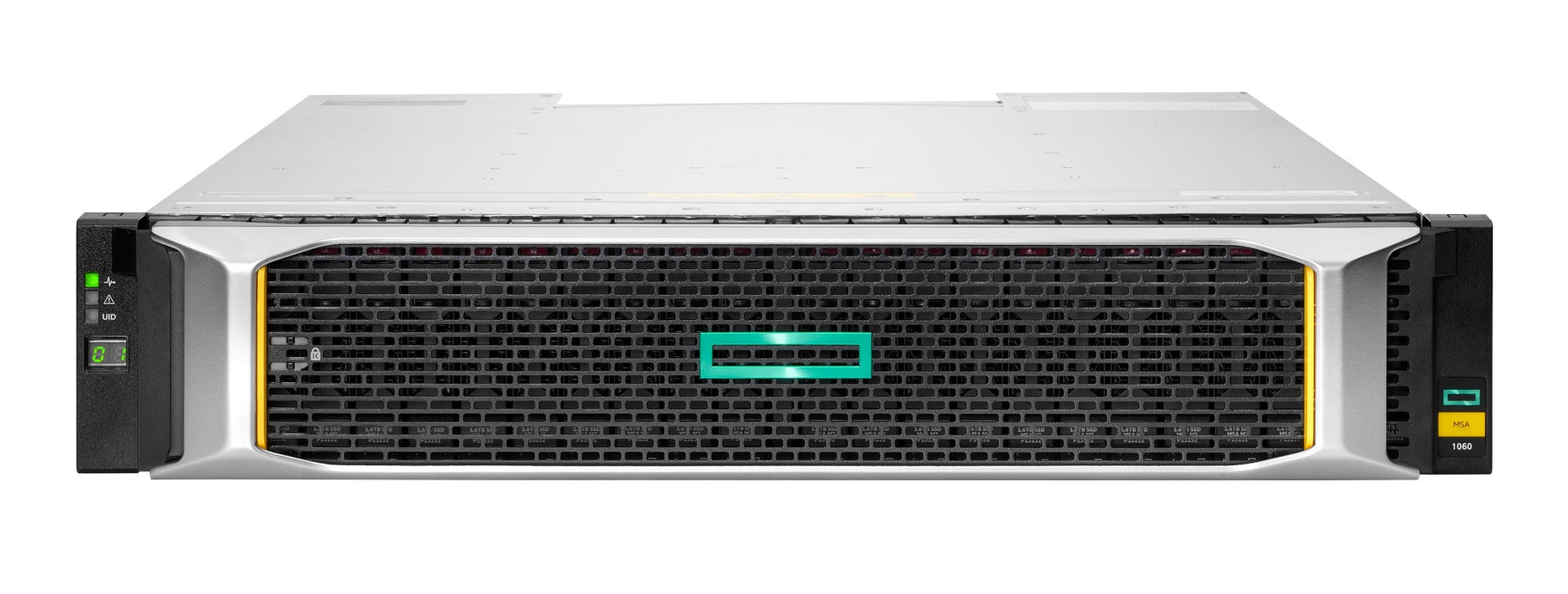

HPE P89129-B25 | MSA 1060 2U SFF Storage Array, 2x 16Gb FC, 24 Bays, No Drives

HPE P89129-B25 | MSA 1060 2U SFF Storage Array, 2x 16Gb FC, 24 Bays, No Drives

P89129-B25

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The HPE MSA 1060 Storage Array is a 2U rack-mount, small form factor entry-level shared storage solution designed for small to medium-sized businesses seeking affordable, flash-ready performance. Equipped with two active/active 16Gb Fibre Channel 2-port controllers and 24 open SFF drive bays, it delivers over 154,000 IOPS with support for all-flash, hybrid, or tiered configurations from day one. Drives are sold separately, making it easy to tailor capacity and media type to your workload — from SSDs to enterprise SAS HDDs.

The MSA 1060 supports up to 2.95PB of scalable capacity via expansion enclosures, offers redundant 580W power supplies, and includes automated tiering, virtualised snapshots, and remote replication for built-in data protection and disaster recovery. Its intuitive Storage Management Utility (SMU), non-disruptive firmware upgrades, and broad HPE ProLiant server compatibility make it easy to deploy and manage in production environments. Buy today from iptrading.com.au — fast shipping and expert service across Australia.

Features

- Dual controller active/active (dual pool) design with automatic failover for high availability
- Next-generation RAID offload ASIC and dedicated CPU in each controller for consistent performance
- HPE MSA automated tiering engine dynamically moves hot data to fastest media in real time
- Virtualised snapshot technology for rapid data protection and instant recovery (up to 512 snapshots with Advanced Data Services License)
- Remote replication via Fibre Channel or iSCSI for affordable, site-to-site disaster recovery
- Virtual Storage Disk Groups can span multiple enclosures for flexible, scalable capacity
- Non-disruptive online controller firmware upgrades to eliminate planned maintenance windows
- Intuitive Storage Management Utility (SMU) for straightforward day-to-day administration
- Flash-ready architecture supports all-flash, hybrid, or tiered drive configurations from day one
- Support for self-encrypting drive (SED/FIPS) options for data-at-rest security
- NEBS-certified DC-power configuration available for telco and carrier environments
- Customer self-repairable (CSR) parts to minimise repair time and reduce support costs

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form Factor: 2U Rack, Small Form Factor (SFF)
- Controllers: 2x 16Gb Fibre Channel 2-port (dual active/active)
- Drive Bays: 24 x SFF (2.5-inch), open — drives sold separately
- Host Connectivity: 16Gb Fibre Channel (SFP+ transceivers sold separately)
- Performance: Over 154,000 IOPS
- Power Supply: 2x 580W Redundant AC Power Supplies
- Max Raw Capacity (base enclosure): Up to 737.28TB
- Max Scalable Capacity: Up to 2.95PB with expansion enclosures
- Expansion: Up to 3x HPE MSA 2060 LFF or SFF Drive Enclosures (4 total)
- RAID Levels: 0, 1, 5, 6, 10, MSA-DP+ (RAID 0 for Read Cache only)
- Snapshots: 64 standard; up to 512 with Advanced Data Services License
- Supported Drive Types: SSD, Enterprise SAS HDD (10K/15K RPM), Midline SAS HDD (7.2K RPM)
- Self-Encrypting Drive (SED/FIPS) support available
- Warranty: 3-year limited, parts-only exchange, next business day response

FAQs

Q: Does the HPE MSA 1060 P89129-B25 come with drives included?
A: No — this SKU (P89129-B25) includes the array enclosure with two 16Gb FC 2-port controllers and 24 open SFF drive bays, but no drives are included. Drives are purchased separately, allowing you to choose the right combination of SSDs, enterprise SAS, or midline SAS HDDs for your workload and budget.

Q: What host connectivity does the MSA 1060 support?
A: The MSA 1060 P89129-B25 connects to hosts via 16Gb Fibre Channel using SFP+ transceivers (sold separately). Each controller provides two FC ports, giving you four FC ports total across both controllers for redundant host connectivity.

Q: Can the HPE MSA 1060 be expanded beyond the base 24 drive bays?
A: Yes. You can add up to three HPE MSA 2060 LFF or SFF Drive Enclosures for a total of four enclosures, scaling raw capacity up to 2.95PB. Virtual Storage Disk Groups can be spanned across multiple enclosures for flexible capacity management.

Q: Does the MSA 1060 support all-flash configurations?
A: Yes. The HPE MSA 1060 is flash-ready from day one and supports all-flash, hybrid, or tiered configurations. Its automated tiering engine dynamically moves hot data to the fastest available media in real time, optimising performance without manual intervention.

Q: Is the HPE MSA 1060 compatible with HPE ProLiant servers?
A: Yes. The MSA 1060 is field-proven and fully compatible with HPE ProLiant servers. It also supports HPE Smart Choice drive 6-pack options for straightforward capacity expansion, and includes customer self-repairable parts to minimise downtime.

Q: Can I buy the HPE MSA 1060 P89129-B25 in Australia from IP Trading?
A: Absolutely. iptrading.com.au is an authorised Australian B2B IT hardware reseller offering the HPE MSA 1060 with fast shipping and expert pre-sales and post-sales support across Australia. Contact our team for pricing, lead times, or volume enquiries.
