HPE P89072-B25 | MSA 2070 SFF Dual-Controller SAS Storage Array, 4x 12Gb

Authorised HPE Partner

SKU:P89072-B25

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

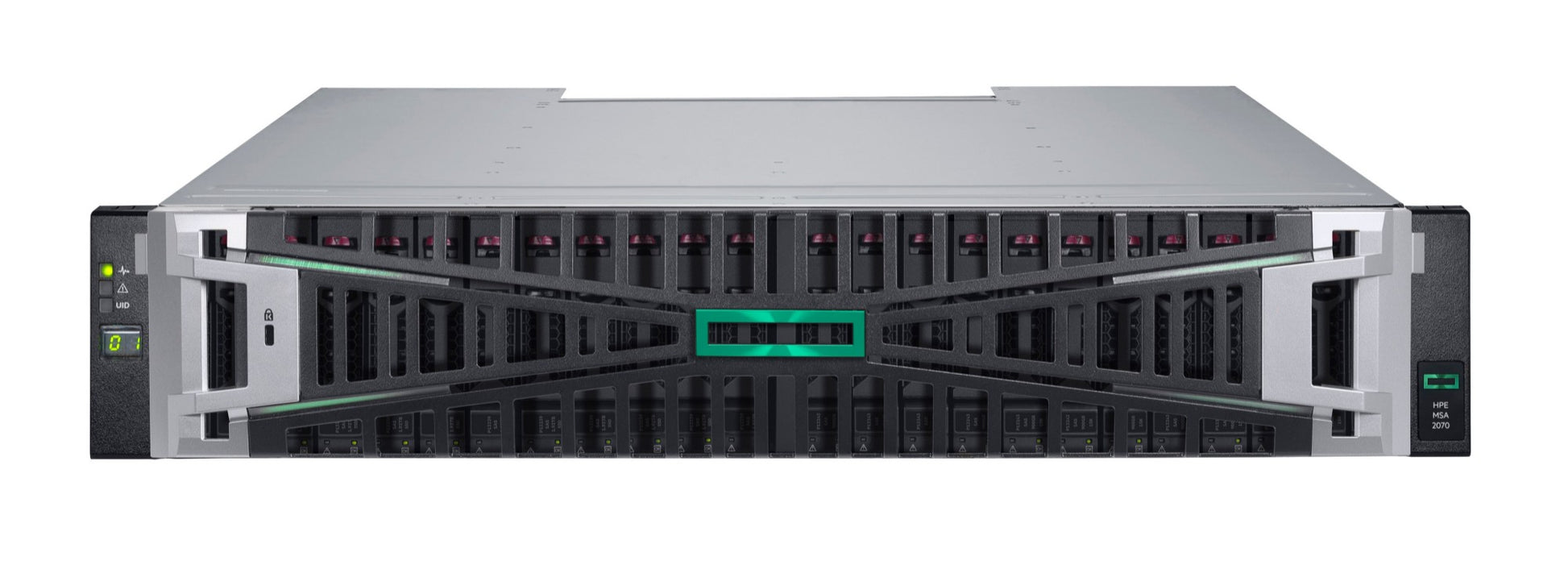

The HPE MSA 2070 SFF dual-controller SAS storage array is a 2U small-form-factor hybrid storage system with 24 x 2.5-inch drive bays and 12Gb SAS host connectivity. This configuration ships with two controllers, each with 4 x 12Gb SAS host ports (8 per array), and no drives, so you can populate it with the SFF HDDs or SSDs that suit your workload. It suits small and mid-sized business, branch office and edge deployments that need affordable, resilient block storage.

Part of the MSA Gen7 family, the MSA 2070 delivers up to 2x the random IOPS of MSA Gen6 and scales beyond 7 PB per array with up to nine 2U expansion enclosures. Advanced MSA-DP+ RAID, redundant 580W AC hot-plug power supplies, and non-disruptive online firmware updates support high availability, while the MSA Storage Management Utility v4 and a RESTful Redfish and Swordfish interface simplify day-to-day management.

Features

- Up to 2x more random IOPS and 30% more sequential bandwidth than MSA Gen6
- Scales beyond 7 PB per array with up to nine 2U expansion enclosures
- Advanced MSA-DP+ RAID with integrated sparing, faster rebuilds and incremental disk group expansion
- Dual controllers and redundant hot-plug power supplies for high availability
- Non-disruptive online firmware updates for controllers and drive media
- MSA Storage Management Utility v4 with MSA Health Check access
- RESTful management interface supporting Redfish and Swordfish
- Redundant web-based management interface

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U SFF, 24 x 2.5-inch drive bays
- Controllers: 2 per array
- Host ports: 4 x 12Gb SAS per controller (8 per array)
- Data cache and system memory: 48 GB per array
- RAID levels: RAID 0 (read cache only), 1, 5, 6, 10, MSA-DP+
- Expansion: up to 9 expansion enclosures, 12Gb SAS drive enclosure interface
- Maximum drives per array: 240 SFF HDDs or 240 SFF SSDs
- Maximum raw capacity: 7.37 PB (all SFF)
- Maximum read cache: 8.34 TB (7.6 TiB) per array
- Pools: two, with 4 PiB addressable capacity per pool
- Power supplies: 2 x redundant 580W AC hot-plug, 100-240 VAC, 50/60 Hz
- Operating temperature: 5 to 40 C (ASHRAE A3)
- Dimensions (chassis): 8.9 cm H x 44.5 cm W x 50.8 cm D
- Weight: 30 kg fully populated SFF controller enclosure, 5 kg empty chassis
- Drives not included

FAQs

Q: Does the P89072-B25 include drives?
A: No. This SKU is the SFF dual-controller array without drives, so you add your own supported 2.5-inch HDDs or SSDs.

Q: What host connectivity does this MSA 2070 model provide?
A: Each of the two controllers has 4 x 12Gb SAS host ports, giving 8 host ports per array for direct-attach SAS connection to servers.

Q: How much can the MSA 2070 be expanded?
A: It supports up to nine 2U expansion enclosures over 12Gb SAS, for up to 240 SFF drives and a maximum raw capacity of 7.37 PB per array.

Q: Which RAID levels are supported?
A: RAID 1, 5, 6, 10 and MSA-DP+ are supported, along with NRAID/RAID 0 for read cache only.

Q: What is the difference between SFF and LFF versions of the MSA 2070?
A: The SFF chassis holds 24 x 2.5-inch drives in 2U, while the LFF version holds 12 x 3.5-inch drives in 2U. This SKU is the SFF model.

Q: Can firmware be updated without downtime?
A: Yes. The MSA 2070 supports non-disruptive online firmware updates for both controllers and drive media.
