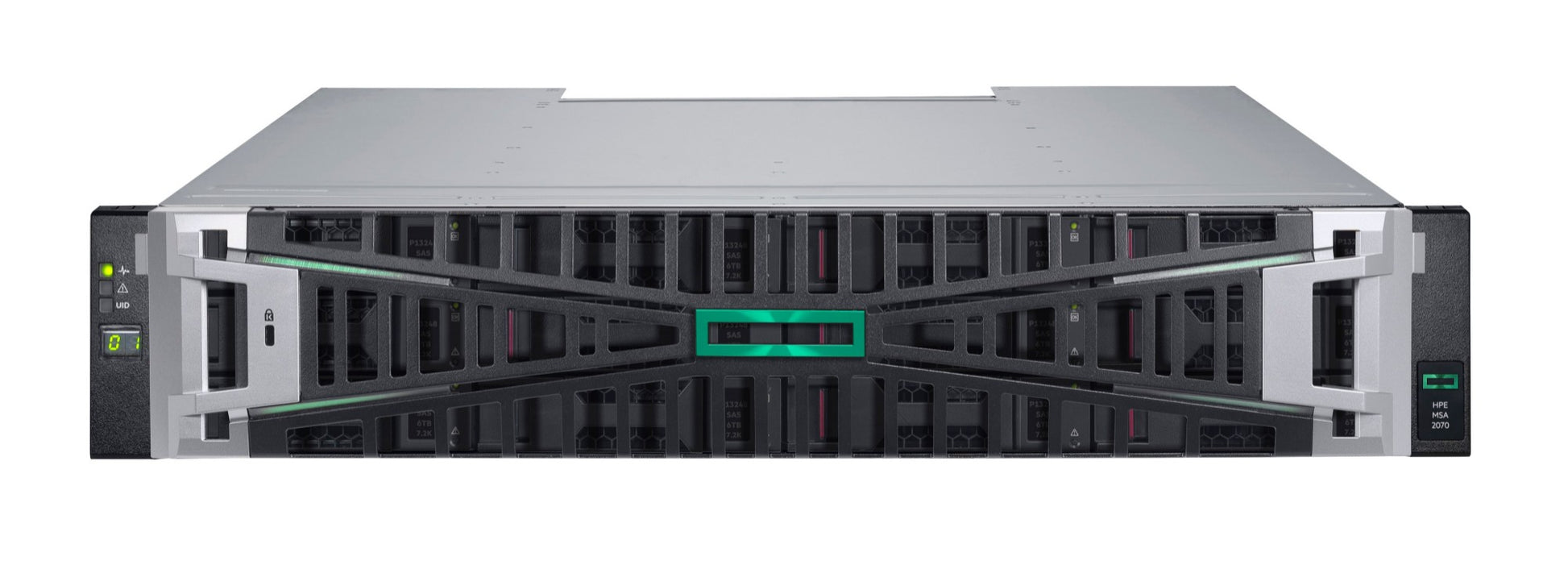

HPE P89069-B25 | MSA 2070 LFF iSCSI Storage Array, 10/25GbE, 12 Bays

Authorised HPE Partner

SKU:P89069-B25

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE MSA 2070 LFF iSCSI storage array is a 2U entry-level shared storage system with dual active/active controllers, twelve large form factor (3.5-inch) drive bays and 10/25GbE iSCSI host connectivity. This model provides eight 10/25GbE iSCSI host ports in total (four per controller), two 580W redundant power supplies, and is supplied without drives so it can be configured to suit SMB workloads such as virtualisation, file services and backup targets.

Capacity scales with 12Gb SAS expansion enclosures, up to nine per array, for as many as 120 LFF drives and 2.88 PB of raw capacity. Supported media includes LFF 7.2K HDDs from 8 TB to 24 TB and a 1.92 TB LFF SSD, with RAID 1, 5, 6, 10 and MSA-DP+ protection. Thin provisioning, snapshots, automated tiering and online firmware updates help keep management simple, and the array is designed to be customer self-installable and self-repairable.

Features

- Dual-controller active/active design, can also run active/passive
- Thin provisioning, space reclamation and thin rebuild
- Automated tiering across performance, standard and archive tiers
- Snapshots, volume copy and remote snaps
- Online, non-disruptive firmware updates for controllers and drives
- MSA Health Check analytics
- Battery-free cache backup using super capacitors
- Customer self-installable, self-repairable and self-upgradeable
- Energy Star and USGv6 certified

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U rack-mount, 12 x LFF (3.5-inch) drive bays
- 2 controllers, active/active (dual pool)
- 8 x 10/25GbE iSCSI host ports in total (4 per controller), IPv4 and IPv6
- 48 GB data cache plus system memory per array
- Up to 8.34 TB read cache per array
- 12Gb SAS expansion, 0 to 9 expansion enclosures
- Up to 120 LFF drives and 2.88 PB raw capacity per array
- Supported LFF HDDs (7.2K): 8 TB, 12 TB, 16 TB, 20 TB, 24 TB
- Supported LFF SSD: 1.92 TB
- RAID levels: RAID 1, 5, 6, 10, MSA-DP+, NRAID/RAID 0 (read cache only)
- Up to 512 volumes, 512 snapshots, 512 hosts and 1024 initiators
- 2 x 2U Flex 580W 80+ Platinum redundant power supplies, 100-240 V, 50/60 Hz
- Operating temperature: ASHRAE A3, 5 to 40 C
- Dimensions: 8.9 cm (H) x 44.5 cm (W) chassis, 50.8 cm depth
- Weight: 32 kg fully populated, 5 kg empty chassis

FAQs

Q: Does the HPE MSA 2070 P89069-B25 include drives?
A: No. This array is supplied without drives, so you choose LFF HDDs or SSDs to suit your capacity and performance needs.

Q: What host connectivity does this MSA 2070 model provide?
A: It provides eight 10/25GbE iSCSI host ports in total, four on each of the two controllers, with IPv4 and IPv6 support.

Q: Can I expand the storage capacity later?
A: Yes. The array supports up to nine 12Gb SAS expansion enclosures, for up to 120 LFF drives and 2.88 PB of raw capacity.

Q: Which drives are supported in the LFF bays?
A: The 12 LFF bays support 7.2K HDDs in 8 TB, 12 TB, 16 TB, 20 TB and 24 TB capacities, and a 1.92 TB LFF SSD.

Q: Is the power supply redundant?
A: Yes. The array includes two 580W 80+ Platinum hot-swappable-style redundant power supplies rated for 100-240 V, 50/60 Hz input.

Q: What RAID levels does it support?
A: It supports RAID 1, 5, 6, 10 and MSA-DP+, plus NRAID/RAID 0 for read cache only.
