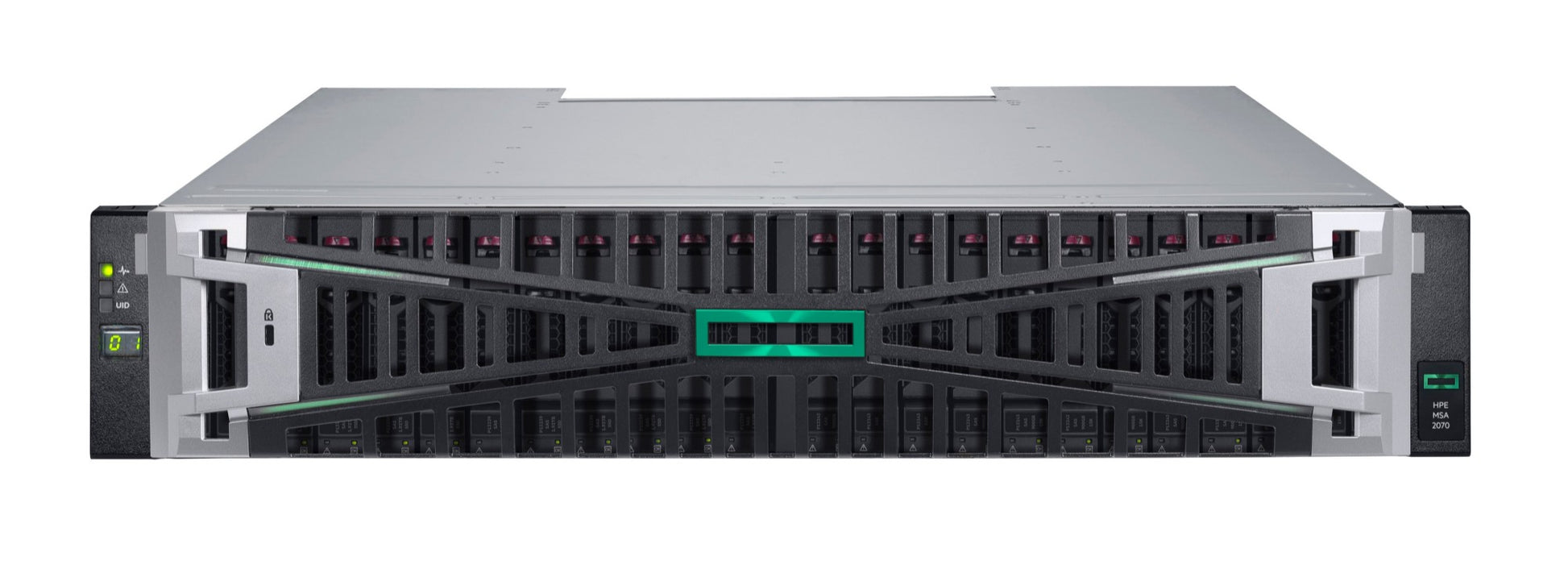

• Silver and black HPE P89068-B25 MSA 2070 SFF 2U storage array with dual 32Gb FC 4-port controller and green panel
1 1

HPE

HPE P89068-B25 | MSA 2070 SFF 2U Storage Array, Dual 32Gb FC 4-Port, Controller-Only

HPE P89068-B25 | MSA 2070 SFF 2U Storage Array, Dual 32Gb FC 4-Port, Controller-Only

P89068-B25

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The HPE MSA 2070 SFF Storage Array is an entry-level Gen7 SAN solution built for SMB and ProLiant server environments that need high performance at an affordable price. This controller-only SKU ships with two redundant 32Gb Fibre Channel 4-port controllers in a 2U small form factor enclosure, delivering up to 2x more random IOPS and 30% more sequential bandwidth than the previous-generation MSA Gen6. With 24 SFF drive bays and support for up to nine additional expansion enclosures, it scales to a maximum raw capacity of 7.37PB — making it an ideal foundation for growing virtualised and mixed workload environments.

The MSA 2070 supports RAID levels 0, 1, 5, 6, 10, and MSA-DP+, sub-LUN automated tiering across up to three tiers, and non-disruptive online firmware updates for controllers and drive media. It is compatible with Windows Server, VMware vSphere, Red Hat Linux, and SUSE SLES, and is certified for use with HPE Morpheus VM Essentials Software. Note: drives and SFP transceivers are not included with this SKU and must be sourced separately. Available now at iptrading.com.au — competitive prices and local support.

Features

- Up to 2x more random IOPS and 30% more sequential bandwidth versus MSA Gen6
- Dual redundant 32Gb FC 4-port controllers for high availability
- Non-disruptive online firmware updates for controllers and drive media
- Sub-LUN automated tiering with data movement across up to three tiers
- Support for self-encrypting drive (SED) SSD and HDD options
- Remote Snapshot (asynchronous array-based replication) via optional Advanced Data Services License
- HPE MSA Storage Management Utility (SMU v.4) with guided setup and at-a-glance dashboards
- Virtual Storage Disk Groups can span multiple enclosures for flexible capacity management
- Compatible with Windows Server, VMware vSphere, Red Hat Linux, and SUSE SLES
- Optional Arxscan Arxview remote monitoring via HPE Complete program

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Controllers: 2x 32Gb Fibre Channel, 4 host ports per controller (8 total)
- Host Interface: 32Gb FC (supports 16/32Gb FC)
- Form Factor: 2U Small Form Factor (SFF)
- Drive Bays: 24 SFF bays per base enclosure
- Maximum Raw Capacity: up to 7.37PB SFF (with expansion enclosures)
- Expansion: up to 9 additional 2U SFF 24-bay or LFF 12-bay enclosures
- RAID Levels: 0, 1, 5, 6, 10, MSA-DP+
- Snapshots: 64 standard (upgradeable to 512 with Advanced Data Services License)
- Power Supplies: Redundant 580W
- Controller-only SKU — drives and SFP transceivers not included

FAQs

Q: Does this SKU include drives or SFP transceivers?
A: No. The P89068-B25 is a controller-only SKU. It ships with two 32Gb FC 4-port controllers but does not include SFF drives or SFP transceivers, which must be purchased separately.

Q: What host connectivity does the MSA 2070 support?
A: The MSA 2070 with this controller configuration uses 32Gb Fibre Channel host interfaces. Each controller has four FC ports, providing eight total host ports across the dual-controller pair. Both 16Gb and 32Gb FC speeds are supported.

Q: How scalable is the HPE MSA 2070?
A: The base 2U enclosure supports 24 SFF drives. You can expand by adding up to nine additional 2U SFF (24-bay) or LFF (12-bay) enclosures, scaling raw capacity to a maximum of 7.37PB SFF.

Q: What operating systems and hypervisors is the MSA 2070 compatible with?
A: The HPE MSA 2070 is certified for use with Windows Server, VMware vSphere, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server (SLES). It is also certified for HPE Morpheus VM Essentials Software.

Q: What optional features are available for the MSA 2070?
A: The HPE MSA Advanced Data Services License unlocks additional capabilities including up to 512 snapshots, Remote Snapshot asynchronous replication, and sub-LUN automated tiering across up to three storage tiers.

Q: Can I purchase the HPE MSA 2070 in Australia with local support?
A: Yes. The HPE MSA 2070 SFF 2x32Gb FC Controller (P89068-B25) is available now through iptrading.com.au with competitive pricing and local Australian support. Contact the team for volume pricing or pre-sales assistance.
