HPE P89067-B25 | MSA 2070 LFF SAN Storage Array, 2x 32Gb FC 4-Port

Authorised HPE Partner

SKU:P89067-B25

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

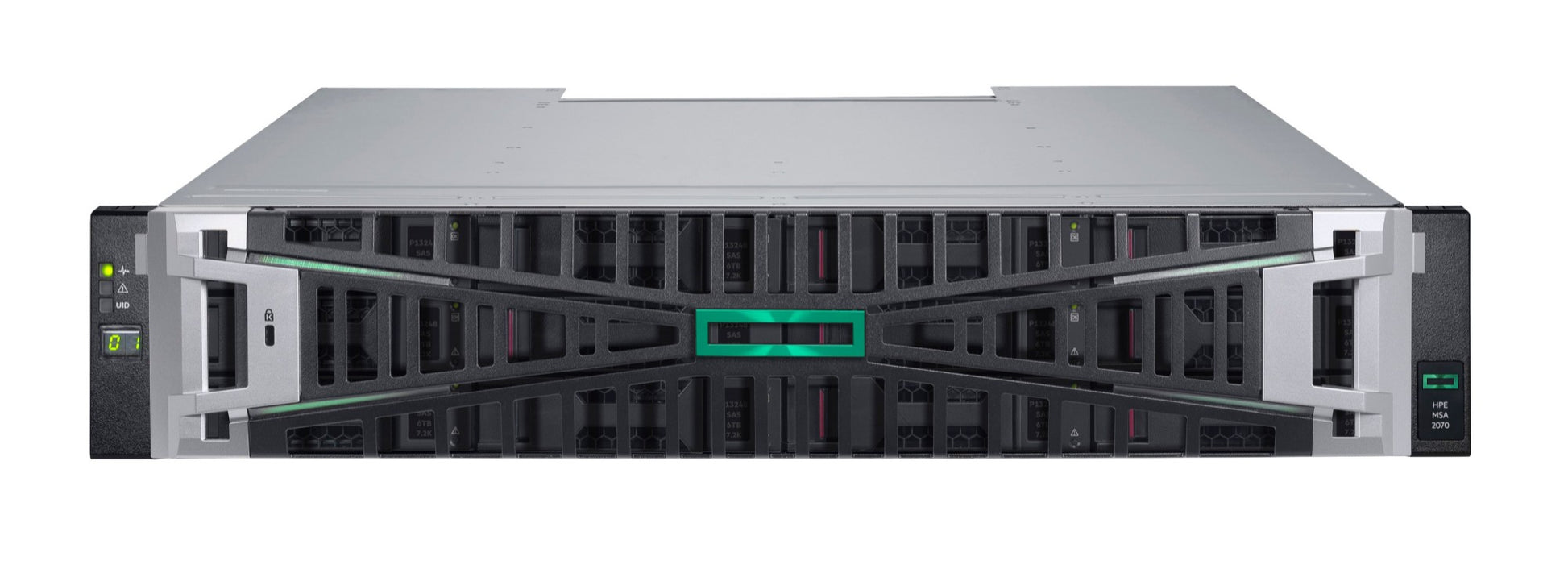

The HPE MSA 2070 LFF SAN storage array is a 2U, 12-bay large form factor block storage system with dual controllers and 32Gb Fibre Channel host connectivity. This model ships with two 4-port 32Gb FC controllers, giving 8 host ports per array for fabric-attached servers in hybrid or all-flash configurations.

Built on the HPE MSA Gen7 platform, it supports RAID 0, 1, 5, 6 and 10, a 12Gb SAS drive enclosure interface and up to nine expansion enclosures for up to 120 LFF drives. Redundant controllers and dual hot-swap power supplies support dependable shared storage for virtualised and general business workloads, and the platform is certified for HPE Morpheus VM Essentials Software.

Features

- Hybrid and all-flash capable MSA Gen7 platform
- Dual redundant controllers and power supplies for high availability
- 32Gb Fibre Channel host connectivity for fabric-attached servers
- Scales beyond 2.8 PB raw per array with up to nine 2U expansion enclosures
- Supports mixing LFF and SFF arrays and enclosures
- Certified for HPE Morpheus VM Essentials Software

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U, large form factor (LFF)
- Drive bays: 12 x 3.5-inch per array enclosure
- Controllers: 2 per array
- Host ports: 8 x 32Gb Fibre Channel (4 per controller)
- Drive enclosure interface: 12Gb SAS
- Cache plus system memory: 48 GB per array
- RAID levels: 0, 1, 5, 6, 10
- Expansion enclosures: 0 to 9
- Maximum drives: 120 LFF (array plus 9 expansion enclosures)
- Maximum raw capacity per 2U LFF enclosure: 288 TB
- Pools: 2, with 4 PiB addressable per pool
- Supported LFF HDD (7.2K) capacities: 8 TB, 12 TB, 16 TB, 20 TB, 24 TB
- Supported LFF SSD capacity: 1.92 TB
- Power: 2 redundant supplies, max 580 W (C14)

FAQs

Q: What host connectivity does the P89067-B25 provide?
A: It has two controllers with four 32Gb Fibre Channel ports each, giving 8 host ports per array.

Q: How many drives can this array support?
A: The 2U enclosure holds 12 LFF drives, and with up to nine expansion enclosures the array supports a maximum of 120 LFF drives.

Q: Which RAID levels are supported?
A: RAID 0, 1, 5, 6 and 10.

Q: Can I mix LFF and SFF enclosures?
A: Yes, LFF and SFF array and expansion enclosure mixing is supported on the MSA Gen7 platform.

Q: Does it support both HDDs and SSDs?
A: Yes. The array supports 7.2K LFF HDDs from 8 TB to 24 TB and 1.92 TB LFF SSDs, allowing hybrid or all-flash configurations.

Q: Is this array suited to virtualised environments?
A: Yes. It provides shared block storage over Fibre Channel and is certified for HPE Morpheus VM Essentials Software.
