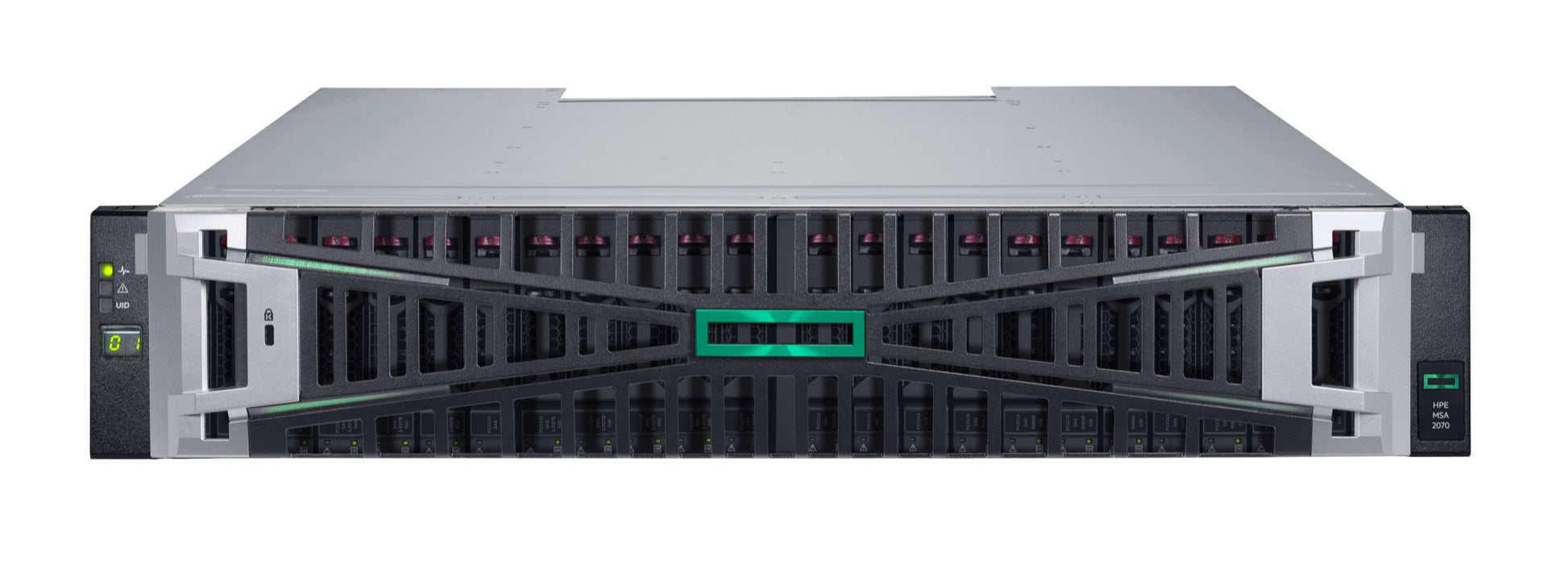

HPE P89066-B25 | MSA 2070 SFF Storage Array, 24-Bay, 2x16Gb FC, Controller Only

Authorised HPE Partner

SKU:P89066-B25

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE MSA 2070 SFF 16Gb Fibre Channel storage array is a 2U, 24-bay small form factor block storage system from the MSA Gen7 family. This controller-only configuration includes dual controllers with four 16Gb FC host ports each (eight per array) and is supplied without drives or transceivers, so you can populate it with the SFF SSDs or 10K HDDs that suit your workload.

The array supports RAID NRAID/0, 1, 5, 6, 10 and MSA-DP+, with 48 GB of data cache and system memory per array. It scales through up to nine 12Gb SAS expansion drive enclosures, reaching 240 SFF drives and 7.37 PB raw capacity, and includes automated tiering, thin provisioning, snapshots and volume copy for entry-level SAN and virtualisation deployments.

Features

- Dual controller active/active (dual pool) design, configurable as active/passive
- RAID offload ASIC and processor for efficient parity handling
- Battery-free cache backup using super capacitors and MMC
- Automated tiering across Performance, Standard and Archive tiers
- SSD read cache extension to accelerate hot data
- Thin provisioning, space reclamation and thin rebuild
- Snapshots (up to 512), volume copy and remote snaps for data protection
- 12Gb SAS expansion ports for scaling capacity with additional enclosures
- Mixed LFF and SFF array and enclosure support
- Customer self-installable, repairable and upgradeable
- HPE MSA Health Check analytics
- Optional HPE Bezel Lock Kit

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U small form factor array with 24 drive bays
- 2 controllers, 4 x 16Gb FC host ports per controller (8 per array)
- Block access type
- 48 GB data (read/write) cache plus system memory per array
- Max read cache per array: 8.34 TB (7.6 TiB)
- Expansion: 0 to 9 drive enclosures over 12Gb SAS
- Maximum 240 SFF drives (HDD or SSD) per array including expansion
- Maximum raw capacity per array: 7.37 PB (all SFF)
- RAID levels: NRAID/RAID 0 (read cache only), 1, 5, 6, 10, MSA-DP+
- Supported SFF SSDs: 1.92 TB, 3.84 TB, 7.68 TB
- Supported SFF 10K HDDs: 1.2 TB, 1.8 TB, 2.4 TB
- Self-encrypting SFF SSDs: 1.92 TB, 3.84 TB, 15.36 TB, 30.72 TB
- Maximum 512 volumes, 512 hosts and 1024 initiators
- Energy Star and USGv6 certified
- Supplied controller only, without drives or transceivers

FAQs

Q: Does the P89066-B25 include drives?
A: No. This is the controller-only configuration, supplied without drives or transceivers. You add compatible MSA Gen6/Gen7 SFF drive carriers with SSDs or 10K HDDs, plus the FC transceivers or cables you need.

Q: How many host ports does this array have?
A: It has two controllers with four 16Gb Fibre Channel host ports each, giving eight 16Gb FC host ports per array.

Q: Can I expand the capacity later?
A: Yes. The array supports up to nine expansion drive enclosures over 12Gb SAS, for up to 240 SFF drives and 7.37 PB raw capacity per array. LFF and SFF enclosures can be mixed.

Q: Which RAID levels are supported?
A: NRAID/RAID 0 (read cache only), RAID 1, 5, 6, 10 and MSA-DP+.

Q: Can it run with a single controller?
A: No. Single-controller configurations are not supported. Single-controller operation occurs only during a controller failover.

Q: What data services are included?
A: Automated tiering, SSD read cache extension, thin provisioning, snapshots, volume copy and remote snaps are supported on the array.
