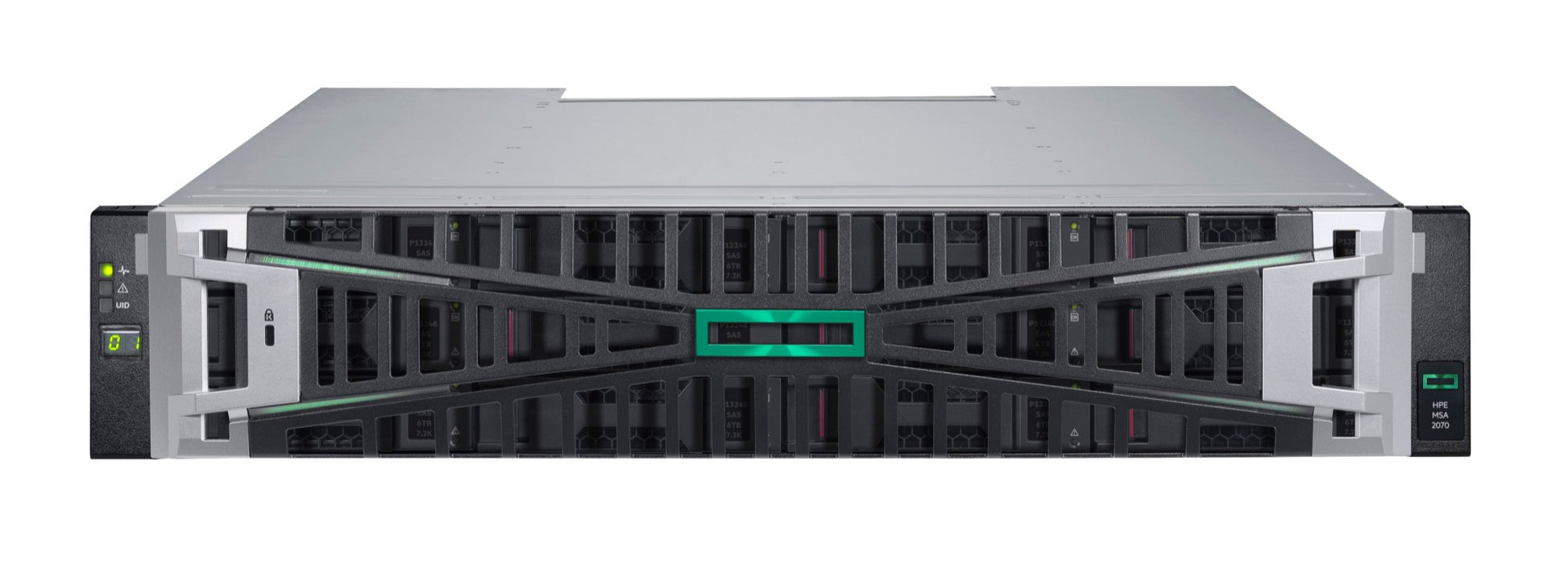

HPE P89065-B25 | MSA 2070 LFF Storage Array, 12-Bay, 2x 16Gb FC 4-Port, No Drives

Authorised HPE Partner

SKU:P89065-B25

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MSA 2070 is a 2U large form factor shared storage array with 12 x 3.5" SAS-3 drive bays and two controllers, each with four 16Gb Fibre Channel ports, giving 8 FC host ports in total. This configuration is supplied without drives, so you can populate the bays to suit your capacity and performance requirements in a 16Gb FC SAN.

The array is part of the 7th-generation MSA family, with MSA-DP+ advanced RAID, redundant hot-plug 580W power supplies and management through the MSA Storage Management Utility (SMU v4). It can be expanded with up to nine MSA 2U LFF or SFF expansion enclosures to scale beyond 7 PB per array, and supports Windows Server, VMware vSphere, Red Hat and SUSE SLES environments.

Features

- Up to 2x more random IOPS and 30% more sequential bandwidth than MSA Gen6
- Scales beyond 7 PB per array with up to nine expansion enclosures
- Dual-controller design with redundant hot-plug power supplies
- Non-disruptive online firmware updates for controllers and drive media
- Updated SMU v4 with simple access to the MSA Health Check Tool
- MSA-DP+ advanced RAID for flexible capacity and protection

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U rack-mount
- Drive bays: 12 x LFF 3.5" (SAS-3)
- Drives installed: none
- Controllers: 2 x 4-port 16Gb Fibre Channel
- Host interfaces: 8 x 16Gb Fibre Channel in total
- Power supplies: 2 x 580W hot-plug, redundant
- Power connector: C14
- Expansion: up to 9 x MSA 2U LFF 12-drive and/or SFF 24-drive enclosures
- RAID: HPE MSA-DP+
- Management: MSA Storage Management Utility (SMU v4), MSA Health Check Tool
- Supported OS: Windows Server, VMware vSphere, Red Hat, SUSE SLES
- Dimensions (H x W x D): 8.9 x 48.3 x 50.8 cm
- In the box: MSA 2070 SAN storage system, 2 x 1.5 m C14 power cords, rack-mount kit

FAQs

Q: Does the P89065-B25 include any drives?
A: No. This configuration ships with no drives installed. It has 12 LFF 3.5" SAS-3 bays that you populate separately.

Q: What host connectivity does this array provide?
A: It has two controllers, each with four 16Gb Fibre Channel ports, giving 8 x 16Gb FC host ports for connection to a Fibre Channel SAN.

Q: Can the array be expanded?
A: Yes. It supports up to nine MSA 2U expansion enclosures, in LFF 12-drive and/or SFF 24-drive form, and can scale beyond 7 PB per array.

Q: Is power redundancy built in?
A: Yes. The array includes two 580W hot-plug redundant power supplies with C14 inlets, and two 1.5 m C14 power cords are supplied.

Q: Which operating systems are supported?
A: The MSA 2070 supports Windows Server, VMware vSphere, Red Hat and SUSE SLES host environments.

Q: Does it include a rack-mount kit?
A: Yes. The box includes a rack-mount kit for installing the 2U enclosure in a standard rack, along with the power cords.
