HPE P89064-B25 | MSA 2060 SFF 24-Bay 12Gb SAS Storage Array, 2 Controllers

Authorised HPE Partner

SKU:P89064-B25

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

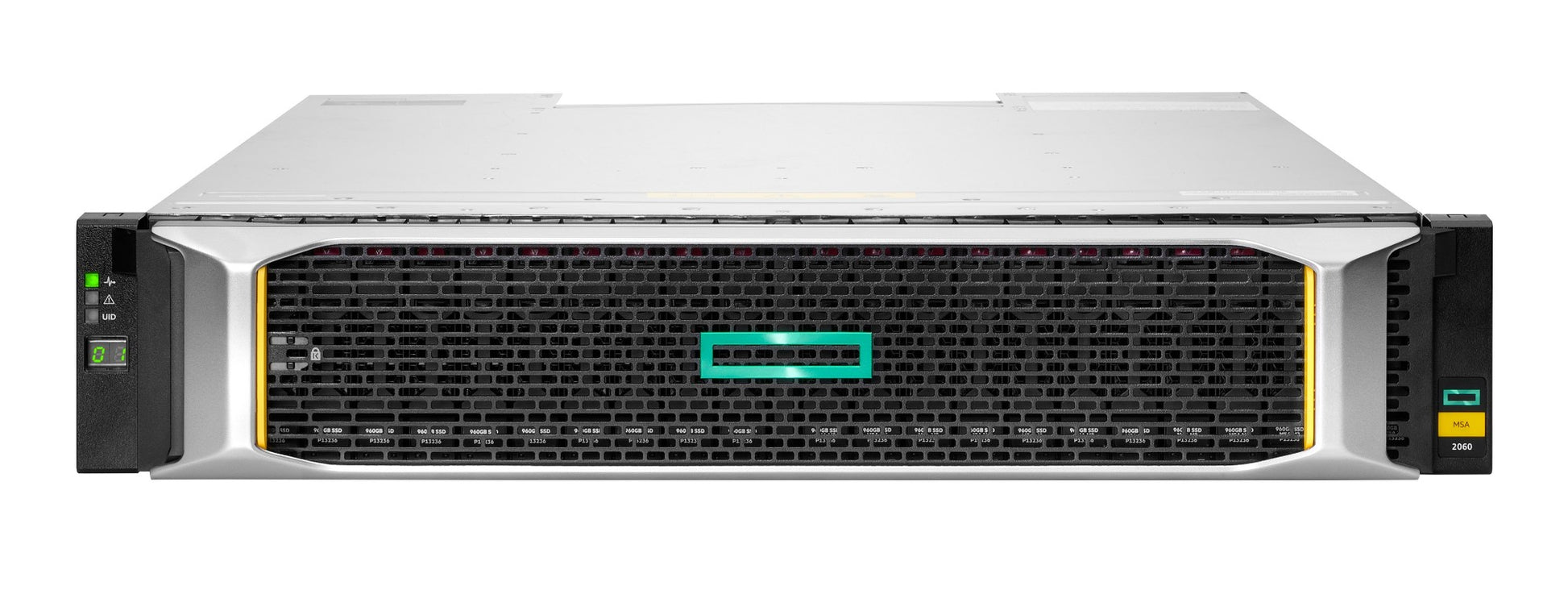

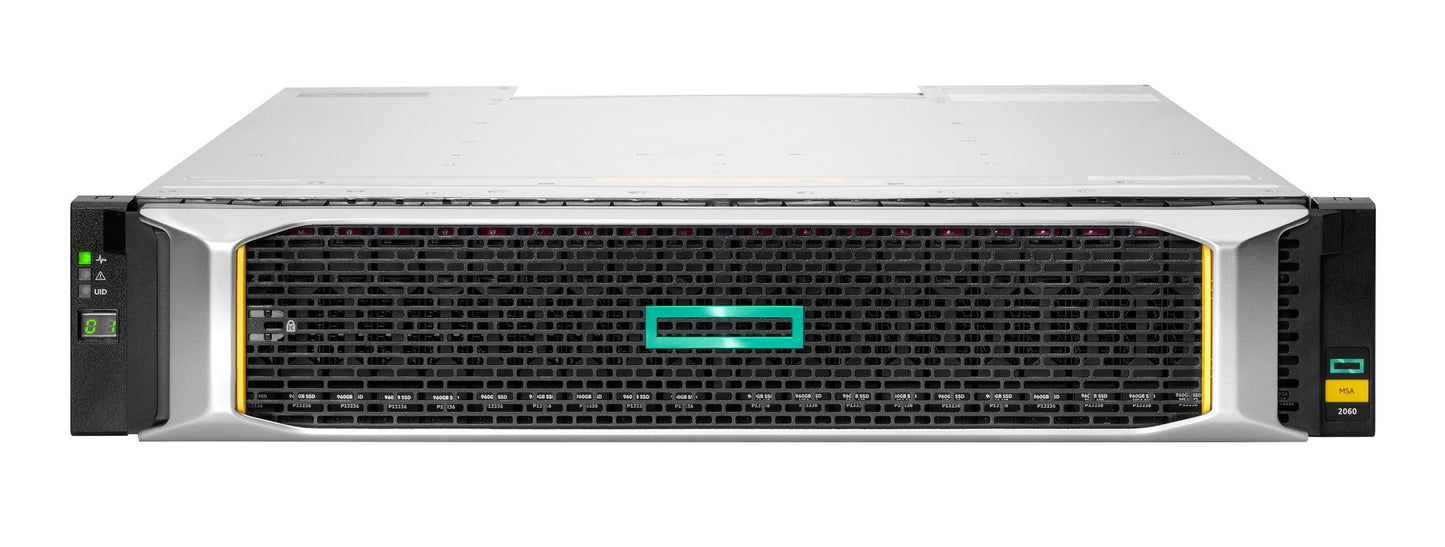

The HPE MSA 2060 SFF 12Gb SAS storage array is a 2U, 24-bay small form factor block storage system with two hot-swappable active/active controllers, each providing 4 x 12Gb SAS host ports (8 per array). It is supplied without drives, so you can populate it with the SFF HDDs or SSDs that suit your workload, making it a practical entry point for small and remote-office environments.

The array carries 24GB of system cache with battery-free supercapacitor cache protection, and scales through up to 9 expansion drive enclosures to a maximum of 240 SFF drives per array. Flash-ready hybrid features include tiering, snapshots, volume copy, remote snaps and thin provisioning, and the system is customer self-installable, self-repairable and self-upgradeable.

Features

- Next-generation RAID offload ASIC and processor
- Dual hot-swappable active/active controllers for resilience
- Flash-ready hybrid storage supporting both HDD and SSD media
- Thin Provisioning, Space Reclamation and Thin Rebuild
- Performance, Standard and Archive tiering
- Snapshots, Volume Copy and Remote Snaps for data protection
- Raw capacity scalable up to 7.37 PB
- Customer self-installable, self-repairable and self-upgradeable
- Health check analytics

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U rack form factor with 24 x SFF drive bays (drives not included)
- 2 x hot-swappable active/active controllers
- 4 x 12Gb SAS host ports per controller, 8 per array
- 12Gb SAS drive expansion interface
- 24GB system cache with battery-free supercapacitor and MMC cache backup
- Up to 9 expansion drive enclosures
- Up to 240 SFF HDDs or 240 SFF SSDs per array
- Supports 512 volumes, 512 snapshots, 512 hosts and 1024 initiators
- LFF and SFF array and enclosure mixing supported
- Energy Star certified
- Height: 8.9 cm (3.5 in)

FAQs

Q: Does the HPE P89064-B25 MSA 2060 include drives?
A: No. This SKU is the SFF 24-bay array with two 12Gb SAS controllers and no drives. Compatible SFF HDDs or SSDs must be purchased separately.

Q: What host connectivity does this MSA 2060 provide?
A: Each of the two controllers provides 4 x 12Gb SAS host ports, giving 8 host ports per array for direct-attached SAS connections.

Q: How much can this array be expanded?
A: It supports up to 9 expansion drive enclosures over 12Gb SAS, reaching a maximum of 240 SFF HDDs or 240 SFF SSDs per array.

Q: Can I mix SSDs and hard drives in the same array?
A: Yes. The MSA 2060 is flash-ready and supports both HDD and SSD media, with tiering across Performance, Standard and Archive levels.

Q: How is cache protected during a power loss?
A: The array has 24GB of system cache and uses battery-free cache backup based on supercapacitors and MMC, so there are no batteries to replace.

Q: Can I mix SFF and LFF enclosures with this array?
A: Yes. LFF and SFF array and drive enclosure mixing is supported, so you can expand with either form factor as capacity needs change.
