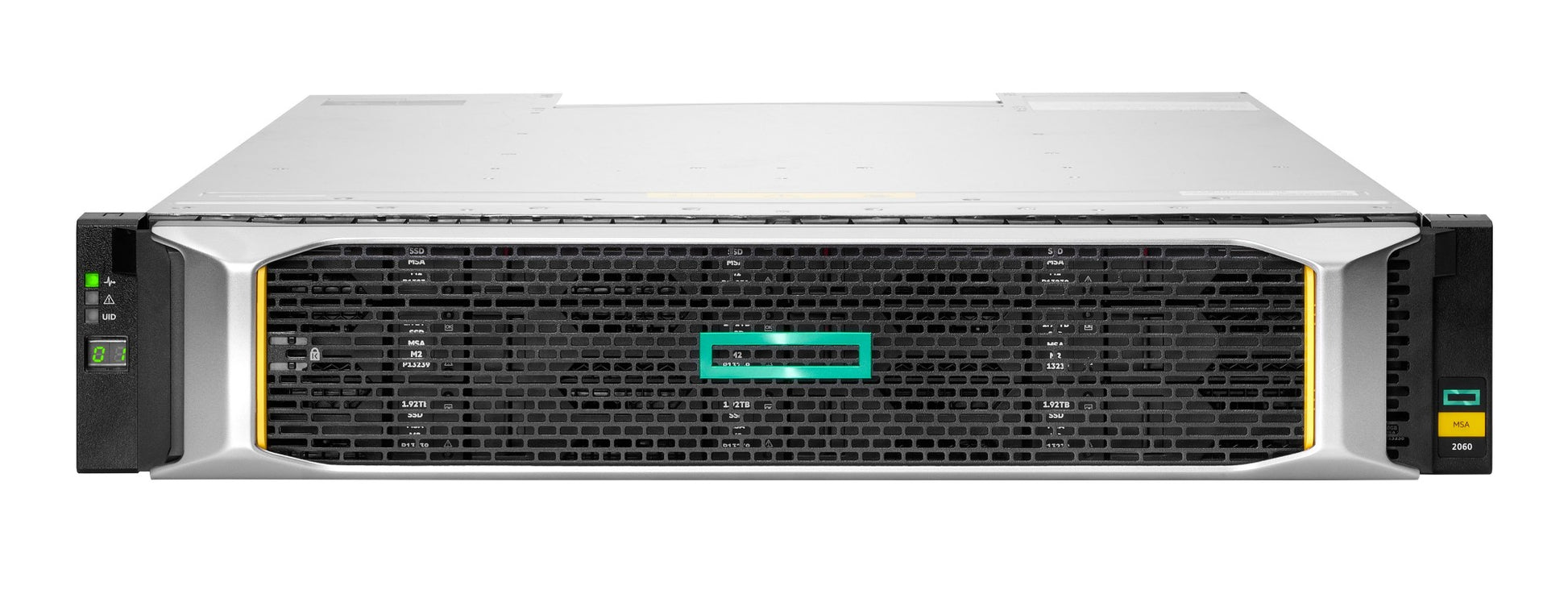

HPE P89063-B25 | MSA 2060 12-Bay LFF SAS Storage Array, 2x 12Gb 4-Port

Authorised HPE Partner

SKU:P89063-B25

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MSA 2060 is a 2U large form factor (LFF) block storage array with two active/active 12Gb SAS controllers, each providing four host ports, and twelve open 3.5in drive bays. This SKU ships without drives, letting you populate it with the HDDs or SSDs that suit your workload and capacity plan.

The array supports virtual storage pools with automated tiering, thin provisioning and snapshots, and can be expanded with up to nine MSA 2060 drive enclosures, mixing LFF and SFF. Dual 580W redundant power supplies and battery-free super capacitor cache backup support reliable operation in SMB and branch office deployments.

Features

- Dual hot-swappable active/active controllers with auto-negotiation
- Next-generation RAID offload ASIC and processor
- Virtual storage with up to two pools and automated tiering (Performance, Standard, Archive)
- Thin provisioning, space reclamation and thin rebuild
- Snapshots, volume copy and remote snaps
- Battery-free cache backup using super capacitors with flash
- 12G SAS midplane with next-generation drive carriers
- Health check analytics
- Out-of-band management with Storage Management Utility (SMU) v4 and CLI
- Modular architecture supporting a mix of LFF and SFF expansion enclosures
- Energy Star certified
- Optional Advanced Data Services Suite

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U rack form factor, 12 x LFF (3.5in) drive bays
- 2 x MSA 2060 12Gb SAS controllers, dual active/active
- 8 x 12Gb SAS host ports per array (4 per controller)
- 24GB data cache plus system memory per array
- Expandable with up to 9 drive enclosures, LFF and SFF mixing supported
- Up to 120 LFF or 240 SFF drives per array
- Maximum raw capacity of 216TB per LFF enclosure and 2.16PB per array
- RAID 0 (read cache only), 1, 5, 6, 10 and MSA-DP+
- Up to 512 volumes, 512 snapshots and 512 hosts
- Two 580W redundant power supplies
- 12Gb SAS drive enclosure interface
- Block access type, supplied without drives

FAQs

Q: Does the P89063-B25 include any drives?
A: No. This configuration ships with twelve empty LFF drive bays, so you supply and install your own compatible 3.5in drives.

Q: How many host ports does this array provide?
A: It has two 12Gb SAS controllers with four host ports each, giving eight 12Gb SAS host ports in total.

Q: Can I expand the array later?
A: Yes. It supports up to nine MSA 2060 drive enclosures, and LFF and SFF enclosures can be mixed, for up to 120 LFF or 240 SFF drives per array.

Q: Which RAID levels are supported?
A: RAID 1, 5, 6, 10 and MSA-DP+ are supported for data volumes. RAID 0 is available for read cache only.

Q: How is cache protected during a power loss?
A: The array uses battery-free cache backup with super capacitors and flash, so there is no battery to maintain or replace.

Q: How is the array managed?
A: Management is out-of-band through the Storage Management Utility (SMU) v4 web interface or the command line interface.
