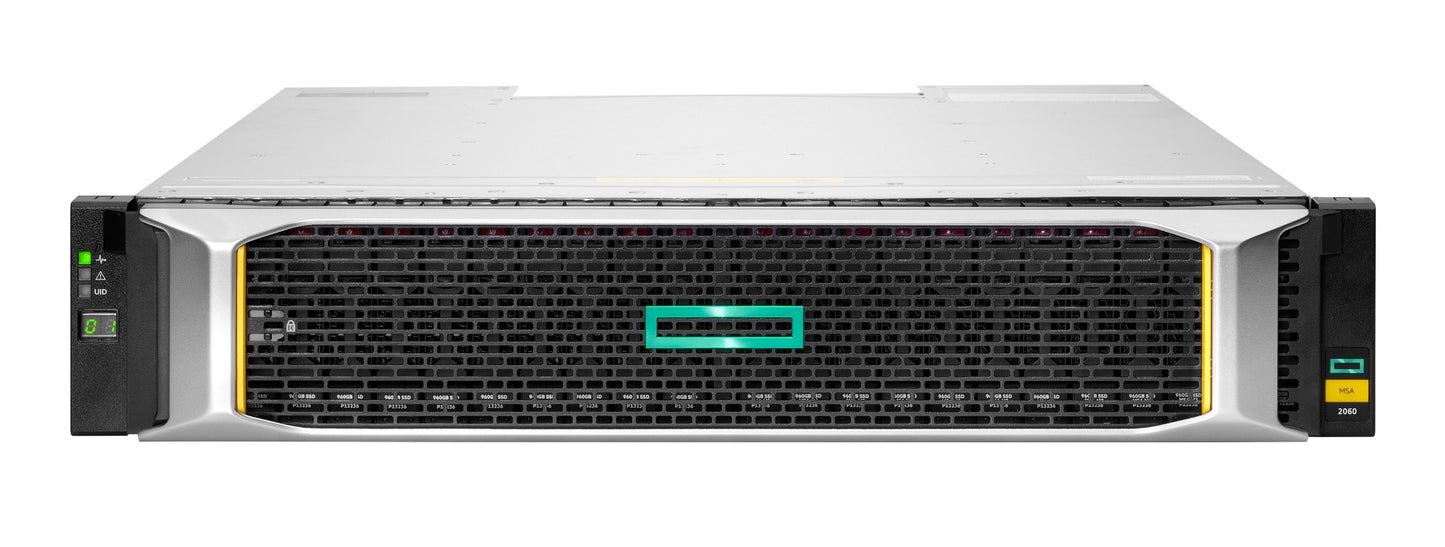

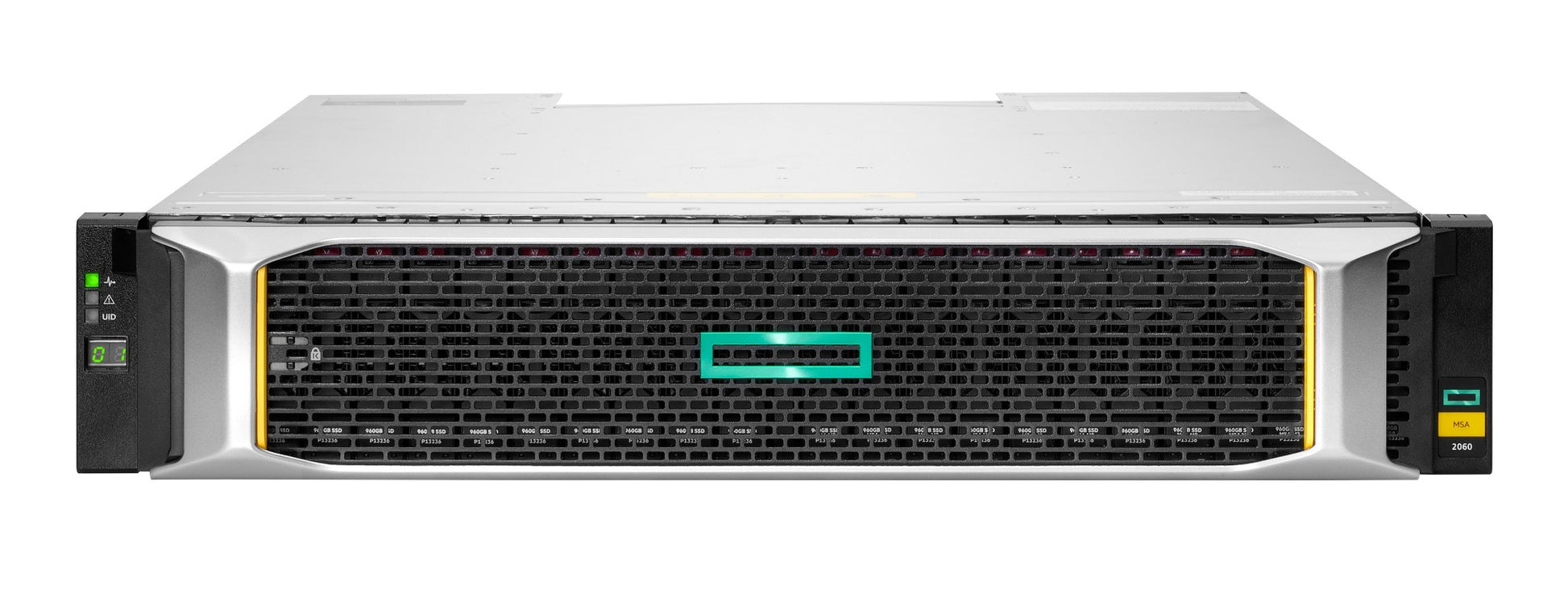

HPE P89062-B25 | MSA 2060 SFF iSCSI Storage Array, 10/25GbE, 4-Port

Authorised HPE Partner

SKU:P89062-B25

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE MSA 2060 SFF iSCSI storage array delivers block storage in a 2U small form factor chassis with 24 x 2.5-inch drive bays and two active/active controllers, each with four 10/25GbE iSCSI host ports (eight per array). It suits SMB and edge environments that need dependable shared storage over standard Ethernet.

The array supports up to 240 SFF drives with expansion enclosures, up to 9 additional enclosures mixing LFF and SFF, and up to 7.37PB raw capacity. Two 580W redundant power supplies, supercapacitor-based cache backup and virtualised snapshots help protect data and keep the system available.

Features

- Dual hot-swappable active/active controllers
- Next-generation RAID offload ASIC and processor
- Battery-free cache backup using supercapacitors and compact flash
- Virtualised snapshot technology for data protection and instant recovery
- Remote replication over Fibre Channel or iSCSI
- RAID 1, 5, 6, 10 and MSA-DP+ support
- Supports mixed LFF and SFF expansion enclosures
- Health check analytics
- Customer self-installable, repairable and upgradeable

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U SFF chassis, 24 x 2.5-inch drive bays
- 2 x controllers, 4 x 10/25GbE iSCSI host ports each (8 per array)
- Access type: Block
- 24GB data cache plus system memory per array
- Max read cache per array: 8TB
- 12Gb SAS expansion ports, up to 9 expansion enclosures
- Up to 240 SFF HDDs or SSDs per array
- Max raw capacity: 7.37PB (all SFF)
- Usable capacity per system: 1,885 TiB
- Two pools, 4 PiB addressable capacity per pool
- Max 512 volumes, 512 snapshots, 512 hosts, 1024 initiators
- 2 x 580W redundant power supplies
- Dimensions: 8.9 cm high, 44.5 cm wide (chassis only)
- Weight: 30 kg fully populated (SFF controller enclosure)
- Energy Star certified

FAQs

Q: What host connectivity does this MSA 2060 model use?
A: It has two controllers, each with four 10/25GbE iSCSI host ports, giving eight iSCSI host ports per array. iSCSI is supported over both IPv4 and IPv6.

Q: How many drives does it support?
A: The 2U chassis holds 24 x 2.5-inch SFF drives. With expansion enclosures the array scales to a maximum of 240 SFF drives, for up to 7.37PB raw capacity.

Q: Can I expand it with LFF enclosures?
A: Yes. The array supports up to 9 expansion enclosures over 12Gb SAS, and these can be LFF, SFF or a mix of both.

Q: Does it have redundant power and controllers?
A: Yes. It includes two hot-swappable active/active controllers and two 580W redundant power supplies.

Q: Which RAID levels are supported?
A: RAID 1, 5, 6 and 10 are supported, along with MSA-DP+.

Q: Does it support remote replication?
A: Yes. Remote replication is available over Fibre Channel or iSCSI.
