HPE

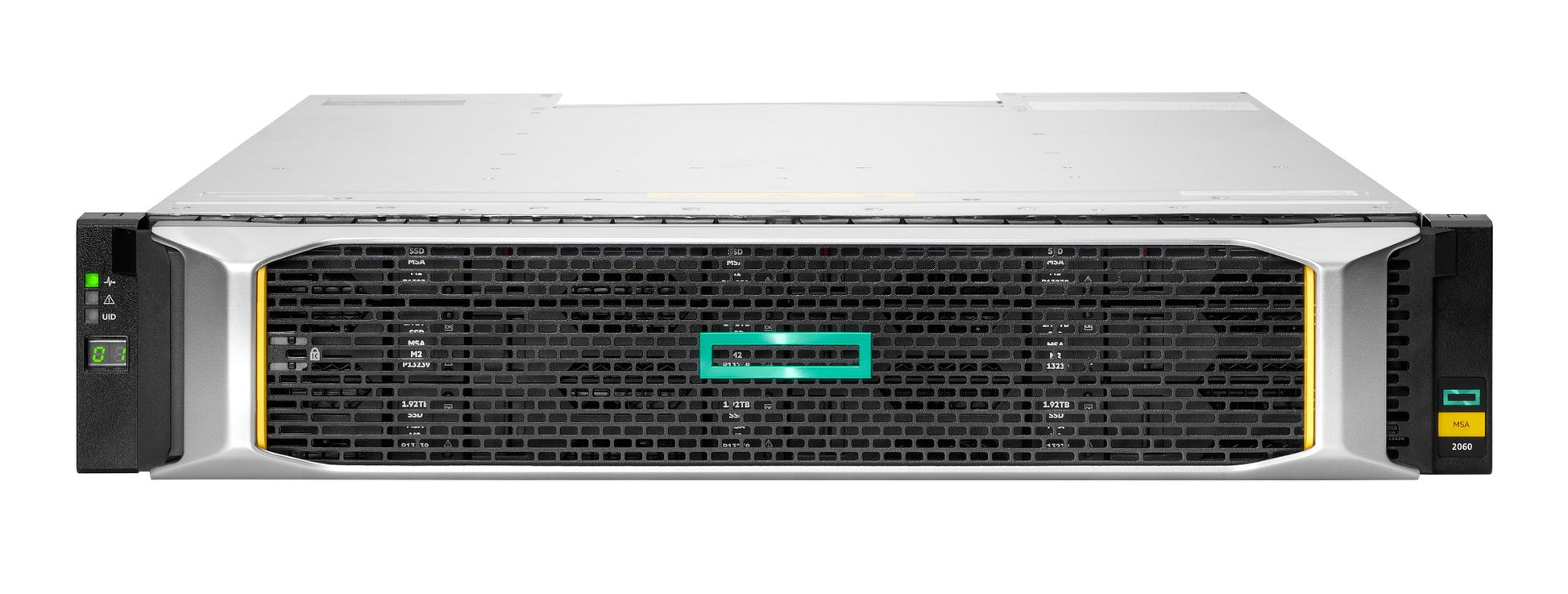

HPE P89061-B25 | MSA 2060 LFF 2U Storage Array, 10/25GbE iSCSI, 12-Bay, No Drives

HPE P89061-B25 | MSA 2060 LFF 2U Storage Array, 10/25GbE iSCSI, 12-Bay, No Drives

P89061-B25

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The HPE MSA 2060 LFF Storage Array is a flash-ready hybrid 2U rack-mount system built for affordable application acceleration in small and remote office environments. Equipped with dual active/active 10/25GbE iSCSI 4-port controllers (8 host ports total), 12 open LFF (3.5-inch) drive bays, and support for up to 395,000 IOPS, this base chassis ships without drives — giving you the flexibility to populate with SSD, Enterprise SAS, or Midline SAS drives to suit your workload. Dual redundant 580W hot-swap power supplies and battery-free cache backup via supercapacitors ensure high availability from day one.

The MSA 2060 scales to a maximum raw capacity of up to 2.88PB (LFF) or 7.37PB (SFF) through up to nine additional expansion enclosures, and supports RAID levels 0, 1, 5, 6, 10, and MSA-DP+. Advanced Data Services including automated tiering, thin provisioning, snapshots, and iSCSI-based remote replication are available via optional HPE ADS licensing. Note: SFP transceivers are sold separately. In stock and ready to ship from iptrading.com.au — order now for fast dispatch.

Features

- Flash-ready hybrid design supports SSD, Enterprise SAS, and Midline SAS drives in the same enclosure
- Dual active/active hot-swappable controllers for continuous availability; also supports active/passive (single pool) mode
- Non-disruptive online controller firmware upgrades — no downtime required
- Automated storage tiering via HPE MSA Advanced Data Services (ADS) optional license
- Virtualized snapshots for instant data recovery and space-efficient data protection
- Remote replication over iSCSI for cost-effective disaster recovery
- Self-encrypting drive (SED) support with local key management
- Battery-free cache protection using supercapacitors and compact flash — no battery replacement required
- 10GbE and 25GbE SFP transceivers both supported via auto-negotiation in the same array
- Thin provisioning and storage pool spanning across multiple enclosures
- Next-generation RAID offload ASIC for improved RAID performance and rebuild speed
- Supports up to 512 volumes and 512 snapshots per system
- Simple unified management via HPE MSA Storage Management Utility
- ENERGY STAR certified for energy-efficient operation

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form Factor: 2U Rack-Mount, LFF (3.5-inch) Chassis
- Drive Bays: 12 x Open LFF Bays (no drives included)
- Controllers: 2 x MSA 2060 10/25GbE iSCSI 4-port Controllers (dual, hot-swappable, active/active)
- Host Interface: 10/25GbE iSCSI via SFP+ (SFPs not included, sold separately)
- Expansion Port: 12Gb SAS per controller
- Total Host Ports: 8 (4 per controller)
- Max Drive Expansion: Up to 9 additional LFF or SFF enclosures
- Max Raw Capacity: 2.88PB (LFF) / 7.37PB (SFF)
- Performance: Up to 395,000 IOPS
- RAID Levels: 0, 1, 5, 6, 10, MSA-DP+ (RAID 0 for Read Cache only)
- Maximum Volumes: 512
- Maximum Snapshots: 512
- Maximum LUN Size: 140TB
- Cache Protection: Battery-free (supercapacitors + compact flash)
- Power Supplies: 2 x 580W Redundant Hot-Swap (94% efficient, EU Lot9 compliant)
- Drive Support: SSD, Enterprise SAS HDD, Midline SAS HDD
- Certifications: ENERGY STAR

FAQs

Q: Does the HPE MSA 2060 LFF (P89061-B25) come with drives included?
A: No — P89061-B25 is the base chassis configuration and ships without drives. The 12 LFF (3.5-inch) bays are open, allowing you to populate with HPE-certified SSD, Enterprise SAS, or Midline SAS drives based on your capacity and performance requirements.

Q: Are SFP transceivers included with the 10/25GbE iSCSI controllers?
A: No. The iSCSI controllers use SFP+ ports, but SFP transceivers are sold separately. Both 10GbE and 25GbE SFP transceivers are supported within the same array via auto-negotiation, giving you flexibility in host connectivity.

Q: How many host ports does the MSA 2060 provide and what failover model does it use?
A: The MSA 2060 has two controllers, each with four 10/25GbE iSCSI ports, providing 8 host ports in total. The controllers operate in an active/active dual pool design by default, delivering high availability. They can also be configured in active/passive (single pool) mode.

Q: Can the HPE MSA 2060 LFF be expanded beyond its 12 base drive bays?
A: Yes. The MSA 2060 supports up to nine additional expansion enclosures via the 12Gb SAS expansion port on each controller. This allows scaling up to 120 LFF drives total, for a maximum raw capacity of 2.88PB in an LFF configuration, or up to 7.37PB using SFF expansion enclosures.

Q: What advanced data services are available on the MSA 2060?
A: With the optional HPE MSA Advanced Data Services (ADS) license, the MSA 2060 gains automated storage tiering, thin provisioning, remote snapshot replication over iSCSI, and enhanced volume management. These features are not included by default but can be activated post-purchase.

Q: Can I purchase the HPE MSA 2060 P89061-B25 in Australia and how quickly can it ship?
A: Yes. IP Trading Australia stocks the HPE MSA 2060 LFF Storage Array (P89061-B25) and can ship promptly to businesses across Australia. Visit iptrading.com.au to order online or contact our team for volume pricing, compatibility advice, and drive configuration assistance.
