HPE P89060-B25 | MSA 2060 SFF Storage Array, 2x 16Gb FC 4-Port Controllers

Authorised HPE Partner

SKU:P89060-B25

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

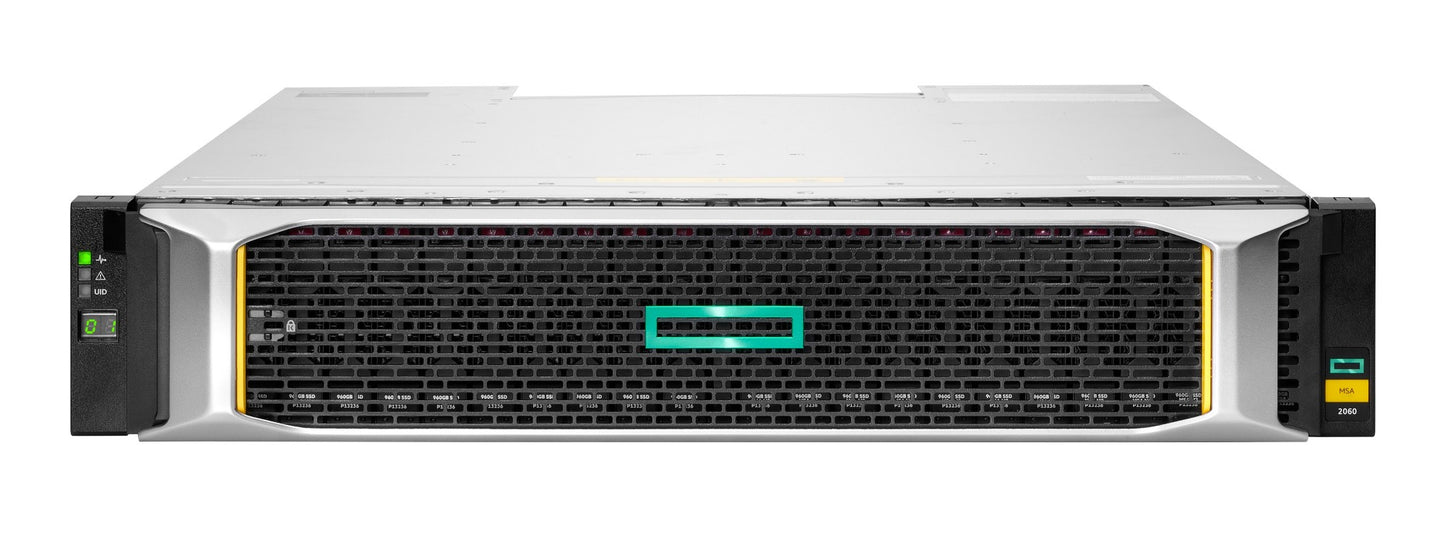

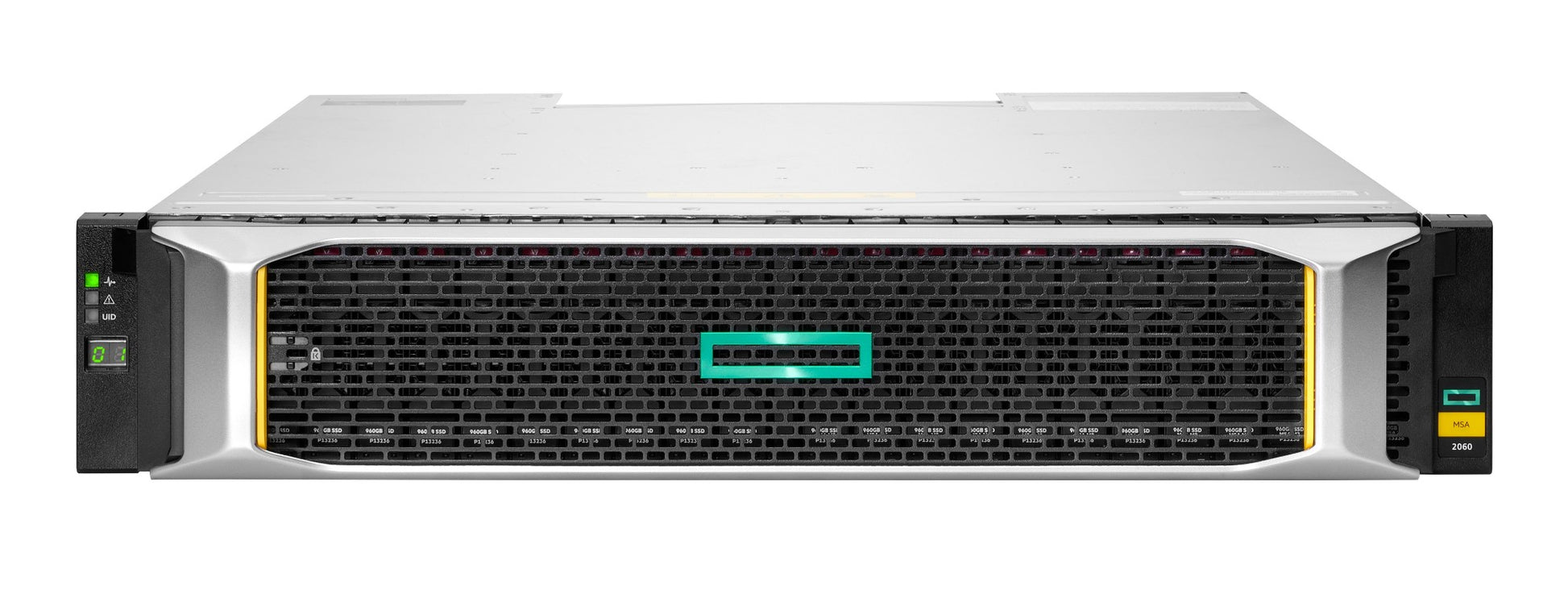

The MSA 2060 SFF Storage Array is a 2U block storage SAN array with 24 x 2.5-inch drive bays and two active/active controllers, each providing four 16Gb Fibre Channel host ports. This configuration gives eight host ports per array for small to mid-sized Fibre Channel SAN environments that need dependable shared storage with SFF drive density.

The array pairs 24GB of system cache with battery-free cache backup, redundant 580W power supplies and 12Gb SAS expansion ports. It scales to 240 SFF drives (HDD or SSD) and up to 7.37PB raw capacity using up to nine expansion enclosures, and it supports mixed LFF and SFF enclosures. Thin provisioning, snapshots, automated tiering and remote replication over Fibre Channel or iSCSI round out the data services.

Features

- Dual hot-swappable active/active controllers
- Next-generation RAID offload ASIC and processor
- Automated tiering v2.0
- SSD read cache extension
- Thin provisioning and Volume Copy
- Snapshots (64 standard, up to 512 with optional licence)
- Remote replication over Fibre Channel or iSCSI
- Auto-negotiating host port speeds
- Supports mixed LFF and SFF expansion enclosures
- Customer self-installable, self-repairable and self-upgradeable
- Health Check analytics

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U SFF chassis with 24 x 2.5-inch drive bays
- 2 x controllers, each with 4 x 16Gb Fibre Channel host ports (8 host ports per array)
- FC host connectivity: 8/16Gb
- 24GB system cache per array
- Cache backup: battery-free, super capacitors and MMC
- 2 x 580W redundant power supplies
- Expansion ports: 12Gb SAS
- Up to 240 SFF drives (HDD or SSD) per array
- Up to 7.37PB raw capacity (all SFF) with a maximum of 9 expansion enclosures
- Up to 395,000 IOPS (HPE-stated)
- Up to two pools, 4PiB addressable capacity per pool
- Maximum 512 volumes, 512 hosts and 1024 initiators
- Block access type
- Energy Star certified

FAQs

Q: How many host ports does this MSA 2060 provide?
A: It has two controllers with four 16Gb Fibre Channel host ports each, giving eight host ports per array. Host connectivity supports 8Gb and 16Gb Fibre Channel.

Q: Does the array include SFP transceivers?
A: The standard array otherwise ships without SFPs. A 4-pack of 16Gb FC SFPs may be included depending on the bundle, so confirm your SFP requirements before ordering.

Q: How much can this array be expanded?
A: It supports up to nine expansion enclosures (LFF and/or SFF) connected over 12Gb SAS, reaching up to 240 SFF drives and 7.37PB raw capacity in an all-SFF configuration.

Q: Can I mix HDDs and SSDs?
A: Yes. The array supports up to 240 SFF drives of either HDD or SSD type, and features such as automated tiering and SSD read cache extension take advantage of mixed media.

Q: Does it support snapshots and replication?
A: Yes. 64 snapshots are standard, with up to 512 per array available through an optional licence. Remote replication works over Fibre Channel or iSCSI.

Q: How is cache protected during a power loss?
A: The array uses battery-free cache backup based on super capacitors and MMC, and it has two 580W redundant power supplies.
