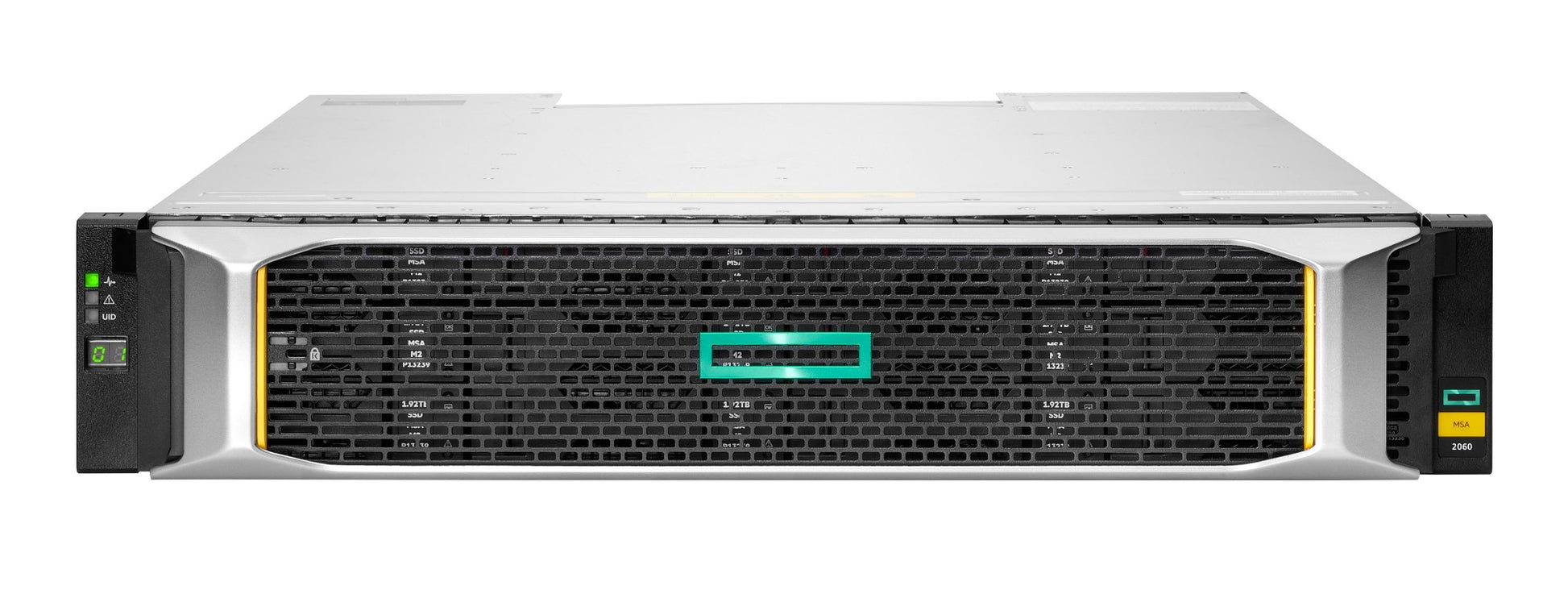

HPE P89059-B25 | MSA 2060 LFF Storage Array, 2x 16Gb FC 4-Port Controller

HPE P89059-B25 | MSA 2060 LFF Storage Array, 2x 16Gb FC 4-Port Controller

P89059-B25

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The HPE MSA 2060 LFF Storage Array is a dual-controller SAN solution designed for small to mid-sized enterprises requiring reliable, high-performance block storage. Equipped with two 16Gb Fibre Channel controllers each featuring 4 host ports, the MSA 2060 LFF delivers low-latency connectivity for demanding workloads including virtualisation, databases, and mixed enterprise applications. The large form factor (LFF) bay configuration accommodates high-capacity drives, making it well suited to cost-effective capacity-optimised deployments.

The MSA 2060 supports HPE's tiered storage capabilities, enabling automatic data placement across drive tiers to optimise performance and cost efficiency without manual intervention. With dual active-active controllers providing full redundancy and no single point of failure, this array is built for always-on environments. Buy today from iptrading.com.au — fast shipping and expert service across Australia.

Features

- Dual active-active 16Gb Fibre Channel controllers for high availability with no single point of failure
- 4 host ports per controller (8 total) for flexible SAN fabric connectivity
- Large Form Factor (LFF) drive bays support high-capacity SAS HDD and SSD drives
- Automated storage tiering moves data between SSD and HDD tiers to balance performance and cost
- Web-based HPE MSA Storage Manager simplifies provisioning, monitoring, and management
- SAS expansion port support for adding drive enclosures as capacity needs grow
- Redundant power supplies and cooling fans for fault-tolerant, always-on operation
- Broad hypervisor and OS compatibility including VMware, Hyper-V, and Linux
- Snapshot and replication capabilities for data protection and business continuity
- Compact 2U rack form factor for space-efficient data centre deployment

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form Factor: 2U Rack Mount
- Drive Bay Type: Large Form Factor (LFF)
- Controllers: 2x dual-port 16Gb Fibre Channel controllers
- Host Ports: 4 ports per controller (8 total, 2x per controller)
- Host Interface: 16Gb Fibre Channel
- Controller Configuration: Active-Active dual controller
- Supported Drive Types: SAS HDD, SAS SSD, SSD
- Expansion: Supports additional drive enclosures via SAS expansion
- Management: HPE MSA Storage Manager (web-based GUI)
- Redundancy: Dual controllers, redundant power supplies and fans

FAQs

Q: What host connectivity does the HPE MSA 2060 LFF support?
A: The HPE MSA 2060 P89059-B25 ships with two 16Gb Fibre Channel controllers, each providing 4 host ports, for a total of 8 FC host ports. This allows high-bandwidth, low-latency connectivity to SAN switches and servers in a Fibre Channel environment.

Q: What is the difference between LFF and SFF in the MSA 2060 range?
A: LFF (Large Form Factor) refers to 3.5-inch drive bays, which are suited to high-capacity spinning HDDs for cost-effective bulk storage. SFF (Small Form Factor) uses 2.5-inch bays, accommodating more drives per unit of capacity and enabling greater SSD density. Choose LFF when capacity per dollar is the priority.

Q: Can the HPE MSA 2060 be expanded with additional shelves?
A: Yes. The MSA 2060 supports HPE MSA expansion enclosures connected via SAS expansion ports, allowing additional LFF drive shelves to be added as storage requirements grow — without replacing the controller unit.

Q: Is the HPE MSA 2060 suitable for VMware or Hyper-V virtualisation environments?
A: Yes. The MSA 2060 is certified for use with VMware vSphere, Microsoft Hyper-V, and other leading hypervisors. Its dual active-active controllers and 16Gb FC connectivity provide the performance and redundancy required for virtualised workloads.

Q: Does the HPE MSA 2060 support automated storage tiering?
A: Yes. The MSA 2060 supports HPE's automated tiering feature (with the appropriate licence), which automatically moves frequently accessed data to faster SSD tiers and less active data to HDD tiers, optimising both performance and cost without manual data migration.

Q: Can I purchase the HPE MSA 2060 P89059-B25 in Australia from IP Trading?
A: Yes. IP Trading (iptrading.com.au) supplies HPE storage solutions including the MSA 2060 range to businesses across Australia. Contact our team for pricing, availability, and configuration advice tailored to your environment.
