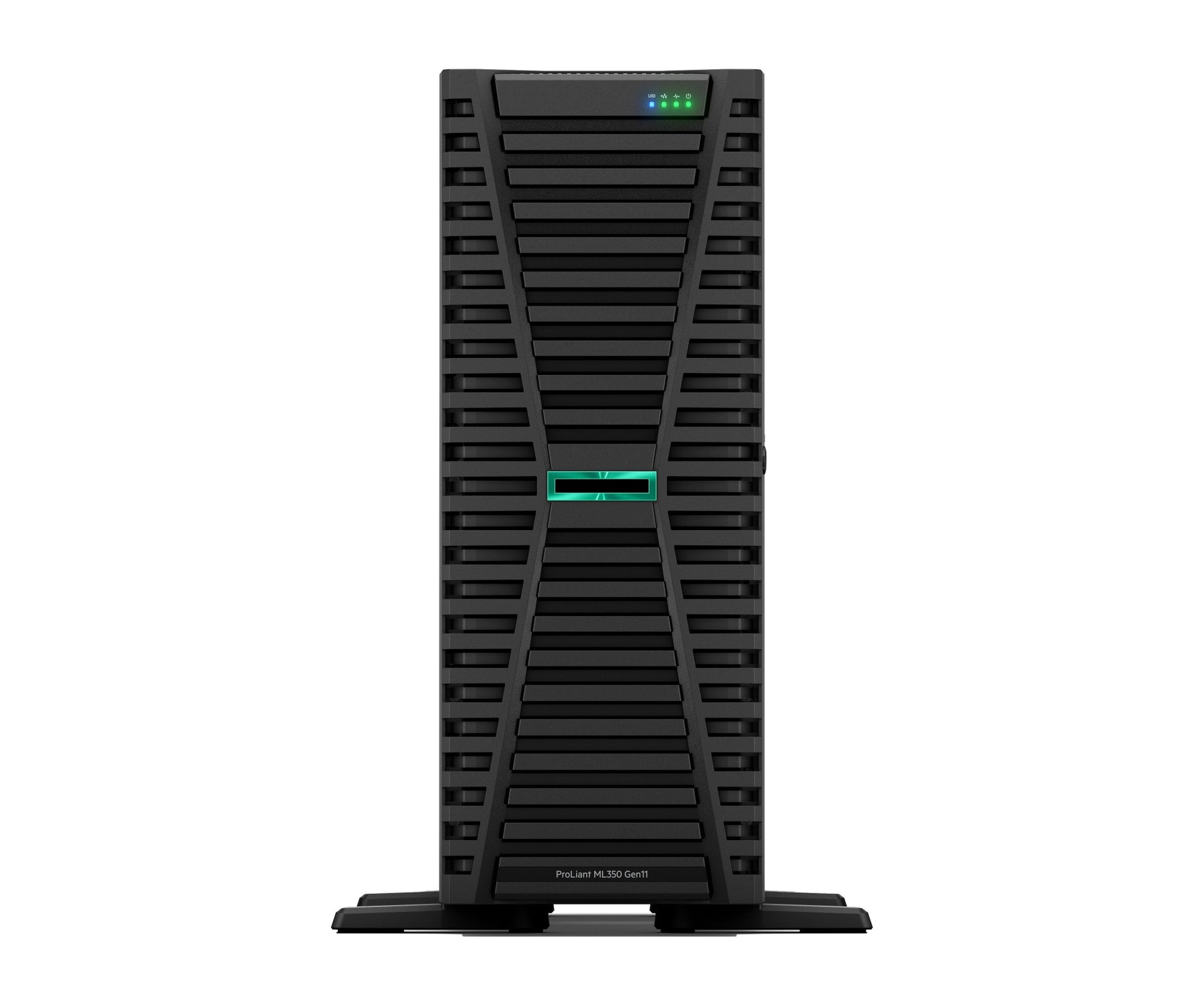

HPE P85591-375 | ProLiant ML350 Gen11 Tower Server, Xeon Silver 4509Y, 32GB, 2x480GB SSD

Authorised HPE Partner

SKU:P85591-375

In stock:2

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE ProLiant ML350 Gen11 tower server in this configuration pairs one Intel Xeon Silver 4509Y processor (8 cores, 2.6 GHz) with 32GB of DDR5 registered memory, an HPE MR408i-o RAID storage controller and 2 x 480GB SSDs. An 8 SFF drive bay chassis and dual 800W Flex Slot Platinum hot plug power supplies make it a ready-to-deploy 1P server for SMB, branch office and data centre workloads.

The 4U tower chassis supports a rack conversion option, so the same platform suits a server room or a rack deployment. The platform scales to two processors and up to 8 TB of DDR5 memory, uses a PCIe Gen5 expansion bus, and includes HPE iLO 6 for secure remote configuration, monitoring and updating, backed by the Silicon Root of Trust and Secure Start security model.

Features

- Tower chassis that can convert to a rack chassis with a tower-to-rack conversion kit for varied deployments
- DDR5 memory with higher bandwidth and lower power than previous generations
- PCIe Gen5 expansion bus for faster data transfer
- HPE iLO 6 included for secure remote configuration, monitoring and updating
- Supports a Tri-mode SFF backplane and the hot-pluggable RAID1-protected NS204i-u M.2 NVMe boot option
- Silicon Root of Trust and Secure Start security model
- Redundant hot-plug Flex Slot power supplies for improved uptime

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 4U tower with rack conversion capability
- Processor: 1 x Intel Xeon Silver 4509Y, 8 cores, 2.6 GHz (platform supports up to 2 processors)
- Memory: 1 x 32GB DDR5 registered (platform supports 32 DIMM slots, up to 8 TB, up to 4800 MT/s)
- Drive bays: 8 SFF chassis
- Installed storage: 2 x 480GB SSD
- Storage controller: HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM (requires Smart Storage Battery or Smart Hybrid Capacitor)
- Expansion bus: PCIe Gen5
- Power supply: 2 x 800W Flex Slot Platinum Hot Plug Low Halogen, 94% efficiency
- Management: HPE Integrated Lights-Out 6 (iLO 6)
- Boot and security: UEFI Secure Boot, TPM 2.0 support, NVMe boot support, HTTP/HTTPS boot, PXE boot for IPv6
- Dimensions, tower (H x D x W): 46.2 x 71.2 x 17.4 cm
- Weight: 24.73 kg (SFF minimum configuration) to 37.18 kg (SFF maximum configuration)
- Operating temperature: 10 to 35 C at sea level

FAQs

Q: What processor and memory are installed in this ML350 Gen11 configuration?
A: This model ships with one Intel Xeon Silver 4509Y (8 cores, 2.6 GHz) and one 32GB DDR5 registered DIMM.

Q: Can the processor and memory be expanded later?
A: Yes. The ML350 Gen11 platform supports up to two processors and up to 32 DIMM slots, reaching 8 TB of DDR5 memory at up to 4800 MT/s.

Q: What storage and RAID controller does it include?
A: It includes 2 x 480GB SSDs in an 8 SFF drive bay chassis, managed by an HPE MR408i-o Gen11 storage controller with 4GB cache. The controller requires a Smart Storage Battery or Smart Hybrid Capacitor.

Q: Can this tower server be mounted in a rack?
A: Yes. The 4U tower chassis supports a tower-to-rack conversion kit, so it can be deployed as a rack server.

Q: Does it have power redundancy?
A: Yes. It includes two 800W Flex Slot Platinum hot plug power supplies at 94% efficiency.

Q: How is the server managed remotely?
A: HPE iLO 6 is included, providing secure remote configuration, monitoring and firmware updating.
