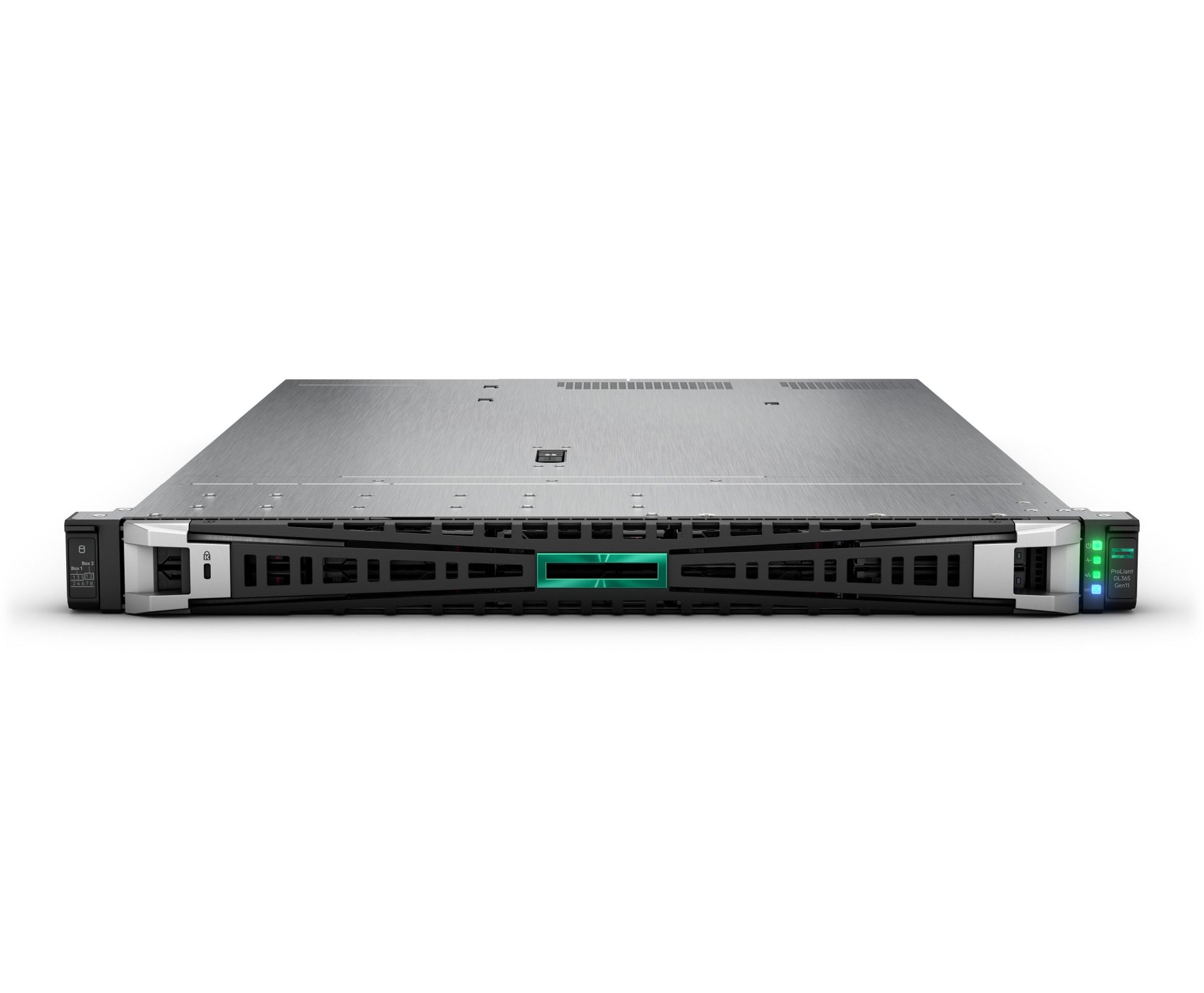

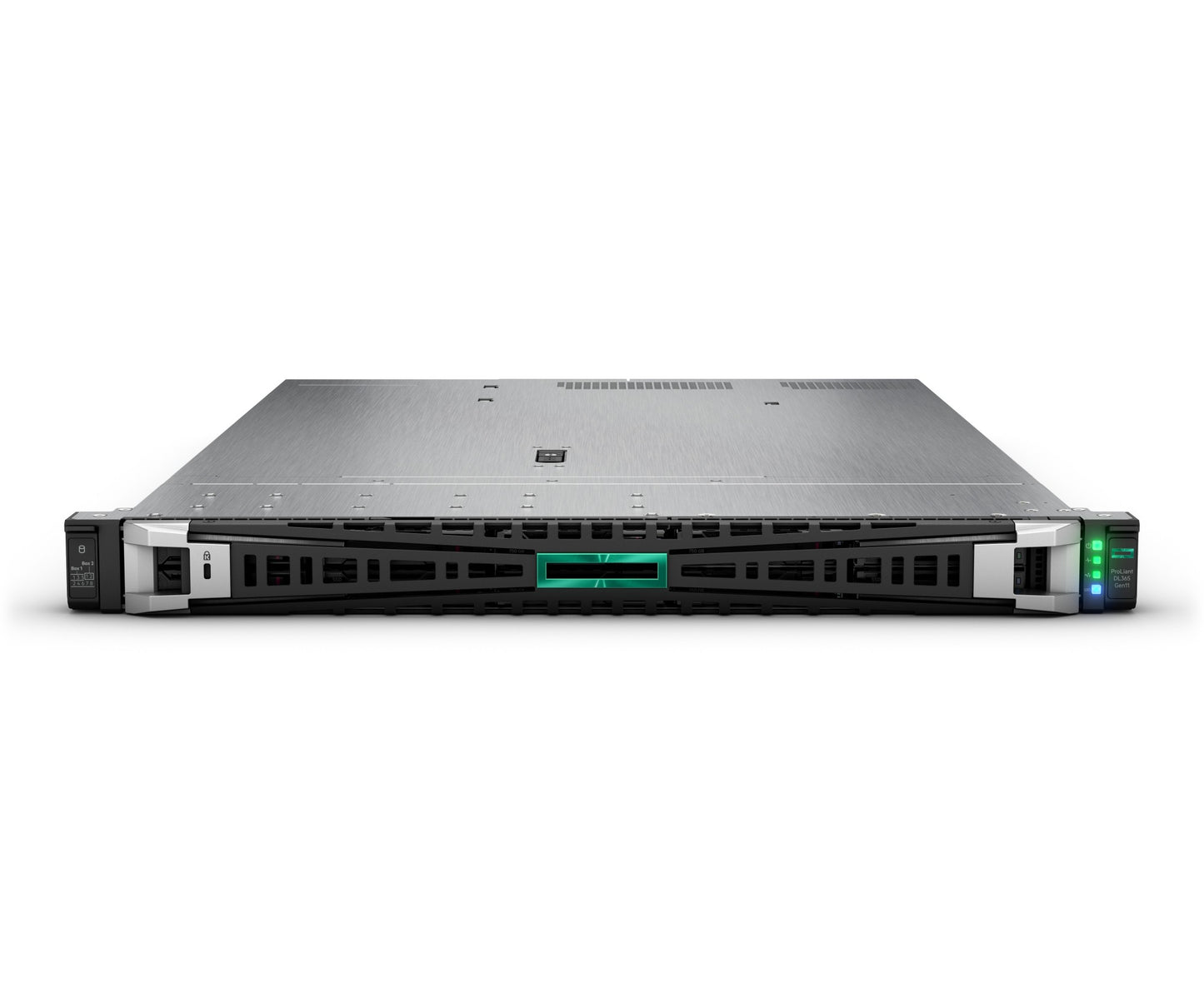

HPE P85587-375 | ProLiant DL365 Gen11 1U Rack Server, 2x EPYC 9135, 64GB, 4x960GB SSD

Authorised HPE Partner

SKU:P85587-375

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE ProLiant DL365 Gen11 is a 1U dual-socket rack server built on 5th Gen AMD EPYC processors, delivering high core density, DDR5 memory and PCIe Gen5 I/O for virtualisation, database and general data centre workloads. This pre-configured model ships with two EPYC 9135 16-core 3.65GHz CPUs, 64GB (2x32GB) DDR5 RDIMM, an MR408i-o RAID controller, 4x960GB SATA SSDs in 8 SFF bays and dual 1600W Flex Slot power supplies.

The platform uses a System on Chip design with a silicon root of trust and embedded TPM 2.0, and HPE iLO 6 provides remote management. With 24 DIMM slots supporting up to 6.0TB of memory, PCIe 5.0 and OCP 3.0 expansion, and redundant hot-plug Platinum power supplies, this server is ready to deploy and can scale as workloads grow.

Features

- Powered by 5th Gen AMD EPYC processors, with the platform supporting up to 160 cores
- Dual-socket 1U design for high compute density in the rack
- DDR5 memory up to 6400 MT/s and PCIe Gen5 I/O
- Silicon root of trust anchors firmware to an HPE-exclusive ASIC
- HPE iLO 6 included for remote server management
- Redundant hot-plug Flex Slot Platinum power supplies
- Hardware RAID via the MR408i-o controller with 4GB cache
- Direct Liquid Cooling supported on the platform

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack
- Processor: 2x AMD EPYC 9135 (5th Gen), 16 cores, 3.65GHz base, up to 4.3GHz boost, 64MB cache, 200W
- Memory installed: 64GB (2x32GB) DDR5 Dual Rank RDIMM
- DIMM slots: 24 (12 per processor), maximum 6.0TB
- Memory speed: up to 6400 MT/s
- Storage controller: HPE MR408i-o Gen11, x8 lanes, 4GB cache
- Drive bays: 8 SFF
- Drives installed: 4x960GB SATA SSD
- Power supply: 2x HPE 1600W Flex Slot Platinum hot-plug, 94% efficiency
- Management: HPE iLO 6
- Expansion: PCIe 5.0 and OCP 3.0 slots
- Ports: 2x USB 3.2 Gen1, VGA, dedicated iLO management port
- Security: embedded TPM 2.0, silicon root of trust
- Dimensions (H x W x D), SFF: 4.29 x 44.89 x 64.94 cm
- Operating temperature: 10 to 35 C

FAQs

Q: What processors and memory are installed in this DL365 Gen11?
A: This model has two AMD EPYC 9135 16-core 3.65GHz processors and 64GB (2x32GB) DDR5 Dual Rank RDIMM installed.

Q: How much memory can the server support?
A: The platform has 24 DIMM slots (12 per processor) and supports up to 6.0TB using 256GB RDIMMs.

Q: What storage is included and how can it be expanded?
A: Four 960GB SATA SSDs are installed in an 8 SFF drive bay chassis, controlled by an HPE MR408i-o Gen11 RAID controller with 4GB cache, leaving bays free for additional drives.

Q: Does it have redundant power?
A: Yes. It includes two HPE 1600W Flex Slot Platinum hot-plug power supplies at 94% efficiency.

Q: What remote management is included?
A: HPE iLO 6 is included, with a dedicated management port for out-of-band access.

Q: What expansion options are available?
A: The server provides PCIe 5.0 and OCP 3.0 expansion slots for network cards and other add-in cards.
