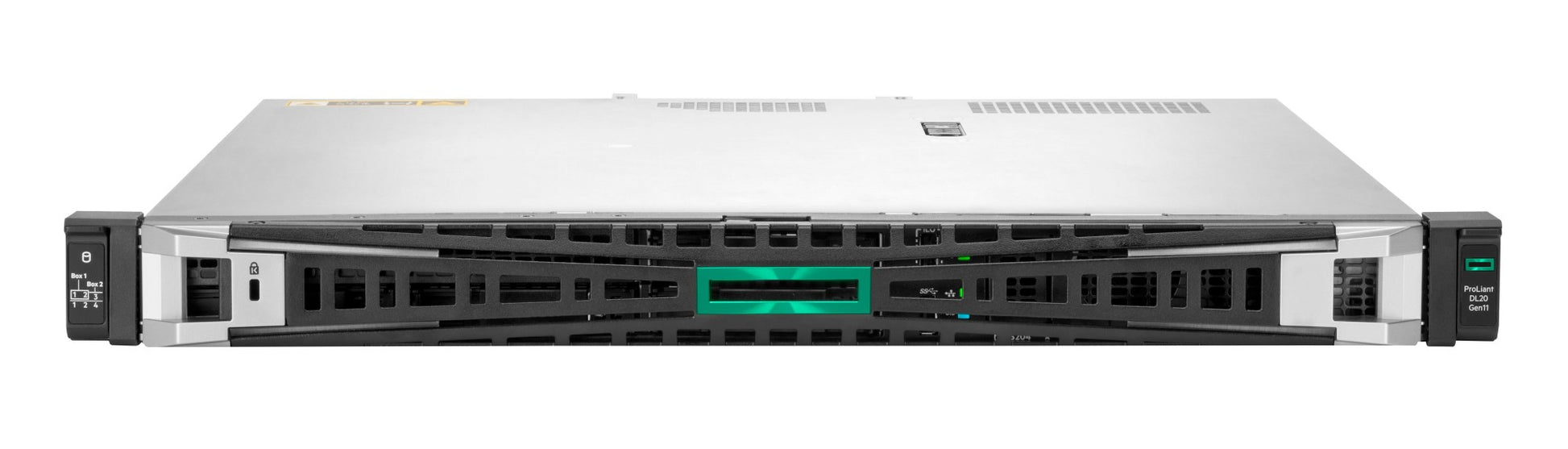

HPE P84656-375 | ProLiant DL20 Gen11 1U Rack Server, Xeon 6333P, 16GB, 2x480GB SSD

Name: HPE P84656-375 | ProLiant DL20 Gen11 1U Rack Server, Xeon 6333P, 16GB, 2x480GB SSD
Brand: HPE
SKU: P84656-375
Price: 9353.41 AUD
Availability: InStock

Authorised HPE Partner

SKU:P84656-375

In stock:5

$9,353.41 inc. GST

$8,503.10 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The ProLiant DL20 Gen11 1U rack server is a single-processor system built for small and mid-size business and edge workloads. This configuration pairs an Intel Xeon 6333P 6-core 3.1GHz processor with 16GB of DDR5 UDIMM memory, an MR408i-o Gen11 storage controller, two 480GB SATA SSDs in a 4SFF hot-plug chassis, and dual 500W Flex Slot power supplies.

Platform capabilities include PCIe 5.0 support, DDR5 memory up to 4800MT/s, an embedded 4-port 1GbE NIC with an OCP 3.0 slot for network expansion, and HPE iLO 6 for remote management. Redundant hot-plug power supplies and Gen11 storage controllers with SPDM support suit file, application and branch office deployments.

Features

- HPE iLO 6 for remote server management
- PCIe 5.0 support for high-speed expansion
- DDR5 memory up to 4800MT/s
- Gen11 storage controllers with SPDM support
- Embedded 4-port 1GbE NIC with PCIe and OCP NIC options
- Optional HPE NS204i-u Gen11 NVMe hot-plug boot optimised storage device
- Redundant hot-plug 500W Flex Slot power supplies
- Compact 1U form factor for space-constrained racks

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Intel Xeon 6333P, 6-core, 3.1GHz, 1 processor
- Memory installed: 1 x 16GB HPE DDR5 Unbuffered DIMM, single rank
- Platform memory: up to 128GB DDR5, 4800MT/s max
- Storage controller: HPE MR408i-o Gen11 x8 lanes 4GB cache SPDM
- Chassis: 4 SFF hot-plug drive bays
- Storage installed: 2 x 480GB SATA 6G SSD
- Network: embedded 4-port 1GbE NIC, OCP 3.0 slot supported
- Expansion: PCIe 5.0 support
- Power supplies: 2 x 500W Flex Slot Platinum hot-plug (1+1 redundancy)
- System fans: 3 high performance single rotor, non-hot plug, non-redundant
- Management: HPE iLO 6
- Form factor: 1U rack
- Dimensions (H x W x D): 4.32 x 43.46 x 37.84 cm
- Approx. weight (4SFF fully loaded): 9 to 12 kg

FAQs

Q: What processor and memory does this ProLiant DL20 Gen11 include?
A: It includes one Intel Xeon 6333P 6-core 3.1GHz processor and 1 x 16GB HPE DDR5 unbuffered DIMM (UDIMM). The platform supports up to 128GB of DDR5 memory at up to 4800MT/s.

Q: What storage is fitted and how many drive bays are there?
A: The chassis has 4 SFF hot-plug drive bays and ships with two 480GB SATA 6G SSDs, managed by the HPE MR408i-o Gen11 storage controller with 4GB cache.

Q: Does this server have redundant power?
A: Yes. It ships with two 500W Flex Slot Platinum hot-plug power supplies in a 1+1 redundant configuration.

Q: Can I add faster networking?
A: The server has an embedded 4-port 1GbE NIC and supports an OCP 3.0 slot as well as PCIe 5.0 expansion for additional or faster network adapters.

Q: How is the server managed remotely?
A: It uses HPE iLO 6 for remote management, monitoring and configuration.

Q: Is there an option for a dedicated boot device?
A: The platform supports the optional HPE NS204i-u Gen11 NVMe hot-plug boot optimised storage device for operating system boot.
