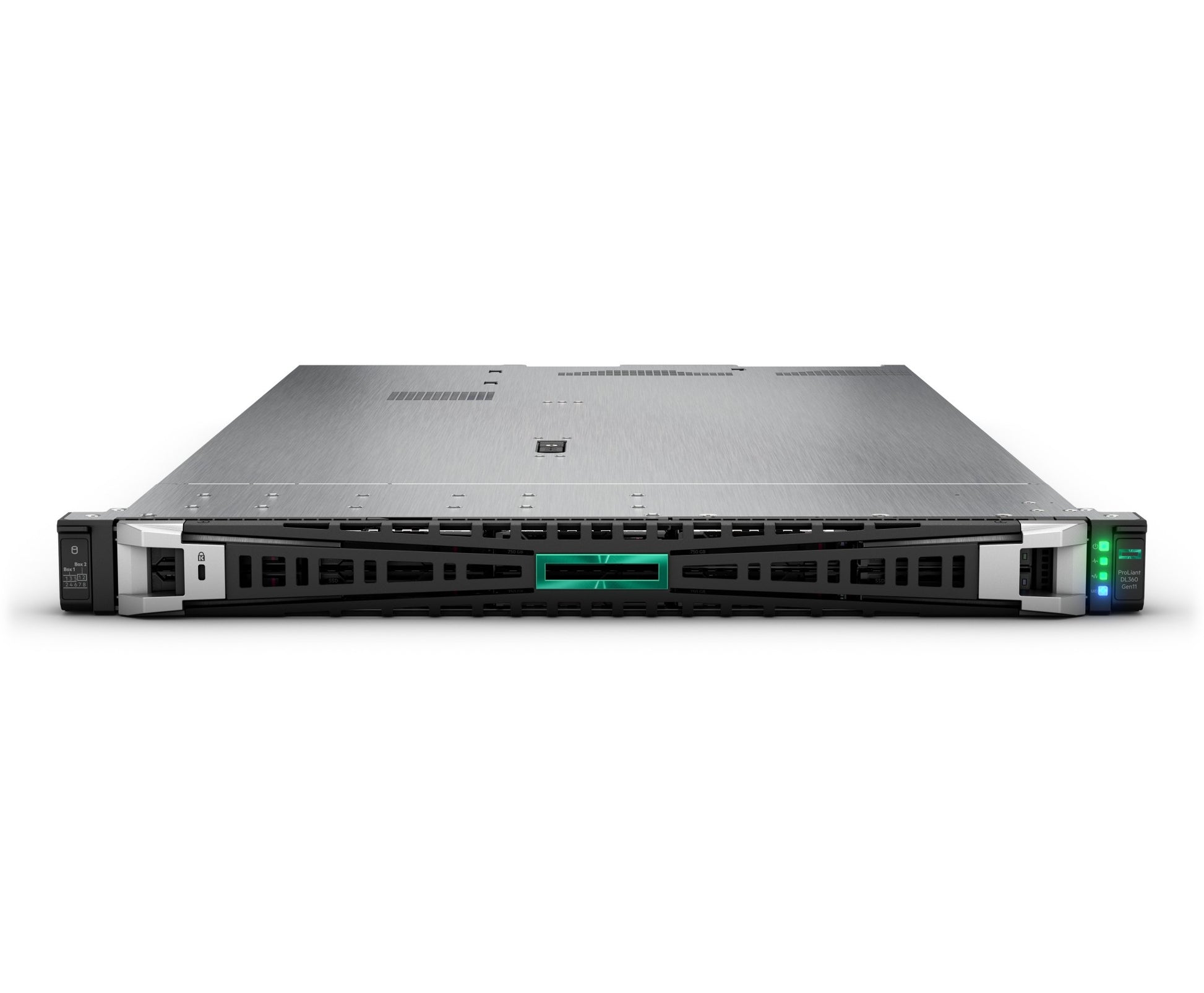

HPE P84556-375 | ProLiant DL360 Gen11 1U Rack Server, Xeon Gold 6526Y, 64GB, 8SFF

Authorised HPE Partner

SKU:P84556-375

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ProLiant DL360 Gen11 1U rack server in this configuration pairs a single Intel Xeon Gold 6526Y processor (2.8GHz, 16 cores, 32 threads) with 2x32GB DDR5 RDIMM memory, an MR408i-o storage controller and 8 SFF drive bays. Two HPE 960GB SATA Read Intensive SSDs are installed, and redundant 2x800W Flex Slot hot-plug power supplies support dependable operation in virtualisation, database and general business workloads.

Built on the Gen11 platform, this DL360 offers PCIe 5.0 expansion, DDR5 memory and HPE iLO 6 for remote management and security. An OCP 3.0 Broadcom BCM57416 10Gb 2-port BASE-T adapter provides high-speed network connectivity, and the single installed processor leaves the platform ready for further expansion.

Features

- Intel Xeon Scalable processor platform with built-in AI acceleration (AMX)
- PCIe Gen5 and CXL support for high-bandwidth expansion
- DDR5 memory with 8 channels per socket
- HPE iLO 6 for remote management and security
- 8 SFF drive bay configuration with MR408i-o hardware RAID controller
- Redundant hot-plug 800W Flex Slot power supplies
- OCP 3.0 SFF NIC and storage support
- Embedded TPM support

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack
- Processor: 1 x Intel Xeon Gold 6526Y, 2.8GHz, 16 cores / 32 threads, 37.5MB cache, 195W
- Memory installed: 2 x 32GB DDR5 RDIMM (64GB total)
- Drive bays: 8 SFF Basic Carrier, 24G x1 or x4 NVMe/SAS (TriMode) U.3
- Storage installed: 2 x HPE 960GB SATA 6G Read Intensive SFF BC Multi-Vendor SSD
- Storage controller: HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM
- Network: Broadcom BCM57416 10Gb 2-port BASE-T OCP 3.0 adapter
- Power supplies: 2 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen
- Management: HPE iLO 6, Redfish API, IPMI 2.0, SNMP v3
- Security: Embedded TPM support
- Expansion: PCIe 5.0 slots via risers, OCP 3.0 SFF NIC and storage support
- Optical drive: None
- Standards: ENERGY STAR 4.0, SMBIOS 3.4

FAQs

Q: What processor and memory are included with this DL360 Gen11?
A: This configuration includes one Intel Xeon Gold 6526Y processor (2.8GHz, 16 cores, 32 threads) and 2x32GB DDR5 RDIMM memory, giving 64GB in total.

Q: How many drive bays does it have and what storage is installed?
A: It has 8 SFF Basic Carrier drive bays. Two HPE 960GB SATA 6G Read Intensive SFF SSDs are installed, leaving the remaining bays available.

Q: Does it include a RAID controller?
A: Yes. It includes the HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM storage controller.

Q: Is the power supply redundant?
A: Yes. It ships with two HPE 800W Flex Slot Platinum hot-plug power supplies, supporting redundant power operation.

Q: What network connectivity is provided?
A: A Broadcom BCM57416 10Gb 2-port BASE-T OCP 3.0 adapter provides dual 10GbE copper connectivity.

Q: How is the server managed remotely?
A: The server uses HPE iLO 6, with support for the Redfish API, IPMI 2.0 and SNMP v3 for remote monitoring and management.
