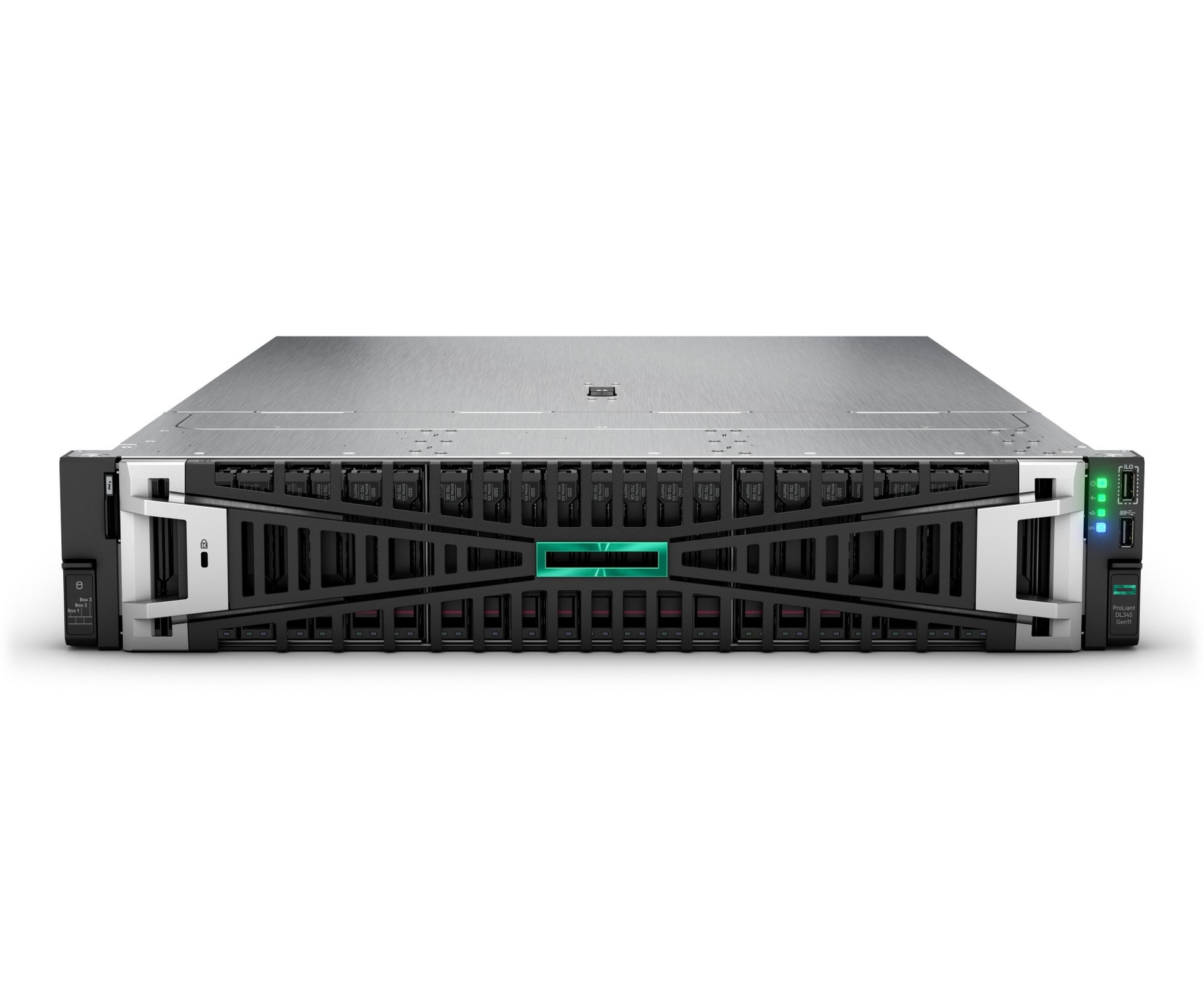

HPE P81816-375 | ProLiant DL345 Gen11 2U Rack Server, EPYC 9115 16c, 64GB, 8SFF

Authorised HPE Partner

SKU:P81816-375

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ProLiant DL345 Gen11 is a single-socket 2U rack server built on AMD EPYC processors, aimed at data-intensive, virtualised and storage-heavy workloads. This configuration pairs an EPYC 9115 16-core 3.2GHz processor with 2x32GB DDR5 registered memory, 8 SFF drive bays, an HPE MR416i-p Gen11 RAID controller, 2x480GB SSDs and dual 800W power supplies.

The Gen11 platform provides 12 DDR5 memory channels per processor, PCIe Gen5 I/O and flexible storage options including SFF, LFF and EDSFF NVMe. Management is handled through HPE iLO with Intelligent Provisioning and HPE GreenLake for Compute Ops Management, and the platform suits software-defined storage, video transcoding and virtualisation.

Features

- Silicon root of trust security with automated recovery from security events
- PCIe Gen5 I/O with up to 6x16 PCIe Gen5 slots and two OCP slots
- 12 DDR5 memory channels per processor for high memory bandwidth
- Flexible storage options including SFF, LFF and EDSFF NVMe, with optional mid and rear drive bays
- Optional hot-pluggable RAID M.2 boot
- Remote and cloud-based management with HPE iLO and GreenLake for Compute Ops Management
- Suited to software-defined storage, video transcoding and virtualised workloads

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: 1 x AMD EPYC 9115, 16 cores, 3.2 GHz
- Memory: 2 x 32 GB (64 GB) DDR5 dual-rank registered
- Memory slots: 12, up to 3.0 TB maximum, ECC protection
- Drive bays: 8 SFF
- Storage controller: HPE MR416i-p Gen11
- Storage: 2 x 480 GB SSD
- Power supplies: 2 x 800 W
- Form factor: 2U rack, single socket
- Expansion slots: 8 maximum
- System fans: 6 included
- Management: HPE iLO Standard with Intelligent Provisioning

FAQs

Q: What processor and memory are included with this DL345 Gen11 configuration?
A: It includes one AMD EPYC 9115 16-core 3.2GHz processor and 2 x 32GB (64GB) DDR5 dual-rank registered memory.

Q: What storage and RAID controller does this model include?
A: It has 8 SFF drive bays, an HPE MR416i-p Gen11 RAID controller and 2 x 480GB SSDs.

Q: Does this server have redundant power supplies?
A: Yes, it ships with two 800W power supplies.

Q: How much memory can the DL345 Gen11 platform support?
A: The platform has 12 DDR5 SmartMemory slots and supports up to 3.0TB with ECC protection.

Q: What remote management options are available?
A: HPE iLO Standard with Intelligent Provisioning is included, and the platform supports HPE OneView and HPE GreenLake for Compute Ops Management.

Q: What form factor is this server?
A: It is a single-socket 2U rack-mount server.
