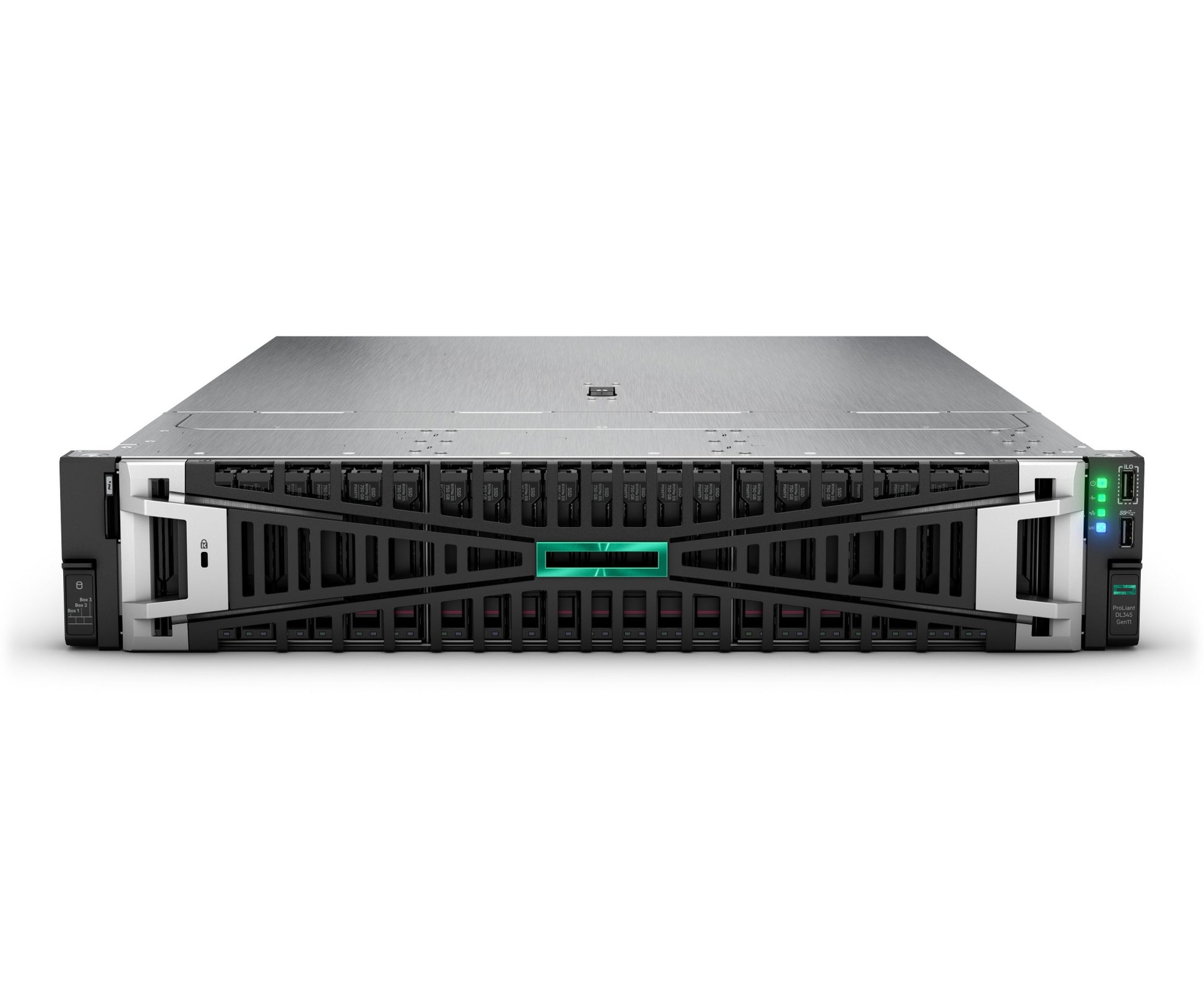

HPE P81815-375 | ProLiant DL345 Gen11 2U Server, EPYC 9115, 2x32GB, 8LFF

Authorised HPE Partner

SKU:P81815-375

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE ProLiant DL345 Gen11 2U rack server is a single-socket platform built on the AMD EPYC 9115 processor with 16 cores, a 2.6 GHz base clock, boost up to 4.1 GHz and 64MB of L3 cache. This pre-configured model ships with 2x32GB DDR5 RDIMM (64GB total), an 8LFF drive chassis, an HPE MR416i-p Gen11 RAID controller with 8GB cache, 2x960GB SSDs and dual 800W Flex Slot Platinum hot plug power supplies, ready for virtualisation, database and general data centre workloads.

The platform delivers DDR5 SmartMemory across 12 DIMM slots, PCIe 5.0 expansion and HPE iLO 6 management with a silicon root of trust and embedded TPM 2.0. The 8LFF chassis can be upgraded to a 12LFF front configuration, and the included Compute Ops Management subscription supports cloud-based fleet management.

Features

- AMD EPYC 9115 16-core processor for dense single-socket compute
- DDR5 SmartMemory with up to 6400 MT/s on 5th Gen EPYC
- PCIe Gen5 support with CXL 1.1+ capability
- HPE iLO 6 with silicon root of trust and embedded TPM 2.0
- Hot-plug redundant Flex Slot power supplies for resilience
- MR416i-p RAID controller with 8GB cache for hardware storage protection
- HPE Compute Ops Management subscription included for cloud-based management
- 8LFF chassis upgradeable to 12LFF front for storage growth

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U rack
- Processor: 1 x AMD EPYC 9115, 16 cores, 2.6 GHz base, up to 4.1 GHz boost, 125W, 64MB L3 cache
- Socket: single socket SP5 LGA 6096
- Memory: 2 x 32GB DDR5 RDIMM (64GB total), 12 DIMM slots
- Maximum memory: 3.0 TB (12 x 256GB RDIMM)
- Memory speed: up to 6400 MT/s with 5th Gen EPYC
- Chassis: 8LFF, upgradeable to 12LFF front
- Storage controller: HPE MR416i-p Gen11 x16 lanes, 8GB cache, PCI SPDM
- Storage: 2 x 960GB SSD
- Power supplies: 2 x HPE 800W Flex Slot Platinum hot plug, 94% efficiency
- Fans: 6 hot-plug fans
- Management: HPE iLO 6 with Intelligent Provisioning and OneView Standard
- Security: embedded TPM 2.0
- PCIe: PCIe 5.0, 128 lanes per processor
- Ports: 1 VGA rear, 1 front USB 3.2 Gen1 plus iLO service port, 2 rear USB 3.2 Gen1, 2 internal USB 3.2 Gen1
- Dimensions (H x W x D): 8.75 x 44.8 x 66.3 cm
- Input voltage: 100-120 VAC and 200-240 VAC
- Operating temperature: 10 to 35 C at sea level

FAQs

Q: What processor does the HPE P81815-375 use?
A: It uses a single AMD EPYC 9115 processor with 16 cores, a 2.6 GHz base clock, up to 4.1 GHz boost, 125W TDP and 64MB of L3 cache.

Q: How much memory is installed and what is the maximum?
A: This model ships with 2x32GB DDR5 RDIMM (64GB). The server has 12 DIMM slots and supports up to 3.0 TB using 12 x 256GB RDIMMs.

Q: What storage and RAID controller are included?
A: It includes 2x960GB SSDs and an HPE MR416i-p Gen11 x16 lanes RAID controller with 8GB cache, in an 8LFF drive chassis.

Q: Is the power supply redundant?
A: Yes. It includes two HPE 800W Flex Slot Platinum hot plug power supplies with 94% efficiency, supporting 100-120 VAC and 200-240 VAC input.

Q: Can the drive bay count be expanded?
A: The 8LFF chassis is upgradeable to a 12LFF front configuration, allowing more drive capacity as storage needs grow.

Q: How is the server managed remotely?
A: HPE iLO 6 provides remote management, along with Intelligent Provisioning and OneView Standard. A Compute Ops Management subscription is included for cloud-based management.
