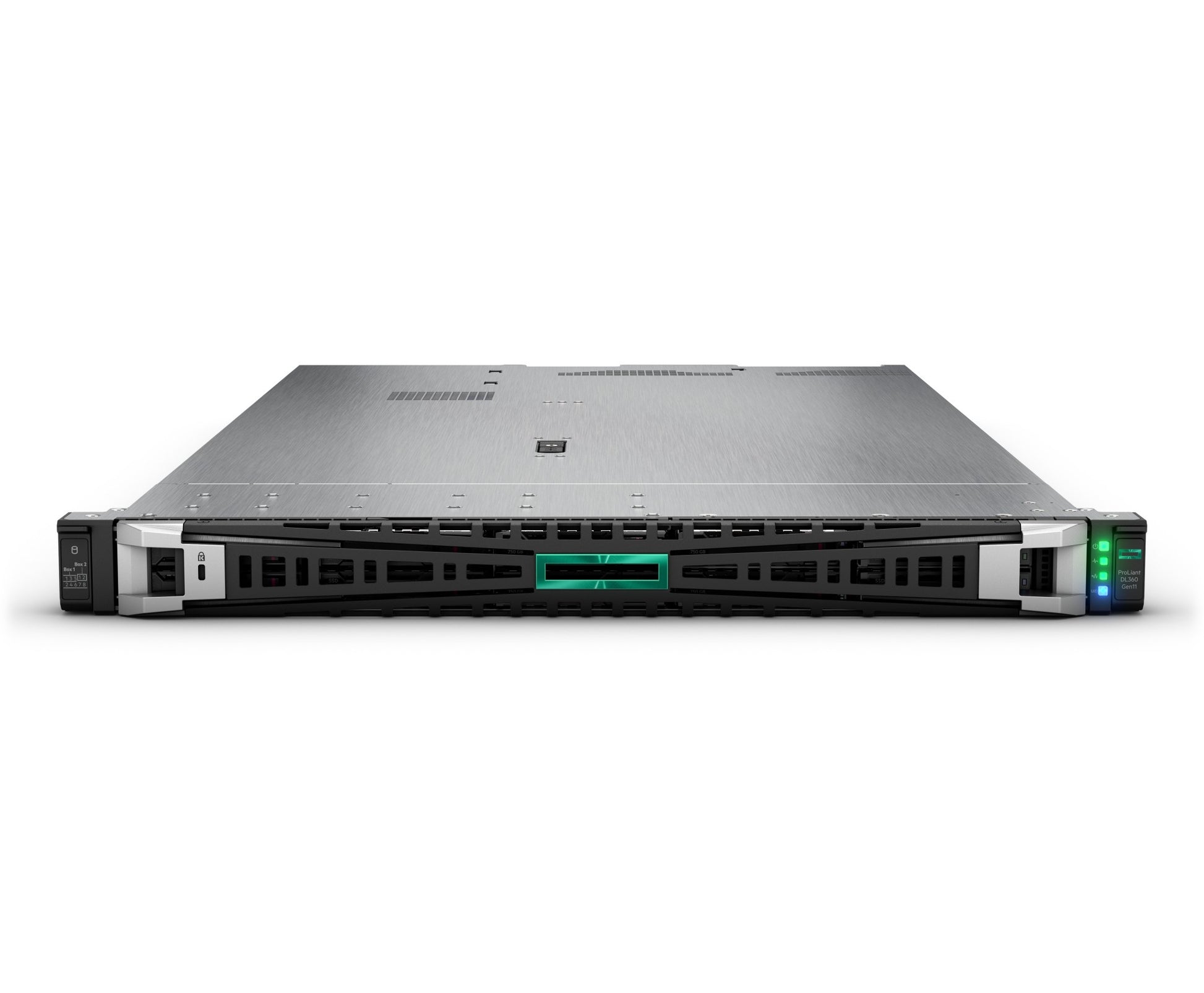

HPE P81580-375 | ProLiant DL360 Gen11 1U Rack Server, Xeon 4514Y, 64GB, 8SFF

Authorised HPE Partner

SKU:P81580-375

In stock:2

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE ProLiant DL360 Gen11 is a 1U rack server built on 4th and 5th Gen Intel Xeon Scalable processors, configured here with one 16-core Xeon Silver 4514Y at 2.0GHz, 64GB (2 x 32GB) DDR5 registered memory and 8 SFF drive bays. This pre-configured AP model includes an NS204i-u NVMe boot device, an MR408i-o storage controller and dual 800W power supplies, making it a ready-to-deploy option for virtualisation, database and general-purpose data centre workloads.

The platform supports DDR5 memory across 8 channels per processor, PCIe 5.0 expansion and OCP 3.0 NIC and storage options. HPE iLO 6 provides remote management with Silicon Root of Trust security, while the redundant hot-plug Flex Slot power supplies and boot-optimised NVMe storage help maintain uptime in dense rack environments.

Features

- Supports 4th and 5th Gen Intel Xeon Scalable processors
- DDR5 memory with 8 channels per processor
- PCIe 5.0 expansion and OCP 3.0 support
- HPE iLO 6 with Silicon Root of Trust security
- Redundant hot-plug Flex Slot power supplies
- Boot-optimised NVMe storage with NS204i-u

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack
- Processor: 1 x Intel Xeon Silver 4514Y (16 cores, 2.0GHz) installed; up to 2 processors supported
- Memory installed: 64GB (2 x 32GB) HPE DDR5 Smart Memory RDIMM, dual rank
- DIMM slots: 32 (16 per processor, 8 channels per processor, 2 DIMMs per channel)
- Maximum memory (RDIMM): 8.0 TB (32 x 256GB)
- Drive support: 8 SFF
- Boot device: HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device
- Storage controller: HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM
- Power supplies: 2 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen
- Fans: HPE ProLiant DL3X0 Gen11 1U High Performance Fan Kit
- Expansion: PCIe 5.0 slots via riser options (x16), OCP 3.0 SFF NIC and storage support
- System management: HPE iLO 6 ASIC
- Security: UEFI Secure Boot, Silicon Root of Trust, TPM 2.0 support
- Integrated video: up to 1920 x 1200 @ 60Hz, 16MB video memory
- Standards: ENERGY STAR 4.0, SMBIOS 3.4, Redfish API, IPMI 2.0

FAQs

Q: What processor and memory are installed in this DL360 Gen11?
A: This configuration includes one Intel Xeon Silver 4514Y (16 cores, 2.0GHz) and 64GB (2 x 32GB) HPE DDR5 Smart Memory registered dual rank RDIMMs.

Q: Can I add a second processor and more memory?
A: The DL360 Gen11 platform supports up to two processors and 32 DIMM slots, with a maximum of 8.0 TB of RDIMM memory across the platform.

Q: What drive bays does this model have?
A: It has 8 SFF drive bays managed by the HPE MR408i-o Gen11 storage controller with 4GB cache, plus a separate NS204i-u NVMe boot optimised device for the operating system.

Q: Does this server have redundant power?
A: Yes. It ships with two HPE 800W Flex Slot Platinum hot-plug low halogen power supplies for redundancy.

Q: How is the server managed remotely?
A: It uses HPE iLO 6 for remote management, with Redfish API and IPMI 2.0 support and Silicon Root of Trust security.

Q: What expansion options are available?
A: The server supports PCIe 5.0 slots through riser options and OCP 3.0 SFF NIC and storage support.
