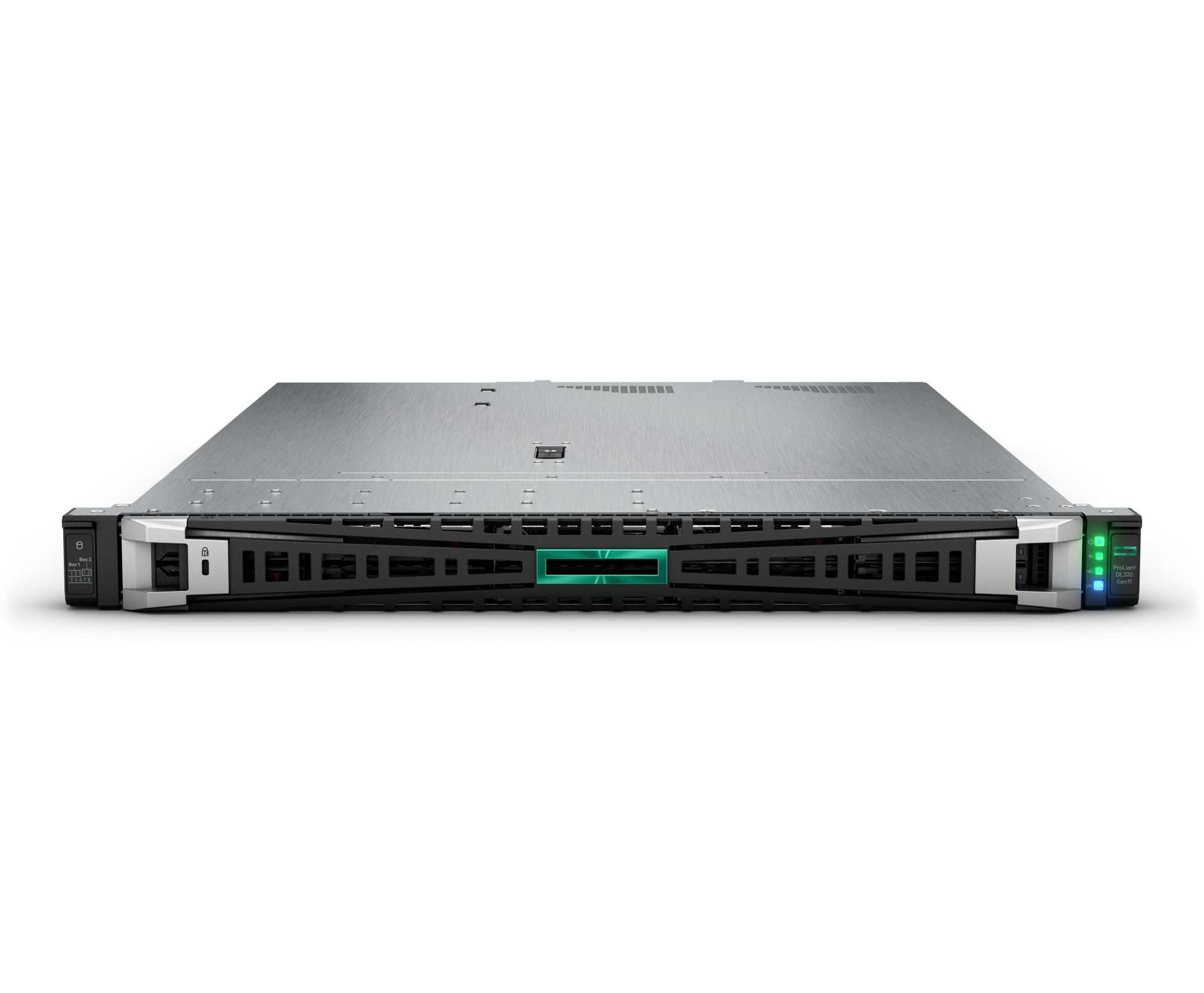

HPE P81571-375 | ProLiant DL320 Gen11 1U Server, Xeon Silver 4510, 64GB, 8SFF

Authorised HPE Partner

SKU:P81571-375

In stock:17

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE ProLiant DL320 Gen11 1U rack server is a pre-configured, single-processor edge server built around an Intel Xeon Silver 4510 (12 cores, 2.4 GHz). This configuration ships with 64 GB (2 x 32 GB) Dual Rank DDR5 Smart Memory, an HPE MR408i-o Gen11 storage controller with 4GB cache, eight SFF drive bays, 2 x 480GB SSDs and dual 800W power supplies. It suits edge AI, virtualised and containerised workloads where rack space is limited.

The platform supports 4th and 5th Gen Intel Xeon Scalable processors, memory expansion up to 2 TB at 5600 MT/s, and PCIe Gen5 expansion with support for up to four single-wide or two double-wide GPUs. A modular, workload-driven design lets the DL320 Gen11 scale with demanding edge deployments, and this SKU belongs to HPE's Smart Choice range of popular ready-to-ship configurations.

Features

- Compact 1U single-processor design built for edge computing
- Modular, workload-driven design
- Supports up to four single-wide or two double-wide GPUs for edge AI workloads
- PCIe Gen5 high-speed expansion
- Supports 4th and 5th Gen Intel Xeon Scalable processors
- Suited to virtualised and containerised workloads
- Memory expandable to 2 TB at 5600 MT/s
- Redundant 2 x 800W power supplies included
- HPE Smart Choice configuration of popular specifications

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: 1 x Intel Xeon Silver 4510, 12 cores, 2.4 GHz
- Memory installed: 64 GB (2 x 32 GB) Dual Rank DDR5 Smart Memory
- Storage controller: HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM
- Drive bays: 8 x SFF
- Installed drives: 2 x HPE 480GB SSD
- Power supplies: 2 x 800W
- Fans: HPE ProLiant DL3X0 Gen11 1U Standard Fan Kit and 1U 2P Standard Fan Kit included
- Form factor: 1U rack, single processor
- Platform memory capacity: up to 2 TB at 5600 MT/s
- Platform expansion: PCIe Gen5, up to four single-wide or two double-wide GPUs

FAQs

Q: What processor and memory does this DL320 Gen11 include?
A: It includes one Intel Xeon Silver 4510 (12 cores, 2.4 GHz) and 64 GB (2 x 32 GB) Dual Rank DDR5 Smart Memory.

Q: How many drive bays are there and what is installed?
A: The server has eight SFF drive bays, with 2 x HPE 480GB SSDs installed and managed by the HPE MR408i-o Gen11 storage controller with 4GB cache.

Q: Can this server be fitted with GPUs?
A: Yes. The DL320 Gen11 platform supports PCIe Gen5 expansion, including up to four single-wide or two double-wide GPUs for edge AI workloads.

Q: How far can memory be expanded?
A: The platform supports up to 2 TB of memory at 5600 MT/s, so the installed 64 GB can be expanded as workloads grow.

Q: Does it have redundant power?
A: Yes. This configuration includes two 800W power supplies.

Q: What workloads is this server suited to?
A: It targets edge computing, edge AI, and virtualised and containerised workloads in a compact 1U footprint.
