HPE P79833-B21 | Intel E610 4-Port 1GbE BASE-T OCP 3.0 Network Adapter

Name: HPE P79833-B21 | Intel E610 4-Port 1GbE BASE-T OCP 3.0 Network Adapter
Brand: HPE
SKU: P79833-B21
Price: 450.14 AUD
Availability: BackOrder

Authorised HPE Partner

SKU:P79833-B21

Stock Status: Enquire

$450.14 inc. GST

$409.22 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

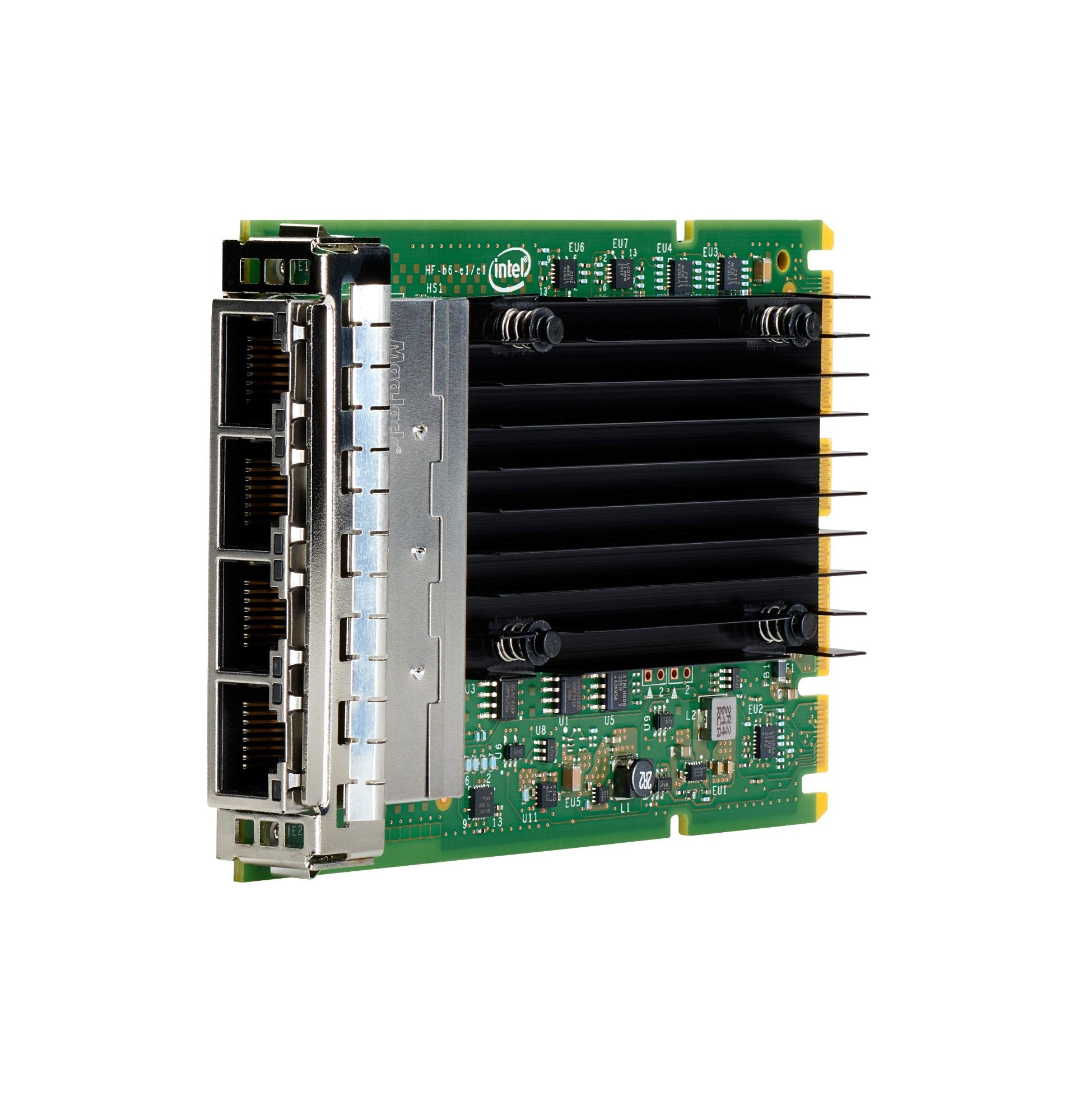

This 4-port 1GbE BASE-T (RJ45) OCP 3.0 network adapter is built on the Intel E610-XAT2 controller and is designed for HPE Gen12 servers. It delivers full line-rate performance across all four ports at low power, with a typical draw of 7 W and a maximum of 8 W, making it well suited to virtualisation, server consolidation, server management and network segmentation.

The adapter connects over PCIe 4.0 x8 using x4 x4 link bifurcation and supports SR-IOV, DPDK, RSS and VMware NetQueue or Microsoft VMQ. Hardware security features include Root of Trust, SPDM, Secure Boot, Authenticated Updates and Sanitization, and PXE boot is available in both UEFI and legacy BIOS modes. Operating system support follows the host server's OS support matrix.

Features

- Full line-rate performance across all four ports with low power consumption
- Suited to virtualisation, security, server management, server consolidation and network segmentation
- Hardware security: Root of Trust, SPDM, Secure Boot, Authenticated Updates and Sanitization
- SR-IOV, DPDK, RSS and VMQ/NetQueue support for virtualised workloads
- PXE boot in both UEFI and legacy BIOS modes, plus Wake-on-LAN
- OCP 3.0 form factor for compatible HPE Gen12 servers
- Kit contents: adapter, quick install card and product warranty statement

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x 1GbE BASE-T (RJ45) ports
- OCP 3.0 card type
- Intel E610-XAT2 controller
- PCIe 4.0 x8 via x4 x4 link bifurcation (requires OCP x16 enablement cable)
- Power: typical 7 W, maximum 8 W
- UEFI and legacy BIOS PXE boot supported
- Wake-on-LAN supported (not supported on Windows from S3 and S4 states)
- IPv4 and IPv6 supported with auto negotiation
- SR-IOV, DPDK, RSS and tunnel offload supported
- VMware NetQueue and Microsoft VMQ supported
- RDMA, NPAR and iSCSI remote boot not supported
- Supported on HPE Gen12 servers

FAQs

Q: Which servers is this adapter compatible with?
A: It is supported on HPE Gen12 servers that accept OCP 3.0 cards. Operating system support follows the host server's OS support matrix.

Q: What controller does this adapter use?
A: It uses the Intel E610-XAT2 controller and provides four 1GbE BASE-T (RJ45) ports.

Q: What PCIe link does the adapter use?
A: It uses PCIe 4.0 x8 via x4 x4 PCIe link bifurcation, and requires an OCP x16 enablement cable.

Q: Does it support RDMA or iSCSI remote boot?
A: No. RDMA, NPAR and iSCSI remote boot are not supported. It does support UEFI and legacy BIOS PXE boot, SR-IOV and DPDK.

Q: How much power does the adapter draw?
A: Typical power draw is 7 W and the maximum is 8 W.

Q: What security features are included?
A: It supports Root of Trust, SPDM, Secure Boot, Authenticated Updates and Sanitization. Audit Log is not supported.
