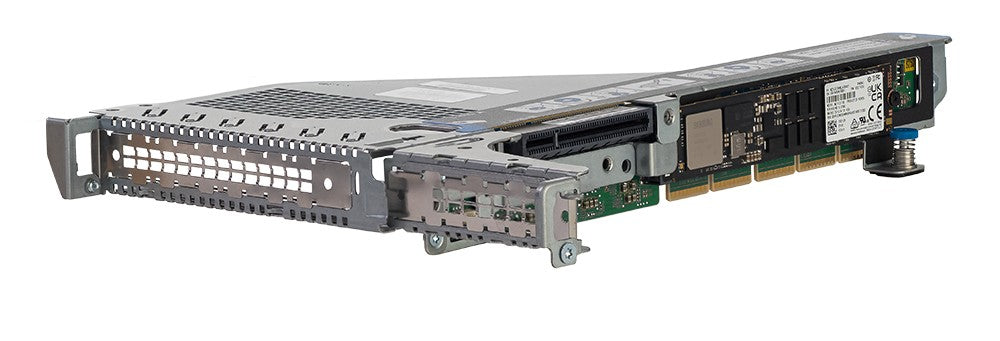

• Gray metal hpe p78763-b21 proliant dl380 gen12 secondary tertiary nebs riser kit with green circuit board and black components
1 1

HPE

HPE P78763-B21 | ProLiant DL380 Gen12 Secondary/Tertiary NEBS Riser Kit, PCIe Gen5, 2U

HPE P78763-B21 | ProLiant DL380 Gen12 Secondary/Tertiary NEBS Riser Kit, PCIe Gen5, 2U

P78763-B21

Stock Status: Enquire

$2,052.66 AUD
$2,052.66 AUD
$2,052.66 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The HPE ProLiant DL380 Gen12 Secondary/Tertiary NEBS-compliant Riser Kit expands PCIe Gen5 slot capacity in the secondary and/or tertiary riser positions of the DL380 Gen12 2U server, purpose-built for carrier-grade and telecom deployments requiring Network Equipment Building System (NEBS) compliance. Ideal for organisations deploying compute infrastructure in hardened network environments, this kit enables additional I/O cards, accelerators, and expansion cards while maintaining full NEBS certification across the riser configuration.

This riser kit requires a dual-processor configuration and must be used exclusively with other NEBS-compliant risers — it cannot be mixed with standard non-NEBS risers, and GPU risers cannot be selected simultaneously. Designed specifically for the HPE ProLiant DL380 Gen12 platform, it integrates seamlessly into certified telecom and carrier network builds. Upgrade your network with gear from iptrading.com.au — Australia's IT hardware specialists.

Features

- NEBS (Network Equipment Building System) compliant — meets carrier-grade and telecom environmental standards
- Expands PCIe Gen5 capability in Secondary and/or Tertiary riser positions on the DL380 Gen12
- Supports installation of additional NICs, I/O cards, and PCIe accelerators
- Full NEBS riser configuration required — cannot mix with non-NEBS risers
- GPU and NEBS risers are mutually exclusive — cannot be configured simultaneously
- When Primary and Secondary NEBS risers are selected, Tertiary riser slot is unavailable
- Designed exclusively for the HPE ProLiant DL380 Gen12 2U server platform
- Requires dual-processor (2P) configuration for installation

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part Number: P78763-B21
- Compatible Server: HPE ProLiant DL380 Gen12
- Form Factor: 2U
- Riser Position: Secondary / Tertiary
- PCIe Generation: Gen5 riser architecture
- NEBS Compliant: Yes (Network Equipment Building System)
- Processor Requirement: Dual-processor configuration required
- Riser Compatibility: Must be used with NEBS-compliant risers only (non-NEBS risers cannot be mixed)
- GPU Riser Compatibility: Cannot be selected with GPU riser

FAQs

Q: What is the difference between the Secondary/Tertiary and Primary NEBS riser kits for the DL380 Gen12?
A: The Secondary/Tertiary NEBS Riser Kit (P78763-B21) adds PCIe expansion in the secondary and/or tertiary riser positions, whereas the Primary NEBS riser occupies the first riser slot. Note that when both Primary and Secondary NEBS risers are installed, the Tertiary riser position cannot be used simultaneously.

Q: Does this riser kit require a dual-processor configuration?
A: Yes. A second processor must be installed in the HPE ProLiant DL380 Gen12 for this Secondary/Tertiary riser kit to be used. It cannot function in a single-processor configuration.

Q: Can I mix this NEBS riser with standard (non-NEBS) risers in the same DL380 Gen12?
A: No. NEBS-compliant riser configurations must be consistent across the server. Mixing NEBS and non-NEBS risers is not supported, and doing so will void NEBS compliance.

Q: What types of cards can I install using this riser kit?
A: This kit supports PCIe Gen5 expansion cards including additional network interface cards (NICs), storage controllers, and other I/O accelerators. GPU cards are not compatible when a NEBS riser configuration is selected.

Q: What environments is the NEBS-compliant riser kit designed for?
A: This riser is designed for telecom, carrier-grade, and central office deployments that mandate NEBS (Network Equipment Building System) compliance — including requirements around thermal, mechanical, and environmental durability standards.

Q: Can I purchase this HPE ProLiant DL380 Gen12 riser kit in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware specialist and can supply HPE server accessories including the P78763-B21 riser kit. Contact the team for availability, pricing, and compatibility advice.
