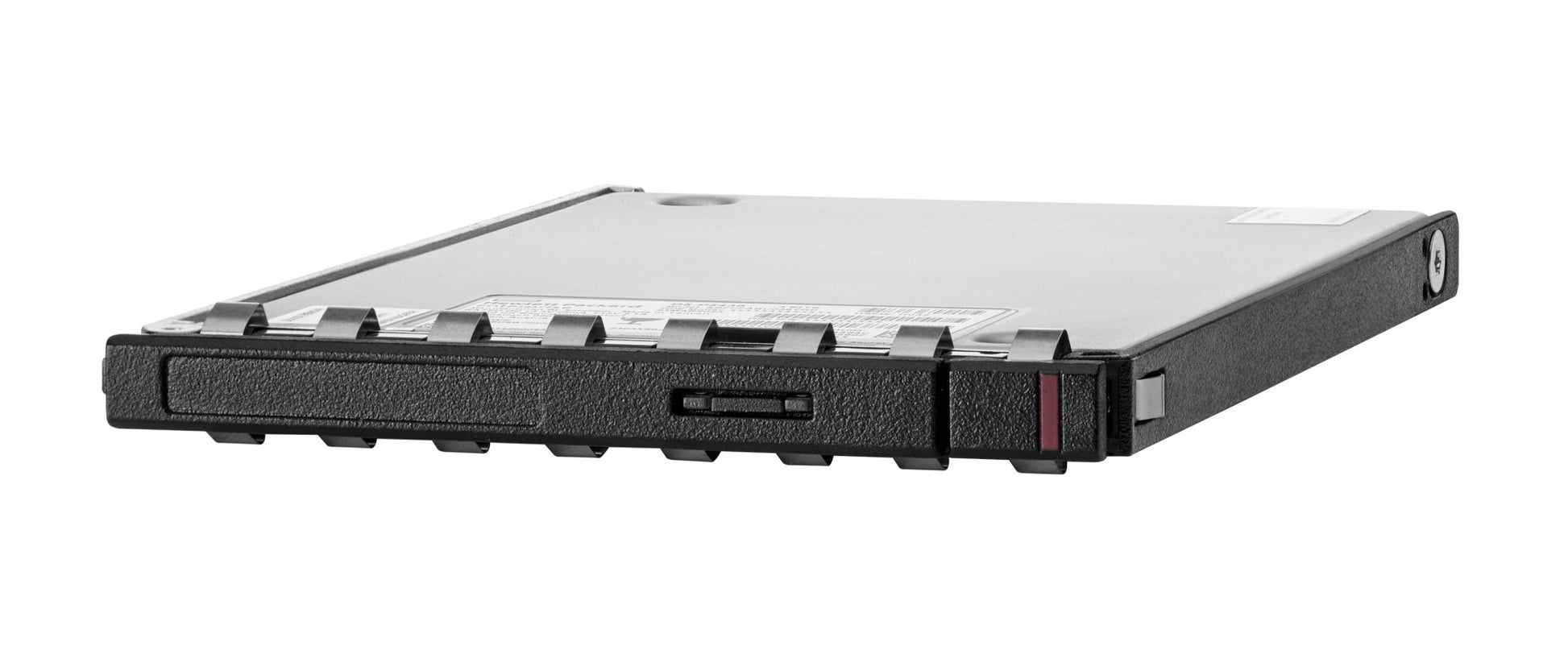

HPE P77275-B21 | 15.36TB NVMe Gen5 Read Intensive SSD, E3.S EC1, PE1010

Authorised HPE Partner

SKU:P77275-B21

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The 15.36TB NVMe Gen5 read-intensive SSD uses the EDSFF E3.S 1T form factor in an EC1 thin carrier and is built on the SK hynix PE1010 controller. It is designed for HPE Gen11 servers running read-heavy workloads such as databases, cloud compute, containers and hyperscale environments, with a 1.43 DWPD endurance rating.

The PCIe Gen5 interface delivers 268,651 random read IOPS and 242,563 random write IOPS (4KiB, Q=16), while SPDM support adds a security layer for component authentication. The hot-pluggable E3.S format allows higher drive density, with up to 20 drives in a 1U server and 36 drives in a 2U server, along with improved power management compared with previous form factors.

Features

- Higher drive density, with up to 20 E3.S drives in a 1U server and 36 in a 2U server
- Improved power management and lower power use than previous form factors
- Security Protocol and Data Model (SPDM) support
- Suited to databases, cloud compute, containers and hyperscale environments
- Hot-pluggable design for simplified drive servicing
- Part of a family offered in 1.92, 3.84, 7.68, 15.36 and 30.72 TB capacities

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 15.36 TB
- Interface: NVMe (PCIe Gen5)
- Form factor: EDSFF E3.S (1T)
- Carrier: E3.S Thin Carrier (EC1)
- Workload: Read Intensive
- Endurance: 1.43 DWPD
- Lifetime writes: 40,086
- Random read IOPS (4KiB, Q=16): 268,651
- Maximum random read IOPS (4KiB): 1,317,146 at Q256
- Random write IOPS (4KiB, Q=16): 242,563
- Maximum random write IOPS (4KiB): 243,361 at Q4
- Controller: SK hynix PE1010
- Security: SPDM support
- Power: 17.23 W maximum, 4.75 W idle
- Plug type: Hot pluggable
- Height: 7.5 mm
- Weight: 0.54 kg

FAQs

Q: What form factor is the P77275-B21?
A: It is an EDSFF E3.S 1T drive supplied in an EC1 thin carrier, with a height of 7.5 mm.

Q: Which servers is this SSD designed for?
A: It is designed for HPE Compute Mainstream platforms, including HPE Gen11 servers. Check the HPE QuickSpecs for your specific server model before ordering.

Q: What workloads suit this drive?
A: It is a read-intensive drive rated at 1.43 DWPD, suited to databases, cloud compute, containers and hyperscale workloads where reads dominate.

Q: What performance can I expect?
A: At 4KiB and a queue depth of 16, it delivers 268,651 random read IOPS and 242,563 random write IOPS over its PCIe Gen5 NVMe interface.

Q: Does this SSD support hot plugging and SPDM?
A: Yes. The drive is hot pluggable and supports the Security Protocol and Data Model (SPDM) for component authentication.

Q: How many of these drives fit in a server?
A: The E3.S form factor allows up to 20 drives in a 1U server and up to 36 drives in a 2U server, depending on the chassis.
