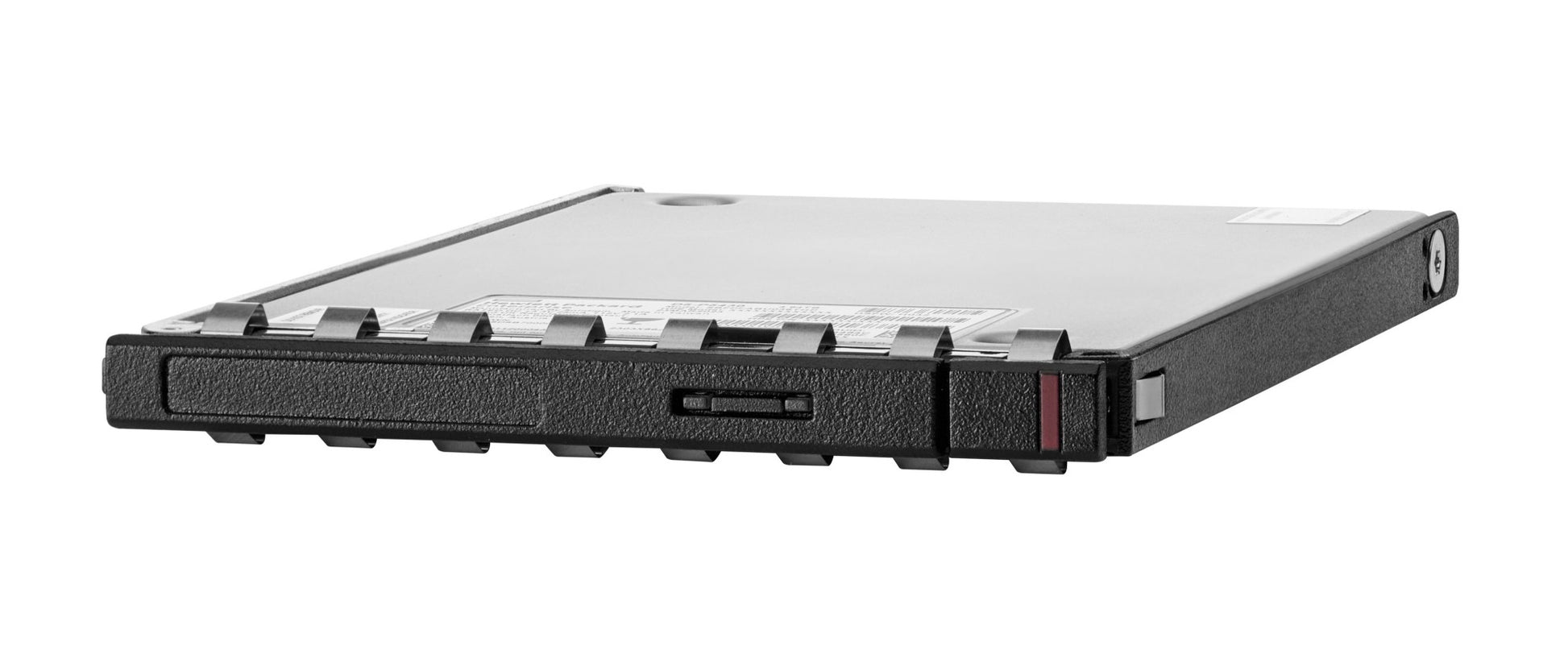

HPE P77271-B21 | 3.84TB NVMe Gen5 E3.S EC1 SSD, Read Intensive, SPDM

Authorised HPE Partner

SKU:P77271-B21

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The 3.84TB NVMe PCIe Gen5 EDSFF E3.S SSD is a read-intensive, hot-plug solid state drive in the EC1 carrier format, built for HPE ProLiant Gen11 and Gen12 servers. This PE1010 model uses TLC NAND and supports SPDM for device authentication, making it a strong fit for read-heavy enterprise workloads such as web serving, boot and swap functions and read caching.

Rated at up to 11,526 MiB/s sequential read and 6,363 MiB/s sequential write with 1.39 DWPD endurance, the drive delivers low-latency Gen5 performance in a high-density E3.S form factor with improved thermal management. Enterprise-class protection includes full data path error detection and surprise power loss protection, and HPE SmartSSD Wear Gauge support provides remaining-life diagnostics.

Features

- PCIe Gen5 NVMe performance with low latency for read-heavy workloads
- EDSFF E3.S form factor for high density and improved thermal management
- SPDM support for device authentication
- Full data path error detection and surprise power loss protection
- HPE SmartSSD Wear Gauge support for remaining-life diagnostics
- Suited to web servers, boot and swap functions and read caching
- Hot-plug design for serviceability without powering down the server

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 3.84TB (3,840 GB)
- Interface: NVMe PCIe Gen5
- Form factor: EDSFF E3.S, EC1 carrier, hot-plug
- Workload: Read Intensive (RI)
- Endurance: 1.39 DWPD, 9,741 TB lifetime writes
- Max sequential read / write: 11,526 / 6,363 MiB/s
- Random read / write IOPS (4KiB, Q=16): 265,590 / 210,452
- Max random read IOPS (4KiB): 1,296,764 at Q256
- Random read / write average latency (4KiB, Q1): 56 / 10 uSec
- NAND type: TLC
- Port configuration: Single
- Security: SPDM supported
- Supported server generations: HPE Gen11, Gen12

FAQs

Q: Which HPE servers is this SSD compatible with?
A: It is designed for HPE ProLiant Gen11 and Gen12 servers that support EDSFF E3.S NVMe drives in the EC1 carrier.

Q: Is this a read-intensive or mixed-use drive?
A: It is a Read Intensive (RI) drive rated at 1.39 DWPD, suited to read-heavy workloads such as web serving, boot and swap functions and read caching.

Q: Is this SSD hot-plug?
A: Yes. The EDSFF E3.S EC1 drive is hot-plug, so it can be installed or replaced without shutting down a supporting server.

Q: What interface and speeds does it offer?
A: It uses an NVMe PCIe Gen5 interface with maximum sequential read and write throughput of 11,526 MiB/s and 6,363 MiB/s respectively.

Q: Does this SSD support SPDM?
A: Yes. SPDM is supported, enabling device authentication as part of a secure server platform.

Q: What type of NAND does it use?
A: This drive uses TLC NAND with a single port configuration.
