HPE P77267-B21 | NVMe Gen5 SSD, 6.4TB, Mixed Use, E3.S EC1, SPDM

Authorised HPE Partner

SKU:P77267-B21

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

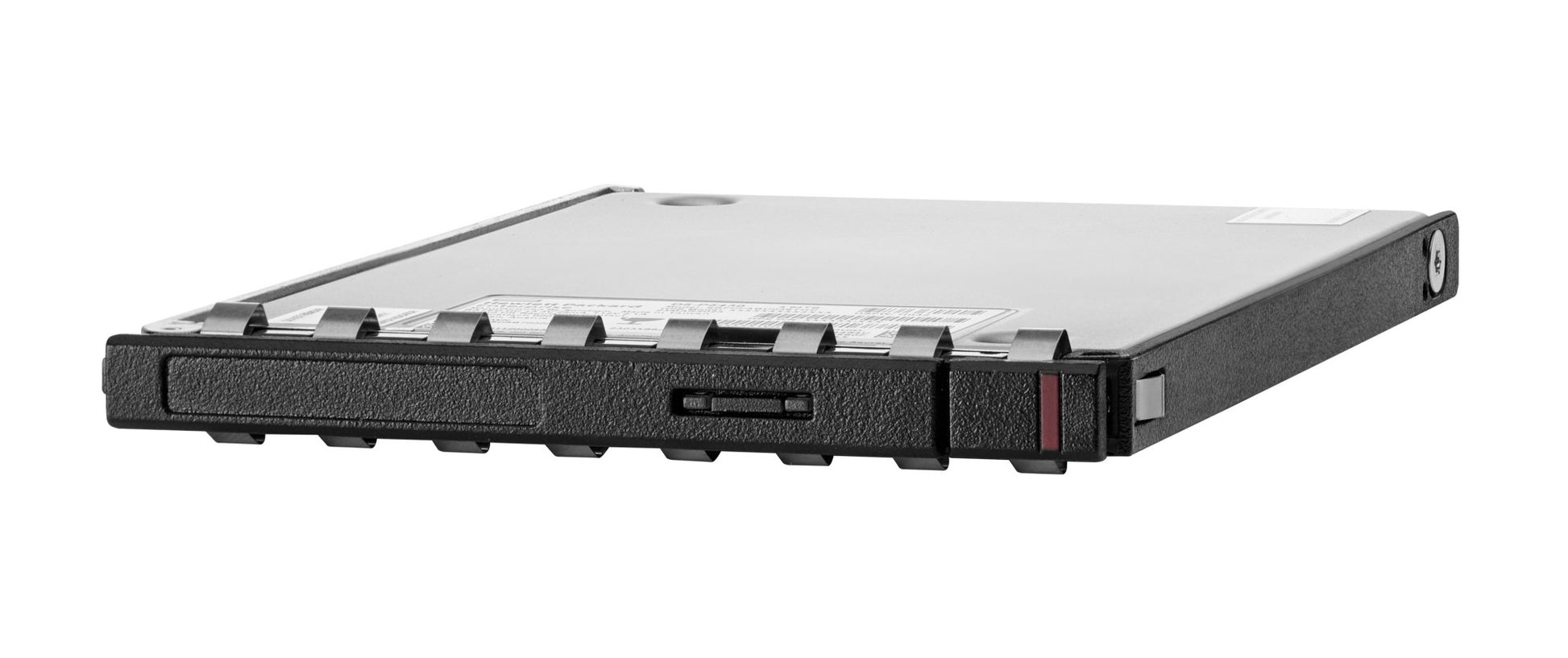

This 6.4TB NVMe Gen5 SSD from HPE uses the EDSFF E3.S (E3.Short 1T) form factor in an EC1 hot-plug carrier, built on SK hynix PE1030 TLC flash. With a Mixed Use workload rating and an endurance of 4.05 DWPD (47,304 TB lifetime writes), it suits big data analytics, databases, virtualization, cloud computing and HPC deployments on HPE Gen11 and Gen12 servers.

The PCIe Gen5 interface delivers up to 11,502 MiB/s sequential read and 5,851 MiB/s sequential write, with random read and write latency averaging 56 and 10 microseconds. SPDM support and digitally signed firmware add platform-level security, while the E3.S form factor improves thermals, power efficiency and drive density for high-I/O workloads.

Features

- PCIe Gen5 performance in the EDSFF E3.S form factor
- Mixed Use endurance rating of 4.05 DWPD for balanced read and write workloads
- Suited to big data analytics, cloud computing, HPC, business intelligence, databases and virtualization
- Improved thermals, power and scalability for high-I/O workloads
- SPDM (Security Protocol and Data Model) support
- Digitally signed firmware
- Hot-plug EC1 carrier for in-service drive replacement
- Designed for HPE Gen11 and Gen12 servers

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 6.4 TB (6,400 GB)
- Interface: NVMe, PCIe Gen5, single port
- Form factor: EDSFF E3.S (E3.Short 1T), Z-height 7.5 mm
- Carrier: EC1, hot plug
- Workload type: Mixed Use (MU)
- Flash type: TLC NAND (SK hynix PE1030)
- Endurance: 4.05 DWPD, 47,304 TB lifetime writes
- Max sequential read/write: 11,502 / 5,851 MiB/s
- Random read/write average latency: 56 / 10 us
- Random read/write IOPS (4KiB, Q=16/32): 544,111 / 545,439
- Max random read/write IOPS (4KiB, Q=256): 268,651 / 1,327,381
- Power: 4.40 W idle, 15.60 W max
- Security: SPDM, digitally signed firmware
- Compatible with HPE Gen11 and Gen12 servers (select platforms)

FAQs

Q: Which servers is the P77267-B21 compatible with?
A: It is designed for HPE Gen11 and Gen12 servers on select platforms that support EDSFF E3.S drives. Confirm E3.S bay support for your specific server model before ordering.

Q: What is the endurance rating of this drive?
A: It carries a Mixed Use rating of 4.05 DWPD, equating to 47,304 TB of lifetime writes.

Q: What form factor and interface does it use?
A: It is an EDSFF E3.S (E3.Short 1T) drive in an EC1 hot-plug carrier with a single-port NVMe PCIe Gen5 interface.

Q: Does it support hardware-level security features?
A: Yes. It supports SPDM (Security Protocol and Data Model) and uses digitally signed firmware.

Q: What workloads is this SSD suited to?
A: As a Mixed Use drive it suits databases, virtualization, big data analytics, cloud computing, business intelligence and HPC workloads with a balance of reads and writes.

Q: Is it hot-pluggable?
A: Yes. It is a hot-plug drive in an EC1 carrier, so it can be installed or replaced in a compatible E3.S bay without powering down the server.
