HPE P77265-B21 | 3.2TB NVMe Gen5 Mixed Use SSD, E3.S EC1, SPDM, PE1030

Authorised HPE Partner

SKU:P77265-B21

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

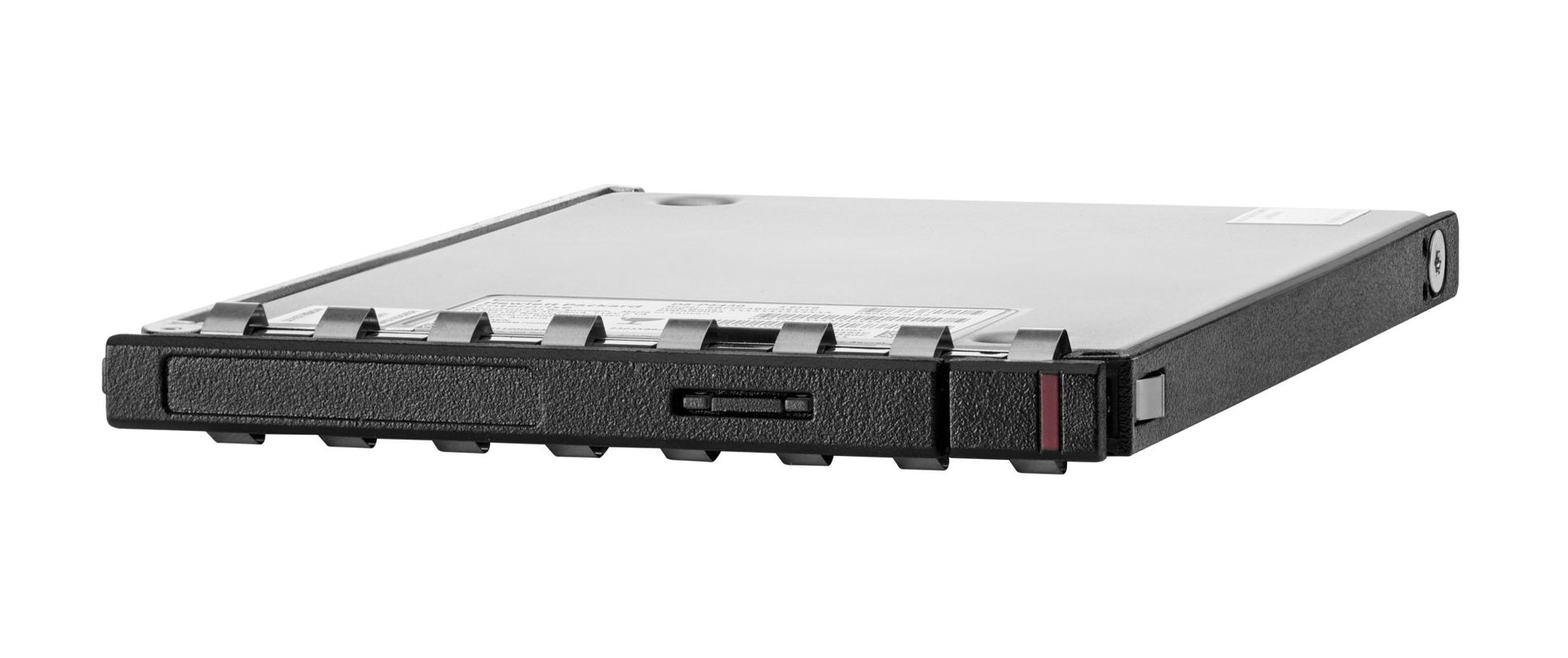

The 3.2TB NVMe PCIe Gen5 Mixed Use SSD in the EDSFF E3.S 1T form factor with an EC1 thin carrier is built for HPE Gen11 and Gen12 servers running mixed read and write workloads. It is based on the SK hynix PE1030 controller and TLC flash, delivering up to 11,038 MiB/s sequential read and 6,416 MiB/s sequential write with high IOPS per watt.

SPDM support and digitally signed firmware add a hardware-level security layer, while full data-path error detection helps maintain data accuracy. The E3.S form factor allows higher drive density than 2.5-inch SFF drives, with improved thermals, power and scalability for high I/O applications. The drive is hot plug and rated at 4.03 DWPD.

Features

- PCIe Gen5 bandwidth for mixed-use workloads that need high IOPS per watt and low cost per IOPS
- Full data-path error detection to maintain data accuracy
- Improved thermals, power and scalability for high I/O applications
- EDSFF E3.S allows higher drive density than 2.5-inch SFF drives
- SPDM support and digitally signed firmware
- Hot plug design for serviceability

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 3,200 GB (3.2 TB)
- Interface: NVMe PCIe Gen5
- Form factor: EDSFF E3.S, EC1 (E3.S 1T Thin Carrier)
- Workload type: Mixed Use (MU)
- Endurance: 4.03 DWPD, 23,535 TB lifetime writes
- Flash type: TLC
- Controller/NAND: SK hynix PE1030
- Max sequential read / write: 11,038 / 6,416 MiB/s
- Random read / write IOPS (4KiB, Q=16): 267,089 / 210,452
- Max random read IOPS (4KiB): 1,296,764 at Q256
- Random read / write average latency (4KiB, Q1): 55 / 10 us
- Plug type: Hot Plug
- Port: Single
- Security: SPDM, digitally signed firmware
- Server generation supported: Gen11, Gen12 (select platforms)
- Warranty: 3 years

FAQs

Q: Which servers is this SSD designed for?
A: It is an HPE option kit for Gen11 and Gen12 servers on select platforms that support EDSFF E3.S NVMe drives. Check your server's QuickSpecs for bay and backplane support.

Q: What does Mixed Use mean for this drive?
A: Mixed Use drives are rated for balanced read and write workloads. This drive is rated at 4.03 DWPD with 23,535 TB of lifetime writes.

Q: What is the EC1 carrier?
A: EC1 is the E3.S 1T thin carrier, the form factor this drive ships in for compatible HPE servers.

Q: Does this drive support hardware security features?
A: Yes. It supports SPDM and uses digitally signed firmware.

Q: What interface speed does it use?
A: It uses NVMe over PCIe Gen5, with up to 11,038 MiB/s sequential read and 6,416 MiB/s sequential write.

Q: Can I use it in a server with 2.5-inch SFF bays?
A: No. This is an EDSFF E3.S drive and needs a server with E3.S drive bays.
