HPE P72652-B21 | AMD EPYC 9535 Server Processor, 64-Core, 2.4GHz, 256MB L3

Authorised HPE Partner

SKU:P72652-B21

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

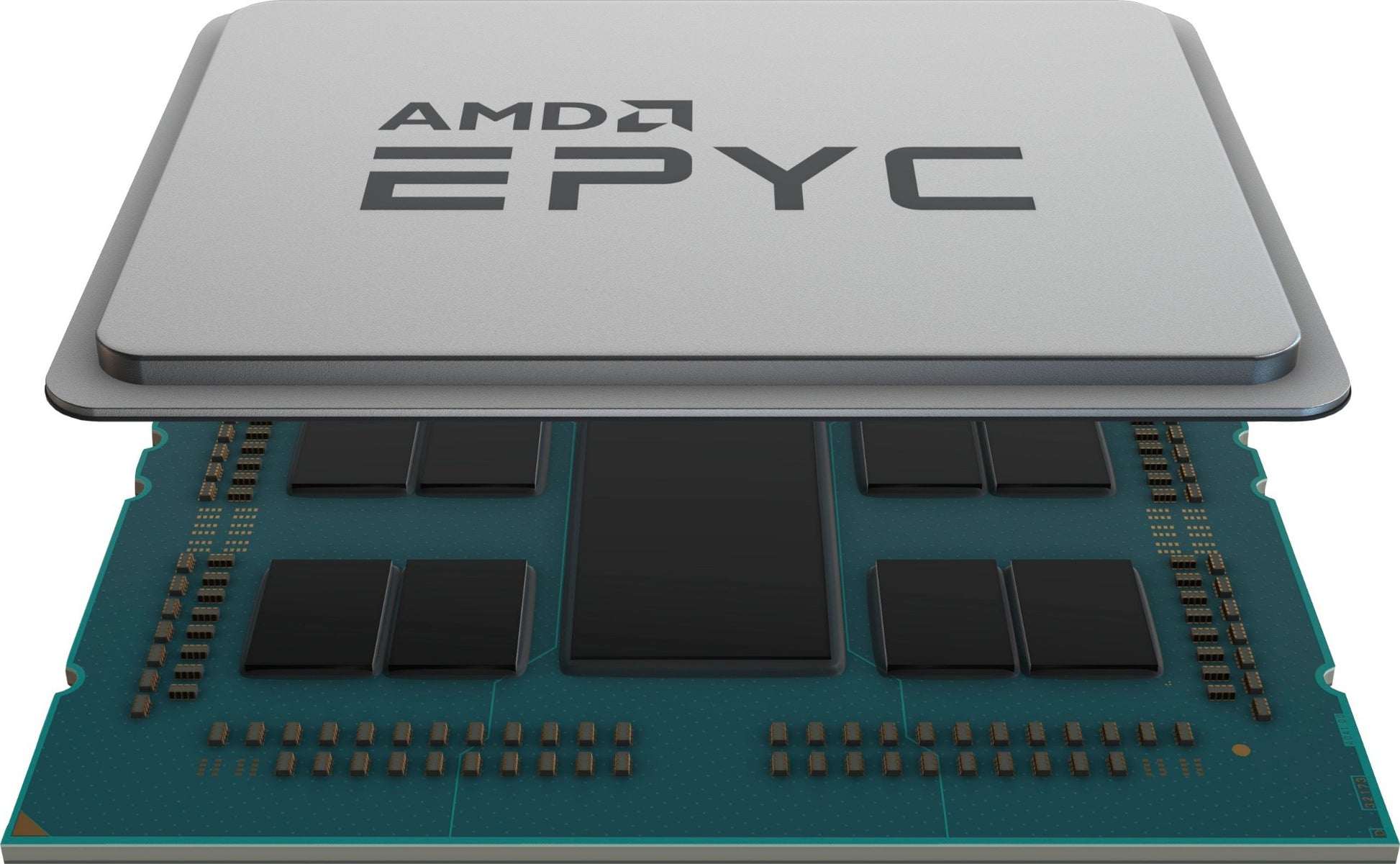

The AMD EPYC 9535 server processor is a 64-core, 128-thread CPU with a 2.4GHz base clock, 256MB of L3 cache and a 300W default TDP. Supplied as an HPE option kit, it uses the SP5 socket and supports 1P and 2P server configurations, making it well suited to analytics, VDI, VM density, application dev/test, CAE and high-capacity database workloads.

Part of the AMD EPYC 9005 Series, this processor delivers 12-channel DDR5 memory support at up to 6400 MT/s and PCIe 5.0 x128 connectivity. AMD Infinity Guard security technologies and AMD Infinity Architecture help protect workloads and maintain throughput across demanding enterprise deployments.

Features

- 64 cores and 128 threads for high VM density and parallel workloads
- 256MB L3 cache to accelerate data-intensive applications
- 12-channel DDR5 memory support up to 6400 MT/s
- PCIe 5.0 x128 for high-bandwidth storage, networking and accelerators
- AMD Infinity Guard security technologies
- AMD Infinity Architecture
- Configurable TDP from 240W to 300W to suit power and cooling limits
- Supports 1P and 2P server configurations

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor model: AMD EPYC 9535
- Cores / threads: 64 cores / 128 threads
- Base clock: 2.4GHz, up to 4.3GHz max boost
- All-core boost speed: 3.5GHz
- Cache: 256MB L3
- TDP: 300W default, configurable 240-300W
- Socket: SP5
- Socket count: 1P / 2P
- Memory: 12-channel DDR5, up to 6400 MT/s
- Per-socket memory bandwidth: 614GB/s
- PCI Express: PCIe 5.0 x128

FAQs

Q: How many cores and threads does the AMD EPYC 9535 have?
A: The EPYC 9535 has 64 cores and 128 threads, with a 2.4GHz base clock and boost speeds up to 4.3GHz.

Q: What socket does this processor use?
A: It uses the SP5 socket and supports both 1P and 2P server configurations on compatible platforms.

Q: What type and speed of memory does it support?
A: It supports 12-channel DDR5 memory at up to 6400 MT/s, with up to 614GB/s of memory bandwidth per socket.

Q: What is the power rating of the EPYC 9535?
A: The default TDP is 300W, and it is configurable between 240W and 300W depending on platform power and cooling requirements.

Q: Which workloads is the EPYC 9535 suited to?
A: It is aimed at analytics, VDI, VM density, application dev/test, CAE and high-capacity database workloads.

Q: Does it support PCIe 5.0?
A: Yes, the processor provides PCIe 5.0 with x128 lanes for high-bandwidth storage, networking and accelerator connectivity.
