HPE P63871-B21 | PM7 1.6TB SAS 24G SFF Mixed Use SED FIPS 140-2 SSD

Authorised HPE Partner

SKU:P63871-B21

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

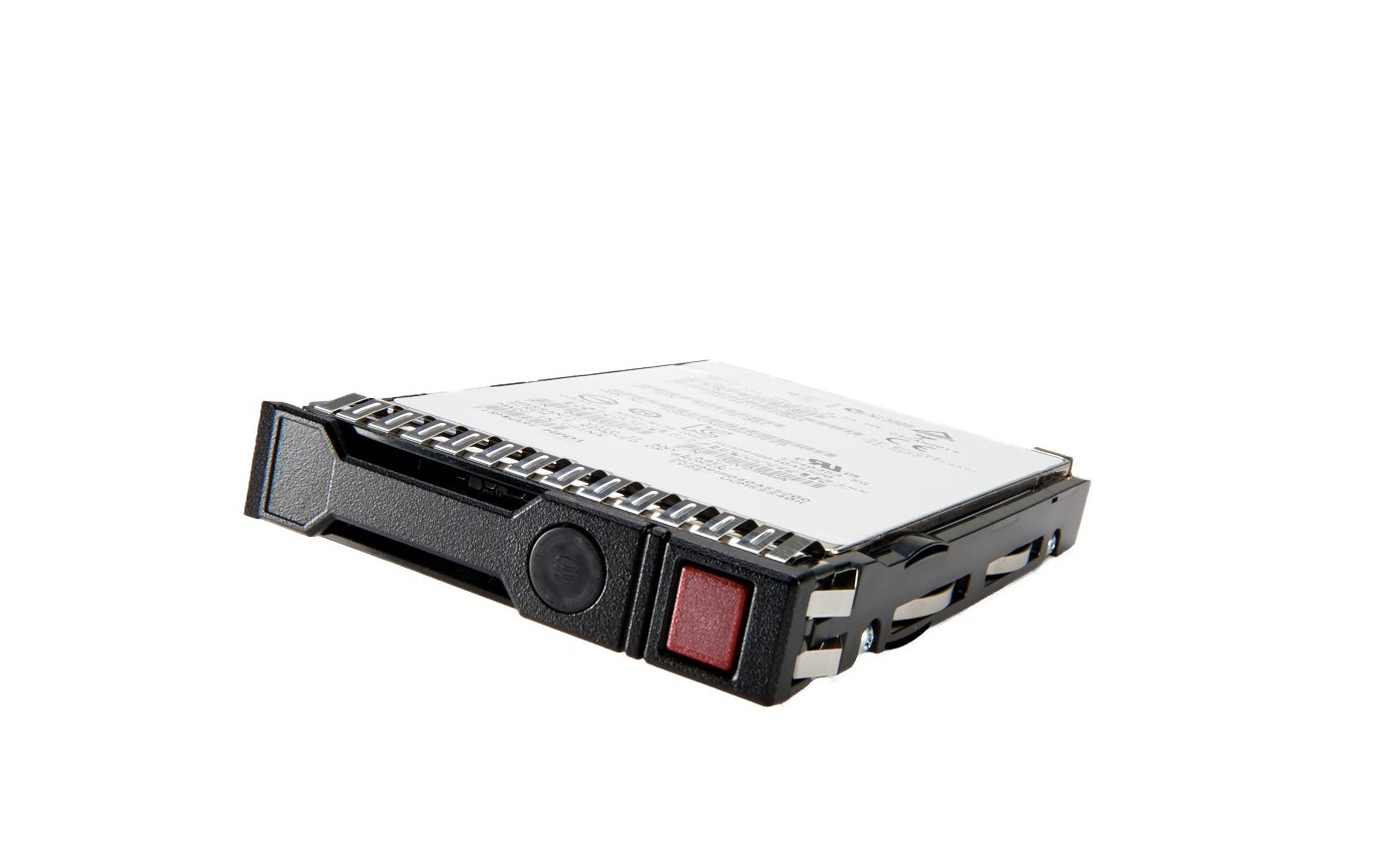

The HPE PM7 1.6TB SAS Mixed Use SFF SSD is an enterprise-grade 2.5-inch hot-plug solid state drive engineered for demanding workloads including big data analytics, virtualisation, cloud computing, and high-performance computing. Featuring a full-duplex SAS interface at up to 24Gb/s, it delivers up to 325,959 random write IOPS and 2,047 MiB/s sequential read throughput, backed by 3 DWPD endurance and 8,760 TBW lifetime writes. Hardware-level FIPS 140-2 self-encryption ensures data security at rest without compromising performance.

Designed for HPE ProLiant Gen10 Plus, Gen11, and Gen12 server platforms, this Basic Carrier SSD supports hot-plug replacement for non-disruptive maintenance. Surprise power-loss protection, full data-path error detection, Instant Secure Erase, and digitally signed firmware deliver the reliability and supply chain integrity that enterprise IT teams require.

Features

- FIPS 140-2 validated self-encrypting drive (SED) for hardware-level data security at rest
- Full-duplex SAS interface at up to 24Gb/s for maximum bandwidth in enterprise storage environments
- Hot-plug capable — replace drives non-disruptively in supported HPE ProLiant servers
- 3 DWPD endurance with 8,760 TBW lifetime writes, optimised for mixed-use enterprise workloads
- Surprise power-loss protection preserves data integrity during unexpected outages
- Full data-path error detection ensures end-to-end data accuracy
- Instant Secure Erase enables fast, compliant drive sanitisation for redeployment or retirement
- Digitally signed firmware protects against unauthorised firmware modifications for supply chain security
- Compatible with HPE ProLiant Gen10 Plus, Gen11, and Gen12 server platforms
- Optimised for big data analytics, virtualisation, cloud computing, database, and HPC applications

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 1.6 TB
- Interface: SAS, up to 24Gb/s full-duplex
- Form Factor: SFF 2.5-inch, 15mm height
- Carrier Type: Basic Carrier (BC)
- Workload Rating: Mixed Use (3 DWPD)
- Lifetime Writes: 8,760 TBW
- Flash Type: TLC
- Random Read IOPS (4KiB, Q=16): 184,642
- Max Random Read IOPS (4KiB, Q=64): 308,406
- Random Write IOPS (4KiB, Q=16): 317,376
- Max Random Write IOPS (4KiB, Q=128): 325,959
- Max Sequential Read Throughput: 2,047 MiB/s
- Max Sequential Write Throughput: 2,046 MiB/s
- Random Read Average Latency: 78 µs
- Random Write Average Latency: 23 µs
- Encryption: Self-Encrypting Drive (SED), FIPS 140-2 compliant
- Hot Pluggable: Yes
- Power Consumption: 16 W
- Compatibility: HPE ProLiant Gen10 Plus, Gen11, Gen12 Servers
- HPE Model Number: MO001600PXVRU
- HPE Spare Part Number: P64610-001

FAQs

Q: What servers is the HPE PM7 1.6TB SAS SSD compatible with?
A: This SSD is compatible with HPE ProLiant Gen10 Plus, Gen11, and Gen12 server platforms. Always verify compatibility with HPE's online configurator or contact IP Trading for guidance specific to your server model.

Q: What does FIPS 140-2 self-encryption mean for data security?
A: FIPS 140-2 self-encryption means the drive performs AES encryption in hardware, with the encryption engine validated to the US government FIPS 140-2 standard. Data at rest is protected without any software overhead, and the drive supports Instant Secure Erase for secure decommissioning or redeployment.

Q: Is this drive suitable for virtualisation and database workloads?
A: Yes. The Mixed Use (3 DWPD) rating and high random IOPS — up to 325,959 write IOPS and 308,406 read IOPS — make this SSD well-suited for virtualisation, database, big data analytics, cloud computing, and HPC workloads that require sustained read/write performance.

Q: Can I replace this drive without powering down the server?
A: Yes. The HPE PM7 SSD is hot-plug capable, allowing non-disruptive drive replacement in supported HPE ProLiant servers without taking the system offline.

Q: What is the difference between Basic Carrier (BC) and SmartCarrier variants?
A: Basic Carrier (BC) drives use a standard SFF drive carrier without the LED activity and fault indicators found on SmartCarrier versions. BC drives are the cost-effective choice when carrier-level diagnostics are not required by your deployment.

Q: Can I purchase this HPE SSD in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller supplying HPE server storage including the PM7 SSD range. Order online or contact our team for volume pricing, lead times, and compatibility advice with fast shipping across Australia.
