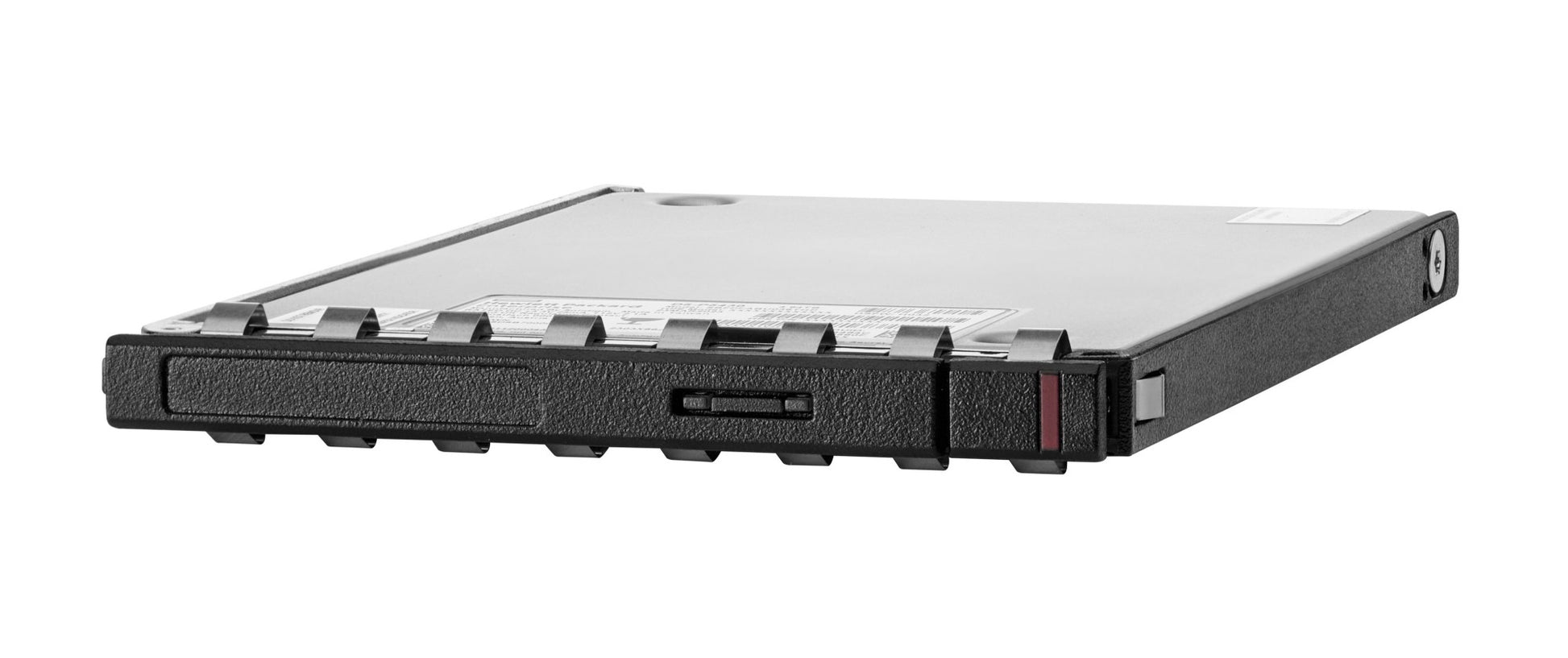

HPE P61195-B21 | NVMe Gen5 Mixed Use SSD, 6.4TB, E3.S EC1 Thin Carrier, SPDM

Authorised HPE Partner

SKU:P61195-B21

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

This 6.4TB NVMe Gen5 Mixed Use SSD uses the EDSFF E3.S form factor in a hot-plug E3.S 1T Thin Carrier (EC1), built for HPE Gen11 and Gen12 servers on select platforms. The PCIe 5.0 interface and 3 DWPD mixed-use endurance suit analytics, cloud, HPC, database and virtualisation workloads, delivering 216,271 random read IOPS and 527,456 random write IOPS (4KiB, Q=16).

TLC flash, a single-port design and digitally signed firmware (SPDM) support secure, reliable operation in enterprise and data centre deployments. The 7.5 mm E3.S format enables higher drive density, with room for 20 drives in a 1U server and 36 in a 2U server, while helping reduce power per server compared with earlier form factors.

Features

- Higher IOPS and lower latency for enterprise servers
- Full data-path error detection for data accuracy
- Improved thermals, power and scalability for high-I/O applications
- PCIe Gen5 performance with EDSFF E3.S SSDs
- Higher density: 20 E3.S drives in a 1U server and 36 in a 2U server
- Lower power per server than previous form factors
- Digitally signed firmware (SPDM) for secure operation

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 6.4TB (6,400GB)
- Interface: NVMe, PCIe Gen5
- Form factor: EDSFF E3.S, 7.5 mm height
- Carrier: EC1 (E3.S 1T Thin Carrier), hot-plug
- Workload type: Mixed Use
- Endurance: 3 DWPD (rating 35,040)
- Random read: 216,271 IOPS (4KiB, Q=16)
- Random write: 527,456 IOPS (4KiB, Q=16)
- Flash type: TLC, single port
- Digitally signed firmware (SPDM): Yes
- Maximum power: 24 W
- Server support: HPE Gen11 and Gen12 (select platforms)

FAQs

Q: Which servers is this SSD compatible with?
A: It is designed for HPE Gen11 and Gen12 servers on select platforms that support EDSFF E3.S drives. Check your server model's drive backplane support before ordering.

Q: What workloads is this drive suited to?
A: It is a mixed-use drive rated at 3 DWPD, suited to analytics, cloud, HPC, database and virtualisation workloads.

Q: What does the EC1 carrier mean?
A: EC1 refers to the E3.S 1T Thin Carrier, a hot-plug carrier that allows the drive to be installed and replaced without powering down the server.

Q: What interface speed does it use?
A: It uses an NVMe PCIe Gen5 interface in a single-port design, giving up to 216,271 random read IOPS and 527,456 random write IOPS at 4KiB, Q=16.

Q: What does SPDM mean for this SSD?
A: The drive supports digitally signed firmware (SPDM), which helps ensure only authentic firmware is loaded onto the device.

Q: Can I use this drive in a server with U.2 or SAS bays?
A: No. This is an EDSFF E3.S drive and needs a server and backplane built for E3.S bays. It is not interchangeable with U.2, SAS or SATA drive bays.
