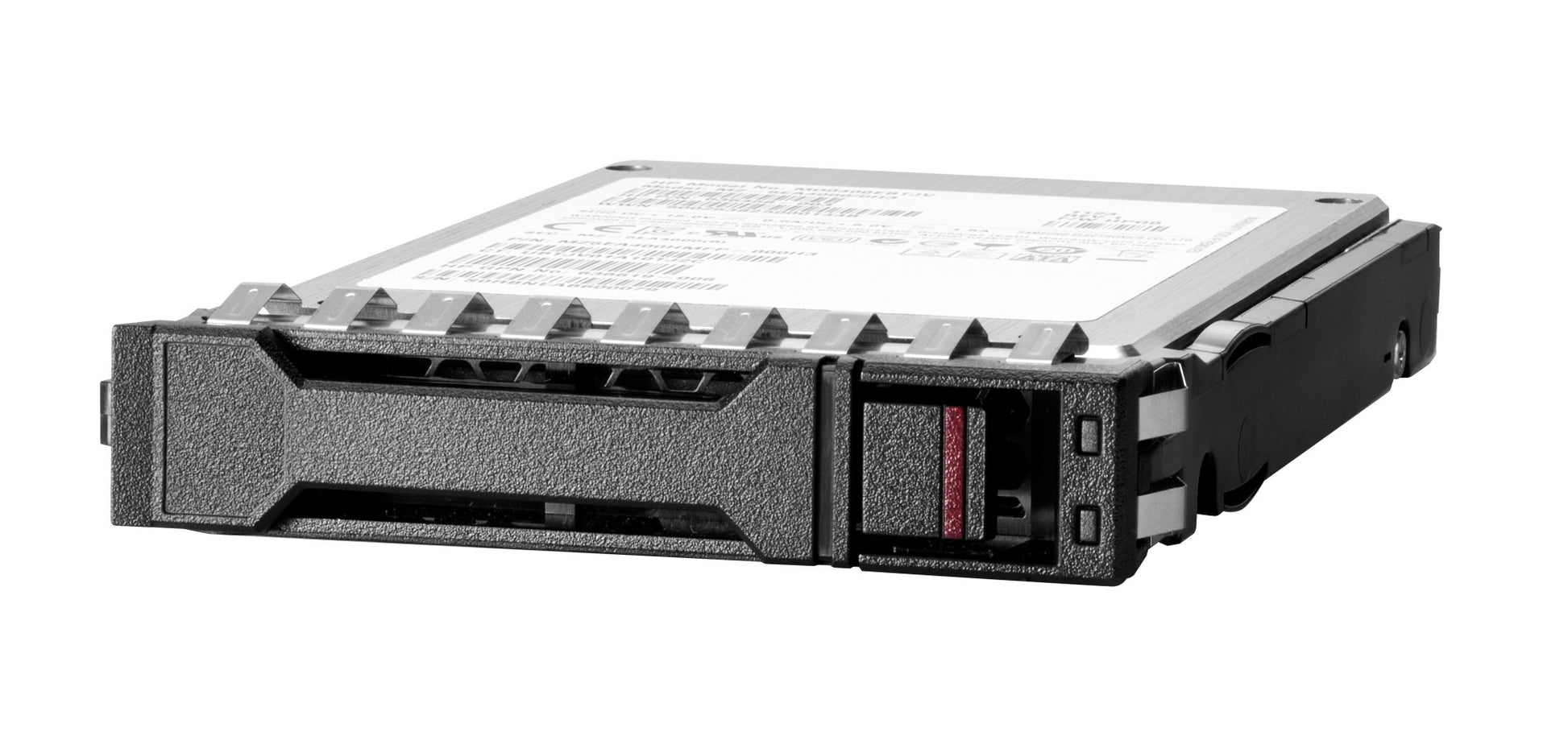

• HPE P61059-B21 black metal server hard drive tray with red indicator light and textured grip for 6.4TB NVMe Gen4 SSD
1 1

HPE

HPE P61059-B21 | 6.4TB NVMe Gen4 U.3 SFF SSD, Mixed Use, FIPS 140-3 SED, 3 DWPD

HPE P61059-B21 | 6.4TB NVMe Gen4 U.3 SFF SSD, Mixed Use, FIPS 140-3 SED, 3 DWPD

Authorised HPE Partner

P61059-B21

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The HPE CM7 6.4TB NVMe Gen4 U.3 SFF SSD delivers enterprise-grade mixed use performance for demanding workloads including Big Data analytics, HPC, virtualisation, and cloud computing. Built on the KIOXIA CM7 controller with a PCIe Gen4 interface, it achieves up to 2,450,000 random read IOPS and 13,351 MiB/s sequential read throughput — significantly outpacing SAS and SATA alternatives. Hardware-based self-encryption meets FIPS 140-3 and TCG Opal standards, making it suitable for government and regulated enterprise environments requiring certified data security at rest.

Rated at 3 DWPD for 5 years (35,040 TBW), this drive sustains intensive mixed read/write cycles without compromising reliability. The U.3 Basic Carrier form factor is hot-plug capable and 100% backwards compatible with NVMe U.2 backplanes on HPE Gen10 servers, simplifying integration into existing infrastructure. Full data-path error detection and digitally signed firmware further protect data integrity across the drive's operational life.

Features

- FIPS 140-3 certified self-encrypting drive (SED) for government and regulated enterprise compliance
- NVMe PCIe Gen4 interface delivers industry-leading bandwidth and low latency direct to applications
- 100% backwards compatible with NVMe U.2 backplanes on HPE Gen10 servers
- 3 DWPD endurance rating sustains intensive mixed read/write workloads over a 5-year lifespan
- Hot-plug capable via Basic Carrier (BC) for high availability and minimal downtime maintenance
- Full data-path error detection maintains data accuracy across the entire I/O chain
- Digitally signed firmware prevents unauthorised modification and enhances platform security
- Optimised for Big Data analytics, cloud computing, HPC, database, business intelligence, and virtualisation
- TCG Opal 2.0 compliant encryption for interoperability with enterprise key management solutions
- Validated to 3.35 million hour MTBF through extensive reliability testing

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Capacity: 6.4TB
- Form Factor: 2.5" SFF (Small Form Factor) Basic Carrier (BC)
- Interface: NVMe U.3 PCIe Gen4
- Workload Type: Mixed Use (MU)
- Endurance: 3 DWPD for 5 Years
- Min Terabytes Written (TBW): 35,040 TB
- Max Random Read IOPS (4KiB): 2,450,000
- Max Random Write IOPS (4KiB): 550,000
- Max Sequential Read: 13,351 MiB/s
- Max Sequential Write: 6,437 MiB/s
- Controller: KIOXIA CM7
- Security: Self-Encrypting Drive (SED), FIPS 140-3 Certified
- Encryption Standard: TCG Opal / FIPS 140-3
- Hot-Plug: Yes (Basic Carrier)

FAQs

Q: What servers is the HPE P61059-B21 6.4TB NVMe SSD compatible with?
A: This drive is designed for HPE ProLiant Gen10 and Gen10 Plus servers with NVMe U.3 or U.2-compatible backplanes. It is 100% backwards compatible with NVMe U.2 SSD backplanes on HPE Gen10 servers, allowing deployment into existing HPE infrastructure without backplane replacement.

Q: What does the FIPS 140-3 certification mean for this SSD?
A: FIPS 140-3 is a US federal cryptographic module security standard. This drive's hardware-based self-encryption has been independently validated to FIPS 140-3 Level 2, making it suitable for government agencies, defence contractors, and regulated enterprises that require certified encryption of data at rest.

Q: What is the difference between U.3 and U.2 NVMe interfaces?
A: U.3 is a tri-mode interface standard that supports NVMe, SATA, and SAS over the same physical connector, providing greater flexibility. U.3 SSDs are backwards compatible with U.2 NVMe backplanes, so the P61059-B21 can slot into existing U.2 NVMe bays on HPE Gen10 servers while taking full advantage of PCIe Gen4 bandwidth when the platform supports it.

Q: Is 3 DWPD sufficient for mixed use database and virtualisation workloads?
A: Yes. A 3 DWPD (Drive Writes Per Day) rating means this 6.4TB drive can sustain approximately 19.2TB of writes per day over a 5-year rated lifespan — well suited to workloads with a balanced mix of reads and writes such as OLTP databases, virtual machine storage, and business intelligence applications.

Q: Can I purchase this HPE SSD in Australia from IP Trading?
A: Yes. IP Trading (iptrading.com.au) supplies HPE server storage options including the P61059-B21 and can provide competitive pricing with local Australian support. Contact our team for volume pricing, compatibility checks, or lead time enquiries.

Q: How does PCIe Gen4 benefit this drive compared to Gen3 NVMe SSDs?
A: PCIe Gen4 doubles the per-lane bandwidth compared to Gen3, enabling the CM7 SSD to achieve sequential read speeds of up to 13,351 MiB/s and random read IOPS of up to 2,450,000. This is particularly beneficial for latency-sensitive workloads such as real-time analytics, HPC, and high-density virtualisation where storage throughput is a bottleneck.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
