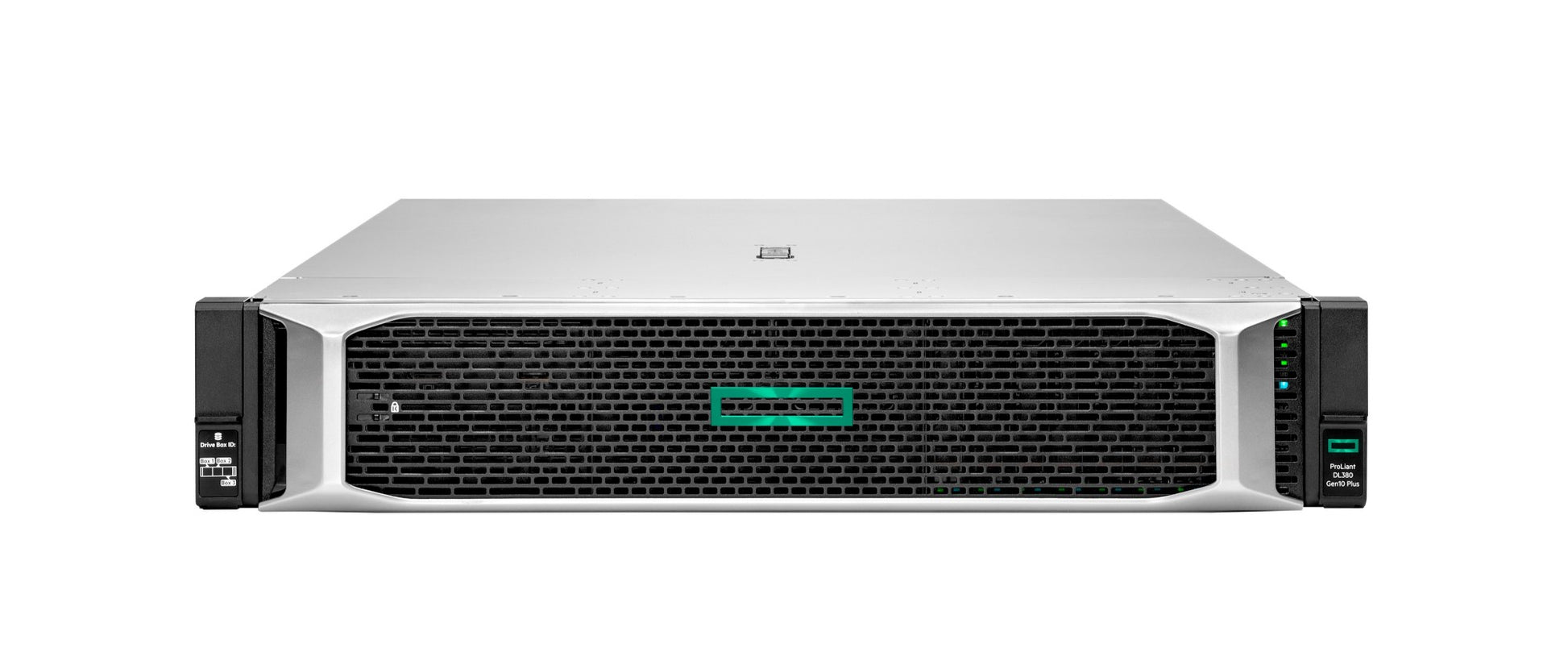

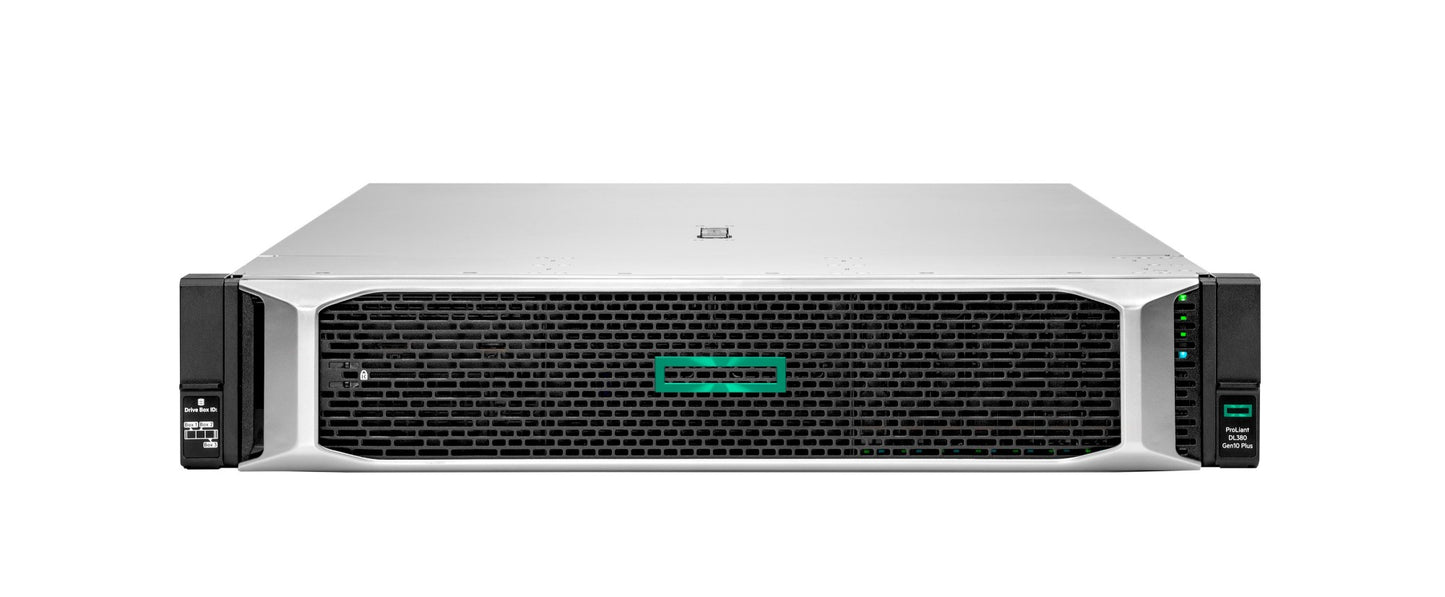

HPE P55246-B21 | ProLiant DL380 Gen10 Plus 2U Rack Server, Xeon 4310, 32GB, 8SFF

Authorised HPE Partner

SKU:P55246-B21

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE ProLiant DL380 Gen10 Plus 2U rack server is a general-purpose enterprise platform supplied with one 12-core Intel Xeon Silver 4310 processor, 32GB DDR4-3200 SmartMemory and an 8 SFF drive bay configuration. This SKU includes the HPE MR416i-p storage controller with 4GB cache, a Broadcom BCM57412 10Gb 2-port SFP+ OCP3 adapter and a single 800W Platinum hot-plug power supply, making it ready for virtualisation, database and consolidation workloads.

HPE iLO 5 provides secure remote management with Silicon Root of Trust, while the Tri-Mode U.3 backplane allows flexible SAS, SATA and NVMe storage options. The platform supports HPE SmartMemory DDR4 and optional Intel Optane Persistent Memory 200 Series, giving room to scale memory and storage as requirements grow.

Features

- HPE iLO 5 remote management with Silicon Root of Trust
- HPE SmartMemory DDR4 support, with optional Intel Optane Persistent Memory 200 Series
- Tri-Mode U.3 backplane for flexible SAS, SATA and NVMe storage options
- OCP 3.0 10GbE SFP+ networking included
- Platinum-efficiency 800W power supply

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U rack
- Processor: 1 x Intel Xeon 4310 2.1GHz, 12 cores, 120W, 18MB L3 cache
- Memory: 32GB (1 x 32GB) RDIMM 2Rx4 DDR4-3200 HPE SmartMemory
- Drive bays: 8 SFF with Tri-Mode 24G U.3 BC backplane (open bay, no drives included)
- Storage controller: HPE MR416i-p with 4GB cache and Smart Storage Battery
- Network: Broadcom BCM57412 10Gb 2-port SFP+ OCP3 adapter
- Power supply: 1 x 800W Platinum hot-plug power supply
- Management: HPE iLO 5

FAQs

Q: Are drives included with this server?
A: No. The 8 SFF bays are supplied open with no drives installed, so SAS, SATA or NVMe drives need to be added separately.

Q: What processor and memory does this configuration include?
A: It includes one 12-core Intel Xeon Silver 4310 2.1GHz processor and 32GB (1 x 32GB) DDR4-3200 HPE SmartMemory RDIMM.

Q: What network connectivity is built in?
A: A Broadcom BCM57412 10Gb 2-port SFP+ OCP3 adapter is included, so SFP+ transceivers or direct attach cables are required to connect to a 10GbE switch.

Q: Which storage controller is fitted?
A: The HPE MR416i-p controller with 4GB cache and Smart Storage Battery is included, supporting hardware RAID across the 8 SFF bays.

Q: What remote management is available?
A: HPE iLO 5 is included, providing remote console access, monitoring and Silicon Root of Trust security.

Q: Can the memory be expanded later?
A: Yes. The platform supports HPE SmartMemory DDR4 and optional Intel Optane Persistent Memory 200 Series, so memory can be expanded as workloads grow.
