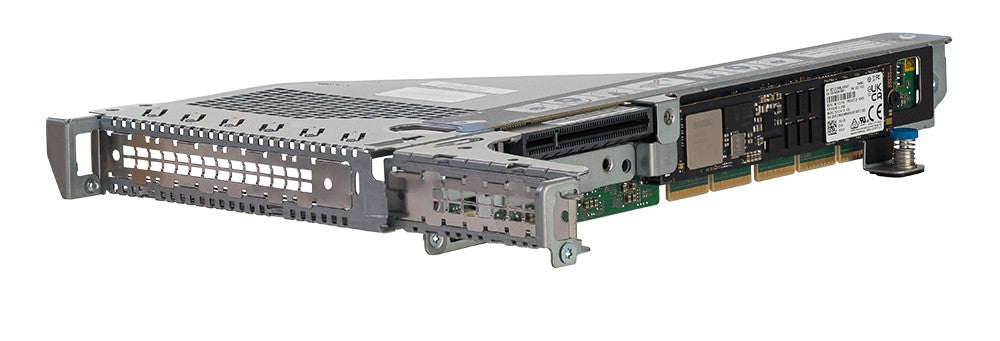

• HPE P55097-B21 ProLiant DL385 Gen11 x16 2U riser with gray metal and green PCB
1 1

HPE

HPE P55097-B21 | ProLiant DL385 Gen11 x16 Secondary Riser Kit, Slot 6, 2U

HPE P55097-B21 | ProLiant DL385 Gen11 x16 Secondary Riser Kit, Slot 6, 2U

Authorised HPE Partner

P55097-B21

Stock Status: Enquire

$130.30 inc. GST
$118.45 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The HPE ProLiant DL385 Gen11 x16 2U Secondary Riser Kit adds a PCIe 5.0 x16 slot (Slot 6) to the secondary riser position of a 2U DL385 Gen11 server. It supports one full-height, half-length expansion card and attaches to Processor 2, making it a practical way to add network, storage controller or GPU capacity to a dual-processor build.

This kit is the starting point of the Secondary Riser configuration for the DL385 Gen11. It can be expanded later with the P68392-B21 upgrade riser kit for two slots in total, or the P57891-B21 upgrade riser kit for three slots in total, so the server can grow as workloads change.

Features

- Adds one PCIe 5.0 x16 slot to the secondary riser position of the DL385 Gen11
- Supports full-height, half-length cards such as NICs, storage controllers and GPUs
- Connected to Processor 2 for dual-processor expansion
- Upgradable with the P68392-B21 kit for two slots in total
- Upgradable with the P57891-B21 kit for three slots in total

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: P55097-B21
- Compatible server: HPE ProLiant DL385 Gen11 (2U)
- Riser position: Secondary
- Slot provided: Slot 6
- Slot technology: PCIe 5.0
- Bus width: x16
- Connector width: x16
- Slot form factor: Full-height, half-length
- Processor attachment: Processor 2
- Expandable with P68392-B21 (adds Slot 5 for 2 slots total)
- Expandable with P57891-B21 (adds Slots 4 and 5 for 3 slots total)

FAQs

Q: Which server is the P55097-B21 riser kit designed for?
A: It is designed for the 2U HPE ProLiant DL385 Gen11 chassis.

Q: How many expansion slots does this riser kit provide?
A: It provides one PCIe 5.0 x16 full-height, half-length slot, identified as Slot 6.

Q: Which processor does the riser slot connect to?
A: The slot is connected to Processor 2, so a second processor needs to be installed to use it.

Q: Can I add more slots to the secondary riser later?
A: Yes. The P68392-B21 upgrade riser kit adds Slot 5 for two slots in total, and the P57891-B21 upgrade riser kit adds Slots 4 and 5 for three slots in total.

Q: What types of cards can be installed in this riser?
A: It accepts full-height, half-length PCIe cards such as network adapters, storage controllers and GPUs, subject to server configuration and power limits.
