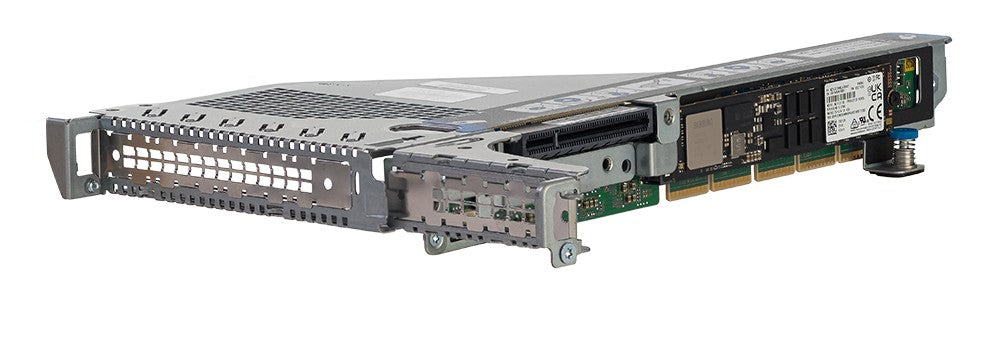

HPE P54288-B21 | ProLiant DL110 Gen11 Secondary Riser Kit, x16 FHHL, PCIe 5.0

Name: HPE P54288-B21 | ProLiant DL110 Gen11 Secondary Riser Kit, x16 FHHL, PCIe 5.0
Brand: HPE
SKU: P54288-B21
Price: 183.97 AUD
Availability: BackOrder

Authorised HPE Partner

SKU:P54288-B21

Stock Status: Enquire

$183.97 inc. GST

$167.25 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

This secondary PCIe riser kit for the HPE ProLiant DL110 Gen11 server adds a PCIe 5.0 x16 full-height, half-length slot (Slot 3). It suits deployments that need an extra expansion slot beyond the two slots on the standard primary riser, such as an additional NIC, HBA or GPU.

The kit is an optional HPE riser for the DL110 Gen11 and provides an x16 bus width and x16 connector width. Note that the secondary riser cannot be selected when the Intel Xeon 5423N processor option is chosen.

Features

- Enables Slot 3 (PCIe 5.0 x16 FHHL) on the DL110 Gen11, which is not available with the default primary riser
- Adds expansion capacity for a further FHHL PCIe 5.0 add-in card such as a NIC, HBA or GPU
- HPE-specific riser option designed for the DL110 Gen11
- Full x16 bus and connector width for bandwidth-hungry cards

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: P54288-B21
- Riser type: Secondary riser (optional)
- Compatible server: HPE ProLiant DL110 Gen11
- Slot number: 3
- PCIe technology: PCIe 5.0
- Bus width: x16
- Connector width: x16
- Slot form factor: Full-height, half-length (FHHL)
- Restriction: not selectable with the Intel Xeon 5423N processor

FAQs

Q: Which server is this riser kit compatible with?
A: It is designed for the HPE ProLiant DL110 Gen11 server.

Q: What slot does the secondary riser provide?
A: It provides one PCIe 5.0 x16 full-height, half-length slot, identified as Slot 3.

Q: Can I use this riser with any processor option?
A: No. The secondary riser cannot be selected if the Intel Xeon 5423N processor is chosen.

Q: What kinds of cards can I install in the added slot?
A: The slot accepts full-height, half-length PCIe add-in cards, for example network adapters, host bus adapters or GPUs, subject to the server's power and cooling limits.

Q: Is this riser included with the server by default?
A: No. It is an optional kit that adds Slot 3 in addition to the slots provided by the standard primary riser.
