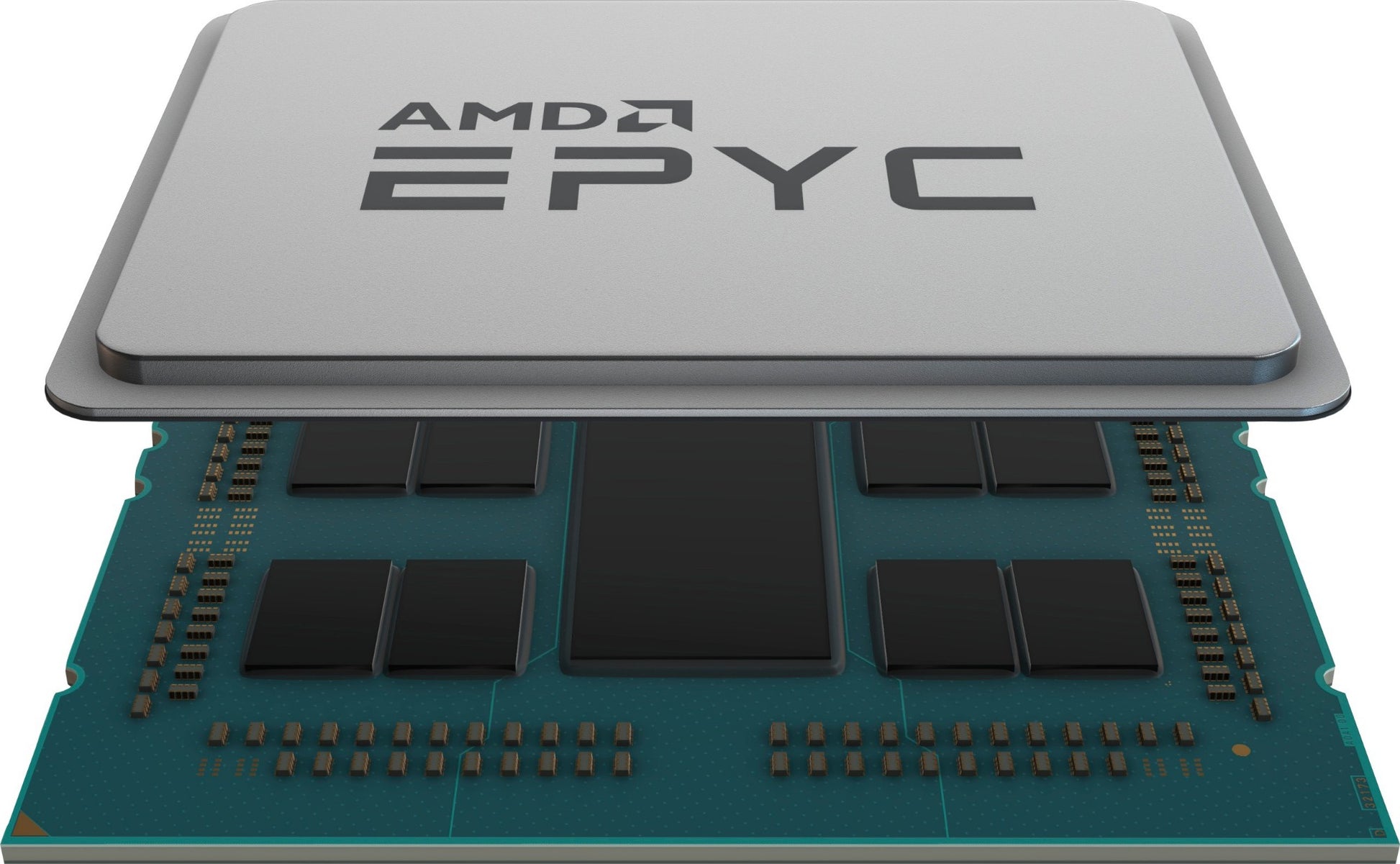

HPE P53709-B21 | AMD EPYC 9454P Processor, 48-Core, 2.75GHz, 290W

Authorised HPE Partner

SKU:P53709-B21

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The AMD EPYC 9454P is a 48-core, 96-thread server processor from the 4th Gen AMD EPYC 9004 series, running at a 2.75GHz base clock with boost up to 3.8GHz and a 290W TDP. As a P-series single-socket part, it suits single-processor ProLiant servers that need high core density, large cache and strong memory bandwidth in one SP5 socket.

The processor supports 12-channel DDR5-4800 memory with up to 460.8 GB/s of bandwidth and provides up to 128 PCIe 5.0 lanes for GPUs, NVMe storage and high-speed networking. It is built on a 5 nm process with 256 MB of L3 cache and is compatible with ProLiant DL325 Gen11 and DL345 Gen11 servers.

Features

- 4th Gen AMD EPYC 9004 series architecture
- Single-socket (P-series) design for single-processor servers
- 12-channel DDR5 memory support for high memory bandwidth
- PCIe 5.0 with up to 128 lanes for GPUs, NVMe and fast networking
- 5 nm process technology with 256 MB L3 cache

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor model: AMD EPYC 9454P
- Cores / threads: 48 / 96
- Base clock: 2.75 GHz, boost up to 3.8 GHz
- L3 cache: 256 MB, L2 cache: 48 MB
- TDP: 290 W
- Socket: SP5
- Memory: DDR5-4800, 12 channels, up to 460.8 GB/s bandwidth
- PCI Express: 5.0, up to 128 lanes
- Process technology: 5 nm
- On-board graphics: No
- Compatible with: ProLiant DL325 Gen11, DL345 Gen11

FAQs

Q: Which HPE servers is the P53709-B21 compatible with?
A: It is compatible with HPE ProLiant DL325 Gen11 and DL345 Gen11 servers.

Q: Can the EPYC 9454P be used in a dual-socket server?
A: No. The P-series suffix means it is a single-socket-only processor and is intended for single-processor systems.

Q: What memory does the AMD EPYC 9454P support?
A: It supports 12 channels of DDR5 memory at up to 4800 MT/s, giving up to 460.8 GB/s of memory bandwidth.

Q: How many cores and threads does this processor have?
A: It has 48 cores and 96 threads, with a 2.75GHz base clock and boost up to 3.8GHz.

Q: Does this processor include on-board graphics?
A: No. It has no integrated graphics, so server management or a separate GPU is used for display output.

Q: What socket and PCIe generation does it use?
A: It uses the SP5 socket and provides up to 128 PCIe 5.0 lanes.
