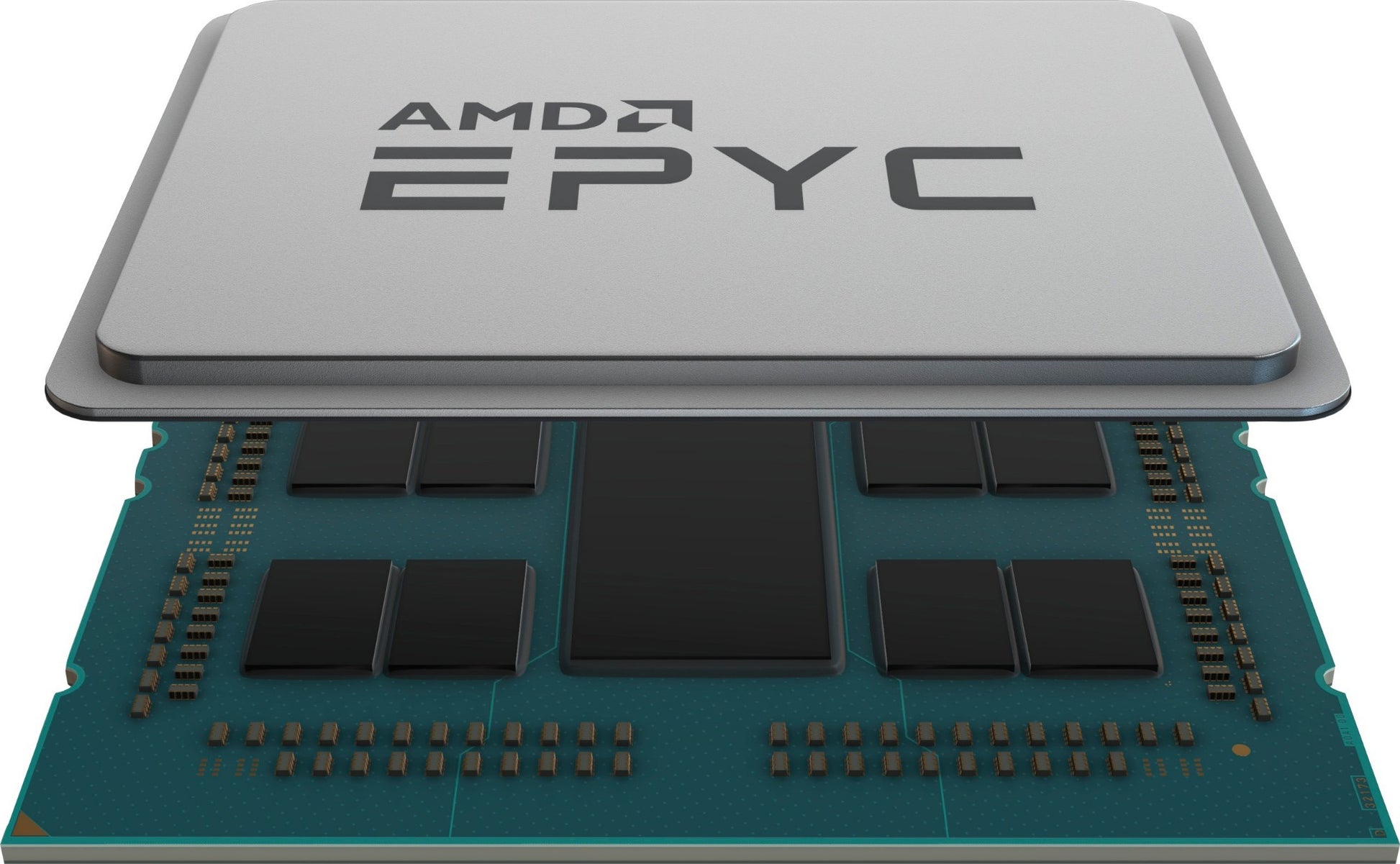

HPE P53696-B21 | AMD EPYC 9654 96-Core 2.4GHz 360W SP5 Server Processor

Authorised HPE Partner

SKU:P53696-B21

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The AMD EPYC 9654 server processor delivers 96 Zen 4 cores and 192 threads at a 2.4GHz base clock with a 360W TDP, in the SP5 socket. It is an HPE option processor for ProLiant Gen11 servers, suited to dense virtualisation, high-performance computing and data-intensive workloads that need maximum core counts per socket.

Built on the AMD EPYC 9004 Series (Genoa) platform using a 5nm process, it provides 384MB of L3 cache, 12-channel DDR5 memory support and PCIe Gen5 connectivity. Boost frequencies reach up to 3.7GHz for lightly threaded demands.

Features

- 96 Zen 4 cores and 192 threads for dense compute and virtualisation workloads
- Zen 4 architecture on a 5nm process
- 12-channel DDR5 memory support for high memory bandwidth
- PCIe Gen5 support for next-generation storage and accelerators
- 384MB L3 cache
- Qualified as an HPE option for ProLiant Gen11 servers

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: P53696-B21
- Cores: 96
- Threads: 192
- Base frequency: 2.4 GHz
- Max boost frequency: up to 3.7 GHz
- L3 cache: 384 MB
- TDP: 360 W
- Socket: SP5 (LGA 6096)

FAQs

Q: Which HPE servers is the P53696-B21 processor designed for?
A: It is an HPE option processor for ProLiant Gen11 servers that use the SP5 socket.

Q: What socket does the AMD EPYC 9654 use?
A: It uses the SP5 socket (LGA 6096), so it requires a motherboard and server platform built for SP5 processors.

Q: How many cores and threads does this processor have?
A: It has 96 cores and 192 threads, with a 2.4GHz base clock and boost frequencies up to 3.7GHz.

Q: What type of memory does the EPYC 9654 support?
A: It supports 12-channel DDR5 memory, which provides high memory bandwidth for data-intensive workloads.

Q: What is the thermal design power of this CPU?
A: The TDP is 360W, so the server needs cooling and power supply capacity suited to high-TDP processors.

Q: Does this processor support PCIe Gen5?
A: Yes, the AMD EPYC 9004 Series platform supports PCIe Gen5.
