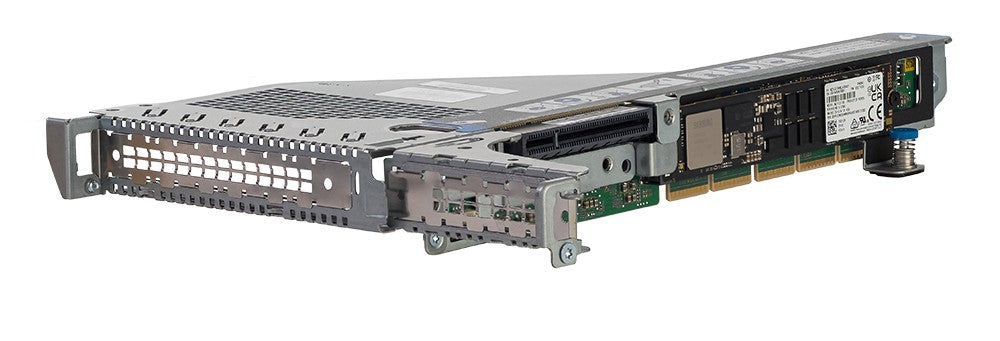

HPE P48805-B21 | ProLiant DL380 Gen11 Riser Kit, NEBS, 3x PCIe 5.0

Name: HPE P48805-B21 | ProLiant DL380 Gen11 Riser Kit, NEBS, 3x PCIe 5.0
Brand: HPE
SKU: P48805-B21
Price: 709.83 AUD
Availability: BackOrder

Authorised HPE Partner

SKU:P48805-B21

Stock Status: Enquire

$709.83 inc. GST

$645.30 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The ProLiant DL380 Gen11 NEBS-compliant riser kit adds three PCIe 5.0 slots to the 2U HPE ProLiant DL380 Gen11 server and can be installed in either the Primary or the Secondary riser position. It is built for telecommunications and carrier environments where the server must meet NEBS SR-3580 Level 3 criteria.

The riser provides one PCIe 5.0 x16 full height, full length slot, one PCIe 5.0 x8 full height, full length slot and one PCIe 5.0 x8 full height, half length slot. When selected as the Primary riser it replaces the default Primary riser. NEBS risers cannot be mixed with non-NEBS risers, and the kit cannot be combined with a GPU riser.

Features

- Can be used as the Primary riser or the Secondary riser
- NEBS-compliant design to SR-3580 Level 3 criteria
- Replaces the default Primary riser when selected
- Three PCIe 5.0 slots including one x16 full height, full length slot
- Suited to telecommunications and carrier deployments of the DL380 Gen11

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Part number: P48805-B21
- Compatible server: HPE ProLiant DL380 Gen11 2U
- Riser type: PCIe 5.0, 3 slots
- Riser position: Primary or Secondary
- Slot 1 or slot 4: PCIe 5.0 x8, full height, full length
- Slot 2 or slot 5: PCIe 5.0 x16, full height, full length
- Slot 3 or slot 6: PCIe 5.0 x8, full height, half length
- NEBS criteria: SR-3580, Level 3

FAQs

Q: Which server is the P48805-B21 riser kit compatible with?
A: It is designed for the HPE ProLiant DL380 Gen11 2U server.

Q: Can this riser be installed in either the Primary or Secondary position?
A: Yes. The kit can be used as the Primary riser or the Secondary riser. When selected as the Primary riser it replaces the default Primary riser.

Q: How many PCIe slots does this riser provide and what are their sizes?
A: It provides three PCIe 5.0 slots: one x8 full height, full length, one x16 full height, full length, and one x8 full height, half length.

Q: Can I mix NEBS and non-NEBS risers in the same server?
A: No. NEBS risers cannot be mixed with non-NEBS risers.

Q: Can this riser be used together with a GPU riser?
A: No. This NEBS riser kit cannot be selected together with a GPU riser.

Q: Can I add a Tertiary riser if I select both Primary and Secondary NEBS risers?
A: No. When Primary and Secondary NEBS risers are selected, the Tertiary riser cannot be selected.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
