HPE P41636-B21 | E810 4-Port 10/25GbE SFP28 NIC, PCIe 4.0, MCLK

Authorised HPE Partner

SKU:P41636-B21

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

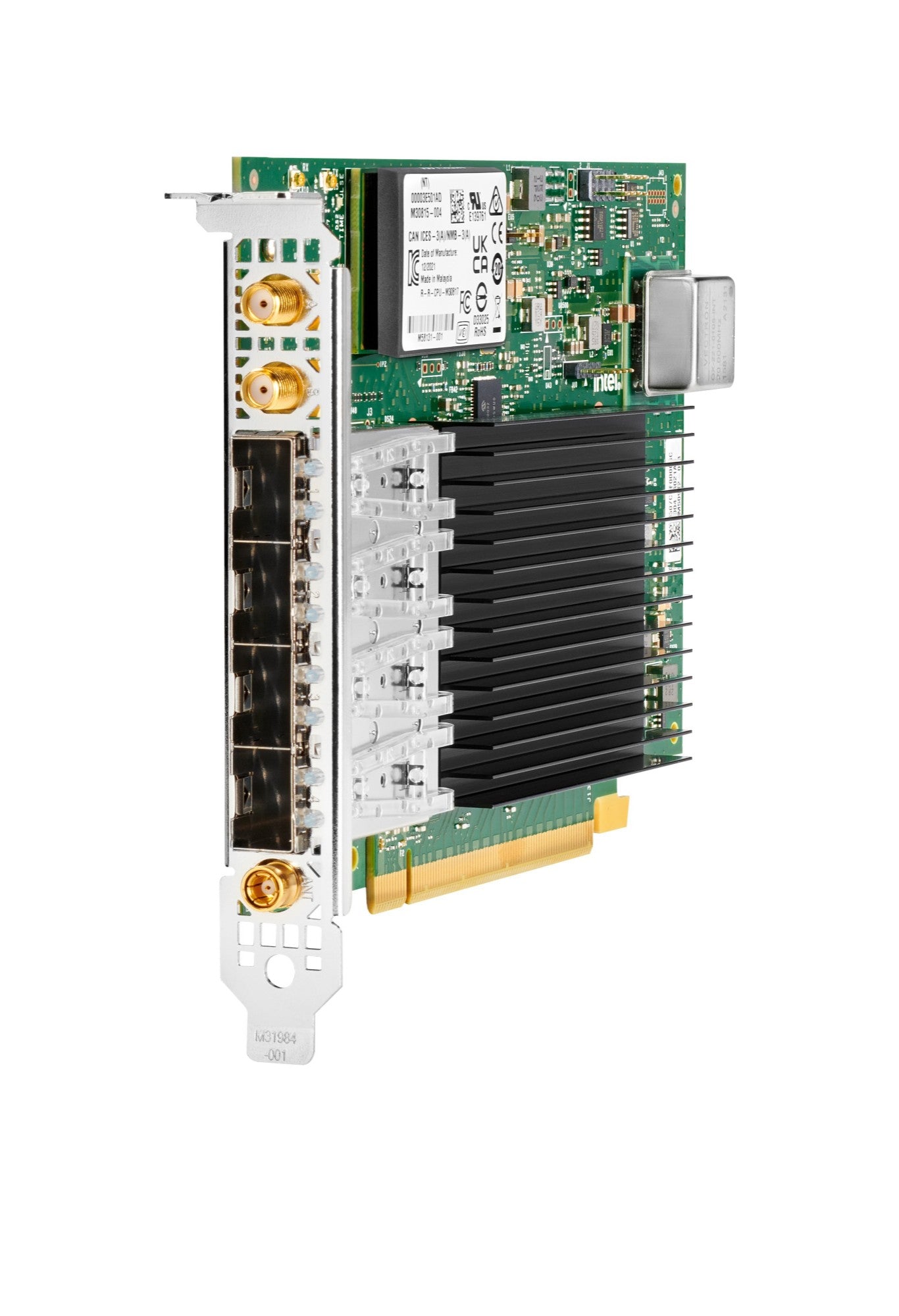

The HPE P41636-B21 is a stand-up 4-port 10/25GbE SFP28 network adapter built on the Intel Ethernet Controller E810-CAM1, with MCLK support for precision timing. It uses a PCIe 4.0 x16 interface and is designed for HPE ProLiant DL110 servers that need high-bandwidth, low-latency connectivity and accurate time synchronisation.

IwARP and RoCEv2 RDMA reduce latency and CPU load, while VXLAN, GENEVE and NVGRE tunnel offload suit overlay networking. SR-IOV, VMware NetQueue and Microsoft VMQ support virtualised workloads, and DPDK support helps with packet processing and NFV deployments. Hardware root of trust, authenticated updates and secure boot help protect the adapter firmware.

Features

- Four SFP28 ports supporting 10GbE and 25GbE speeds, with mixed port speeds supported on the same card
- MCLK variant for precision timing applications
- RDMA via iWARP and RoCEv2 to reduce latency and CPU load
- VXLAN, GENEVE and NVGRE tunnel offload for overlay networking
- SR-IOV, VMware NetQueue and Microsoft VMQ for virtualised workloads
- Hardware root of trust, authenticated firmware updates, secure boot and sanitisation
- DPDK support for packet processing acceleration and NFV deployments
- UEFI and legacy BIOS PXE boot, UEFI iSCSI boot

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x 10/25GbE SFP28 ports
- Intel Ethernet Controller E810-CAM1
- PCIe 4.0 x16 interface
- Stand-up (PCIe) form factor
- MCLK variant for precision timing
- RDMA: iWARP and RoCEv2
- Tunnel offload: VXLAN, GENEVE and NVGRE
- SR-IOV: 256 VFs per port, 2k total
- DPDK support
- UEFI and legacy BIOS PXE boot, UEFI iSCSI boot
- Hardware root of trust, authenticated updates, secure boot, sanitisation
- Power: typical 19.3 W, maximum 24.9 W
- Server support: HPE ProLiant DL110

FAQs

Q: Which servers is the P41636-B21 designed for?
A: It is an MCLK variant built for HPE ProLiant DL110 servers.

Q: Does this adapter support both 10GbE and 25GbE?
A: Yes. Its four SFP28 ports support 10GbE and 25GbE, and different port speeds can be mixed on the same card.

Q: What PCIe interface does it use?
A: It uses a PCIe 4.0 x16 interface in a stand-up form factor.

Q: Does it support RDMA?
A: Yes. It supports both iWARP and RoCEv2 RDMA to reduce latency and CPU overhead.

Q: Does it support network booting?
A: Yes. It supports UEFI and legacy BIOS PXE boot, and UEFI iSCSI boot.

Q: Does it support Wake-on-LAN or NPAR?
A: No. Wake-on-LAN and NPAR are not supported on this adapter.
