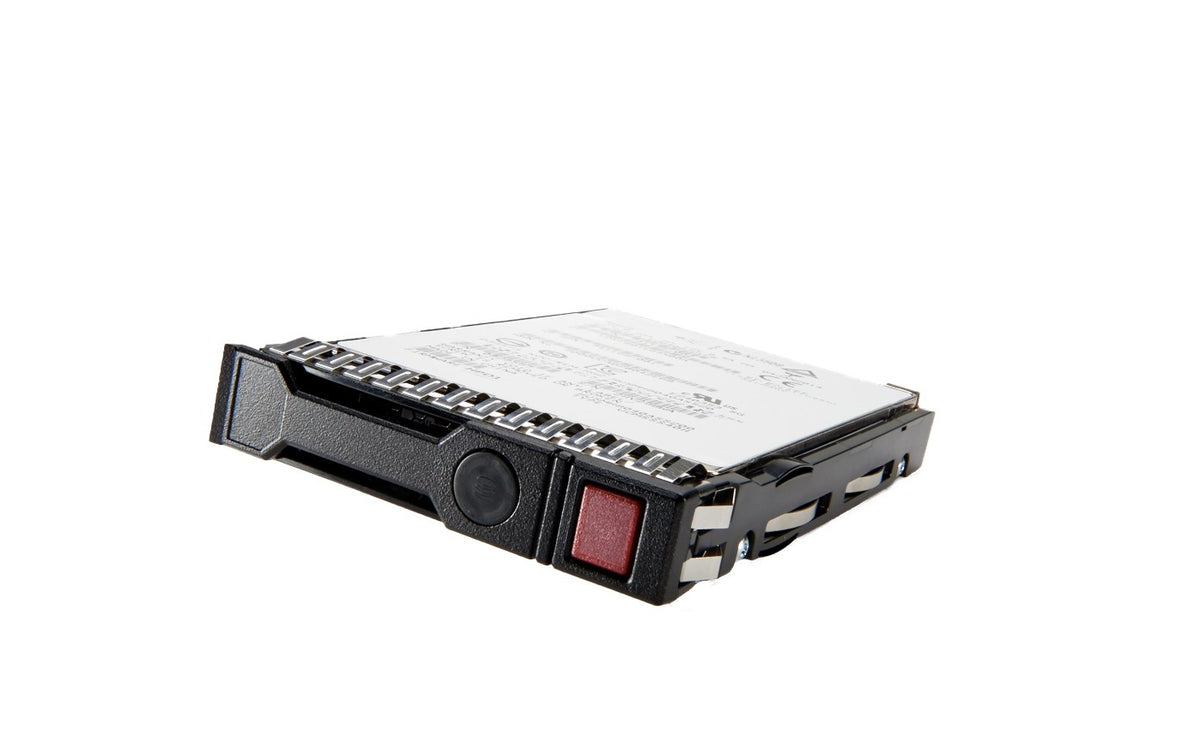

HPE P40560-B21 | 800GB SAS 12G Mixed Use SFF SSD, Basic Carrier, PM1645a

Name: HPE P40560-B21 | 800GB SAS 12G Mixed Use SFF SSD, Basic Carrier, PM1645a
Brand: HPE
SKU: P40560-B21
Price: 6108.55 AUD
Availability: BackOrder

Authorised HPE Partner

SKU:P40560-B21

Stock Status: Enquire

$6,108.55 inc. GST

$5,553.23 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The 800GB SAS 12G Mixed Use SFF SSD is an enterprise solid state drive built for applications that need high read and write IOPS with strong endurance. It uses TLC NAND, a dual-port SAS 12Gb/s interface and a 2.5-inch small form factor hot-plug Basic Carrier (BC), delivering up to 175,000 4KB random read and 100,000 4KB random write IOPS at 3 drive writes per day.

This PM1645a model features digitally signed firmware for added security and is designed for HPE ProLiant, Synergy and Apollo servers, with Gen10 and Gen10 Plus server compatibility. It remains backwards compatible with 6Gb/s SAS controllers, making it a flexible option for expanding or refreshing existing server storage.

Features

- Designed for applications that need high read and write IOPS with high endurance
- Full-duplex SAS 12Gb/s data transfer
- Digitally signed firmware for added security
- Dual-port SAS for redundancy
- Hot-plug SFF Basic Carrier for HPE ProLiant, Synergy and Apollo servers
- Backwards compatible with 6Gb/s SAS controllers

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 800 GB
- Interface: SAS 12Gb/s (dual port)
- Endurance class: Mixed Use (MU), 3 DWPD
- NAND type: Triple-level cell (TLC)
- Form factor: 2.5in SFF, hot-plug
- Carrier: Basic Carrier (BC)
- 4KB random read: up to 175,000 IOPS
- 4KB random write: up to 100,000 IOPS
- Drive transfer rate: 1.2 GBps (external)
- Internal data rate: 1080 MBps read, 1030 MBps write
- Digitally signed firmware: Yes
- Power consumption: 3.47 W idle, 6.66 W maximum
- Dimensions and weight: 15 mm height, 680 g
- Server generation compatibility: Gen10 and Gen10 Plus

FAQs

Q: What workloads is this SSD suited to?
A: It is a Mixed Use enterprise SSD rated at 3 drive writes per day, suited to applications that need high read and write IOPS with high endurance, such as virtualisation and database workloads.

Q: What interface does this drive use?
A: It uses a dual-port SAS 12Gb/s interface, which provides redundancy and full-duplex data transfer.

Q: Is it compatible with 6Gb/s SAS controllers?
A: Yes, the drive is backwards compatible with 6Gb/s SAS controllers, although performance is limited to the controller speed.

Q: Which servers is it compatible with?
A: It is a 2.5-inch SFF hot-plug drive in an HPE Basic Carrier for HPE ProLiant, Synergy and Apollo servers, with Gen10 and Gen10 Plus compatibility.

Q: What is the IOPS performance?
A: It delivers up to 175,000 IOPS for 4KB random reads and up to 100,000 IOPS for 4KB random writes.

Q: Does the drive include security features?
A: Yes, it includes digitally signed firmware, which helps protect the drive against unauthorised firmware changes.
