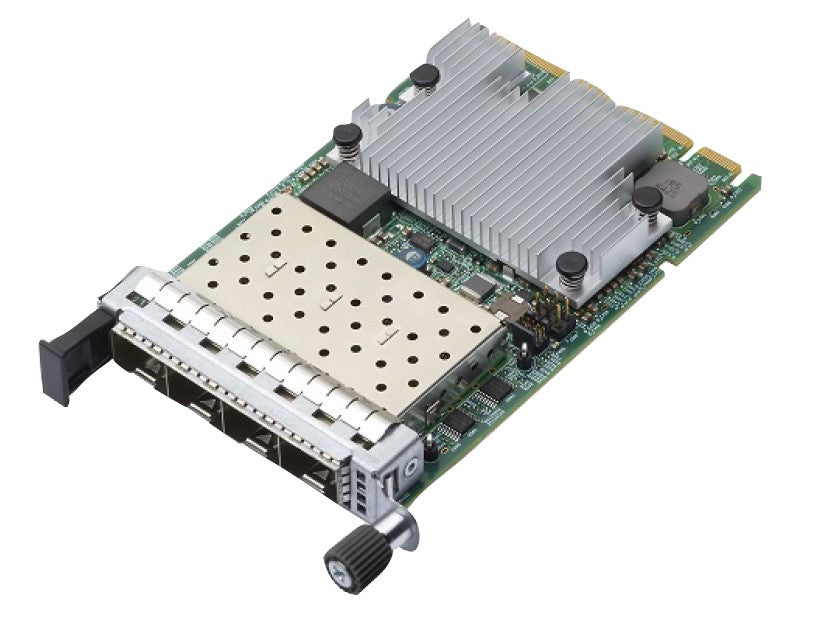

HPE P26269-B21 | Broadcom BCM57504 Ethernet Adapter, 4 x 10/25GbE SFP28, OCP 3.0

HPE P26269-B21 | Broadcom BCM57504 Ethernet Adapter, 4 x 10/25GbE SFP28, OCP 3.0

P26269-B21

Stock Status: Enquire

$824.78 AUD
$824.78 AUD
$824.78 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The HPE Broadcom BCM57504 OCP 3.0 Ethernet adapter delivers dense 100Gb aggregate throughput with four 10/25GbE SFP28 ports, ideal for virtualised workloads, storage fabrics, and high‑throughput east‑west traffic in modern data centres. Its OCP NIC 3.0 form factor provides tool-less serviceability and streamlined airflow in compatible HPE ProLiant platforms. Built on Broadcom’s proven NetXtreme-E silicon, it supports advanced offloads for lower CPU utilisation and consistent performance under load. Backed by HPE option-level warranty and enterprise support, it integrates cleanly into Gen10 Plus/Gen11 servers with an OCP 3.0 slot. Upgrade your network with gear from iptrading.com.au — Australia's IT hardware specialists.

Features

- High-density 4 x 25GbE in a single OCP 3.0 NIC for up to 100Gb aggregate bandwidth
- Flexible 10/25Gb operation per port to match evolving network needs
- SFP28 interface supports DAC, AOC, and optical modules for versatile deployments
- Advanced offloads and SR-IOV reduce CPU overhead and boost virtualised performance
- OCP NIC 3.0 design simplifies serviceability and preserves server airflow
- HPE-qualified solution for reliable integration and enterprise support

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Controller: Broadcom BCM57504 (NetXtreme-E)
- Ports: 4 x SFP28
- Port speeds: 10/25GbE per port
- Aggregate bandwidth: up to 100Gbps
- Form factor: OCP NIC 3.0
- Host interface: OCP 3.0 (PCIe-based)
- Supported media: SFP28 DAC, AOC, and 25GbE/10GbE optical transceivers (SR/LR, where supported)
- Advanced features: VLAN tagging, RSS, checksum and large send offloads, SR-IOV
- Boot support: PXE boot (UEFI/Legacy, platform dependent)
- Compatibility: HPE ProLiant servers with an OCP 3.0 NIC slot (e.g., Gen10 Plus/Gen11)
- Management: Supports integration with HPE server management (platform dependent)

FAQs

Q: Does this adapter support both 10GbE and 25GbE operation?
A: Yes. Each SFP28 port supports 25GbE and can operate at 10GbE when used with appropriate SFP28/SFP+ modules or DACs that support 10Gb.

Q: Will this OCP 3.0 NIC fit in my HPE ProLiant server?
A: It is designed for HPE ProLiant platforms that include an OCP NIC 3.0 slot (such as many Gen10 Plus and Gen11 models). Check your server’s QuickSpecs to confirm OCP 3.0 slot availability.

Q: What transceivers and cables can I use with the SFP28 ports?
A: Use HPE-qualified SFP28 DAC/AOC cables and 25GbE optical transceivers (e.g., SR/LR) for 25Gb, and SFP+ optics or DACs for 10Gb where supported by the platform.

Q: Does it support virtualisation features like SR-IOV?
A: Yes. The adapter supports SR-IOV and common offloads such as RSS and checksum/TSO to improve performance in virtualised environments.

Q: What warranty coverage applies?
A: As an HPE Option, it is typically backed by an HPE limited warranty (often 1-year); exact terms may vary by region and server model. Refer to HPE documentation for details.

Q: Can I buy this in Australia from IP Trading?
A: Yes. IP Trading supplies genuine HPE hardware in Australia and can help with compatibility, transceiver selection, and delivery.
