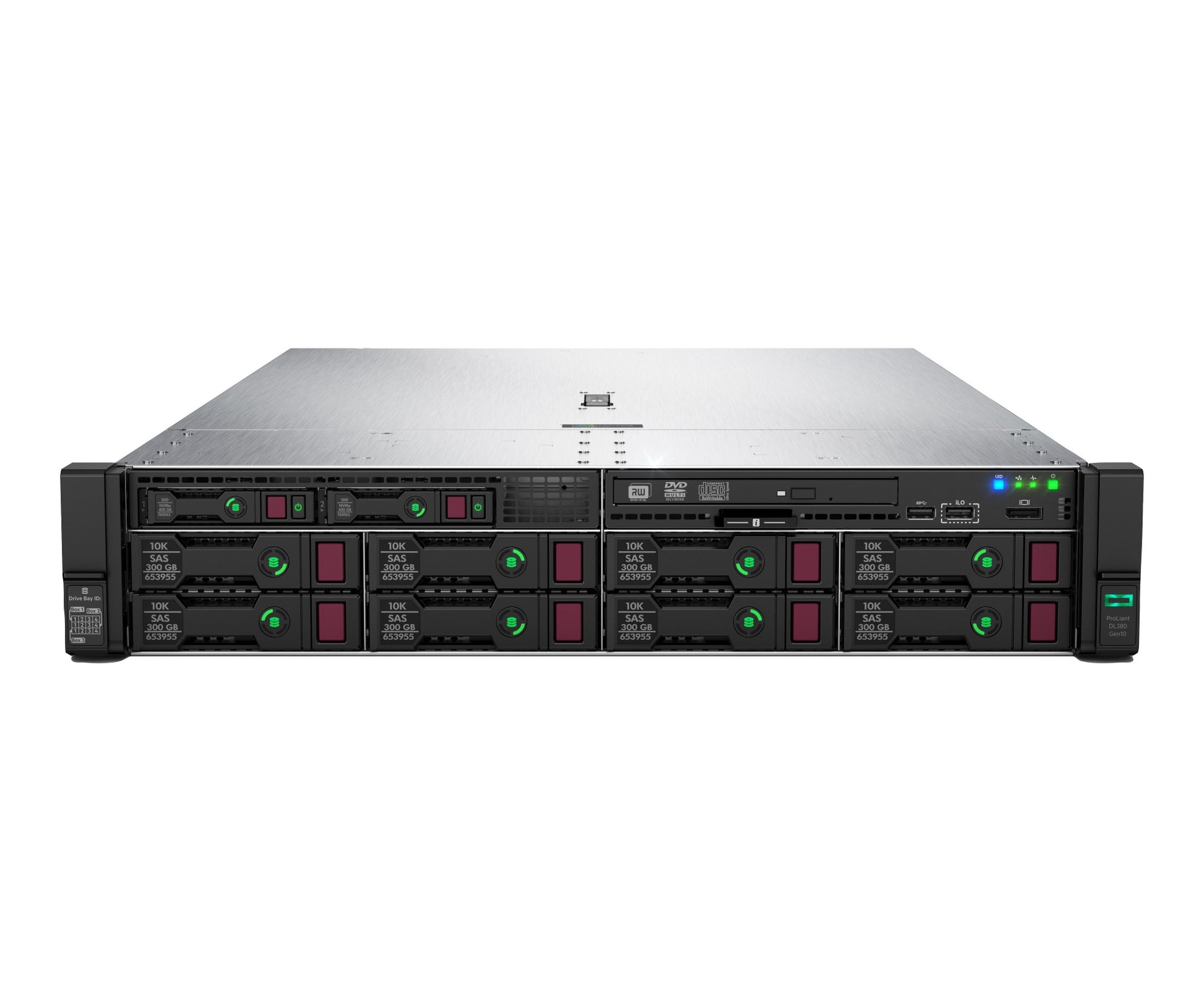

HPE P20245-B21 | ProLiant DL380 Gen10 2U Rack Server, Xeon Gold 6242, 32GB, 8SFF

Authorised HPE Partner

SKU:P20245-B21

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE ProLiant DL380 Gen10 2U rack server in the P20245-B21 configuration pairs one Intel Xeon Gold 6242 16-core 2.8GHz processor with 32GB of DDR4 memory, eight 2.5in SFF hot-plug drive bays and an HPE Smart Array P408i-a controller. Dual 25GbE network ports and a single 800W power supply make it a capable platform for virtualisation, database and general enterprise workloads in a standard rack.

The dual-socket-capable chassis supports a second processor and 24 DIMM slots, giving room to scale compute and memory as demand grows. SAS and SATA storage is handled through the Smart Array controller, and the server is ENERGY STAR qualified and EPEAT Bronze compliant.

Features

- Dual-socket-capable 2U rack design for scalable compute
- 12 DIMMs per processor across four memory channels
- Hot-plug SAS/SATA drive support through the Smart Array controller
- Integrated 25GbE networking for high-bandwidth connectivity

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: 1 x Intel Xeon Gold 6242, 16-core, 2.8GHz (2 processors supported)
- Cache: 22MB L3
- Memory: 32GB DDR4 SDRAM installed
- Memory slots: 24 DIMM slots (12 per processor)
- Storage bays: 8 x 2.5in SFF hot-plug (SAS/SATA)
- Storage controller: HPE Smart Array P408i-a
- Network: 2 x 25GbE ports
- Power supply: 1 x 800W
- Form factor: 2U rackmount
- Compliance: ENERGY STAR qualified, EPEAT Bronze

FAQs

Q: What processor and memory are fitted to the P20245-B21?
A: This configuration includes one Intel Xeon Gold 6242 16-core 2.8GHz processor and 32GB of DDR4 memory.

Q: Can a second processor be added?
A: Yes. The ProLiant DL380 Gen10 chassis supports two processors, with 24 DIMM slots in total (12 per processor).

Q: What type of drives does it support?
A: It has eight 2.5in SFF hot-plug bays supporting SAS and SATA drives through the HPE Smart Array P408i-a controller.

Q: What network connectivity is included?
A: The server includes two 25GbE network ports.

Q: What is the power supply configuration?
A: This model ships with a single 800W power supply.

Q: What rack space does it require?
A: It is a 2U rackmount server designed for standard equipment racks.
