Aruba JY728A | Micro-USB TTL 3.3V to USB 2.0 AP Console Cable

Aruba JY728A | Micro-USB TTL 3.3V to USB 2.0 AP Console Cable

Authorised Aruba Partner

JY728A

$33.12 inc. GST
$30.11 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock:14

Description

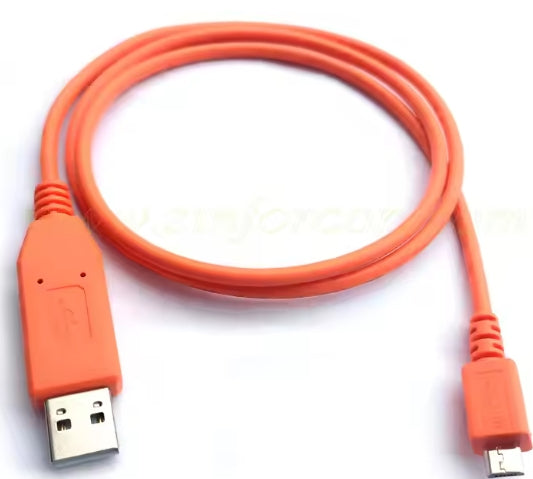

The Aruba JY728A is a Micro-USB TTL 3.3V to USB 2.0 AP console adapter cable that connects a standard USB-A port on a laptop or PC to the Micro-USB console port on select Aruba access points. An integrated USB-to-serial converter gives direct CLI access for provisioning, troubleshooting and recovery without needing a physical serial port on the host.

Designed for Aruba AP-203H, AP-303H and AP-515 series access points, the orange cable is powered from the host USB port, so no external power supply is required. It works with standard terminal software, making it a practical addition to any network engineer's toolkit.

Features

- Active cable with integrated USB to serial/TTL 3.3 V converter
- Powered from the host USB port, so no external power is needed
- Provides CLI console access to access points without a standard serial port
- Works with standard terminal software

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- USB 2.0 interface (480 Mb/s)
- Connector 1: Micro-USB (TTL 3.3 V serial console)
- Connector 2: USB Type-A male
- TTL 3.3 V signalling
- Colour: Orange
- Alternate name: AP-CBL-SERU
- For Aruba AP-203H, AP-303H and AP-515 series

FAQs

Q: Which Aruba access points does the JY728A console cable support?
A: It is designed for Aruba AP-203H, AP-303 / AP-303H and AP-515 series access points and similar models with a Micro-USB TTL 3.3 V console port.

Q: Does the cable need external power?
A: No. It is an active cable with an integrated USB-to-serial converter and is powered from the host USB port.

Q: What do I need on my computer to use it?
A: A standard USB Type-A port and any common terminal software to access the access point CLI.

Q: What can I use the console connection for?
A: CLI access for initial provisioning, troubleshooting and recovery on supported Aruba access points.

Q: Is this the same as AP-CBL-SERU?
A: Yes. JY728A is the part number for the AP-CBL-SERU Micro-USB TTL 3.3V to USB 2.0 AP console adapter cable.
