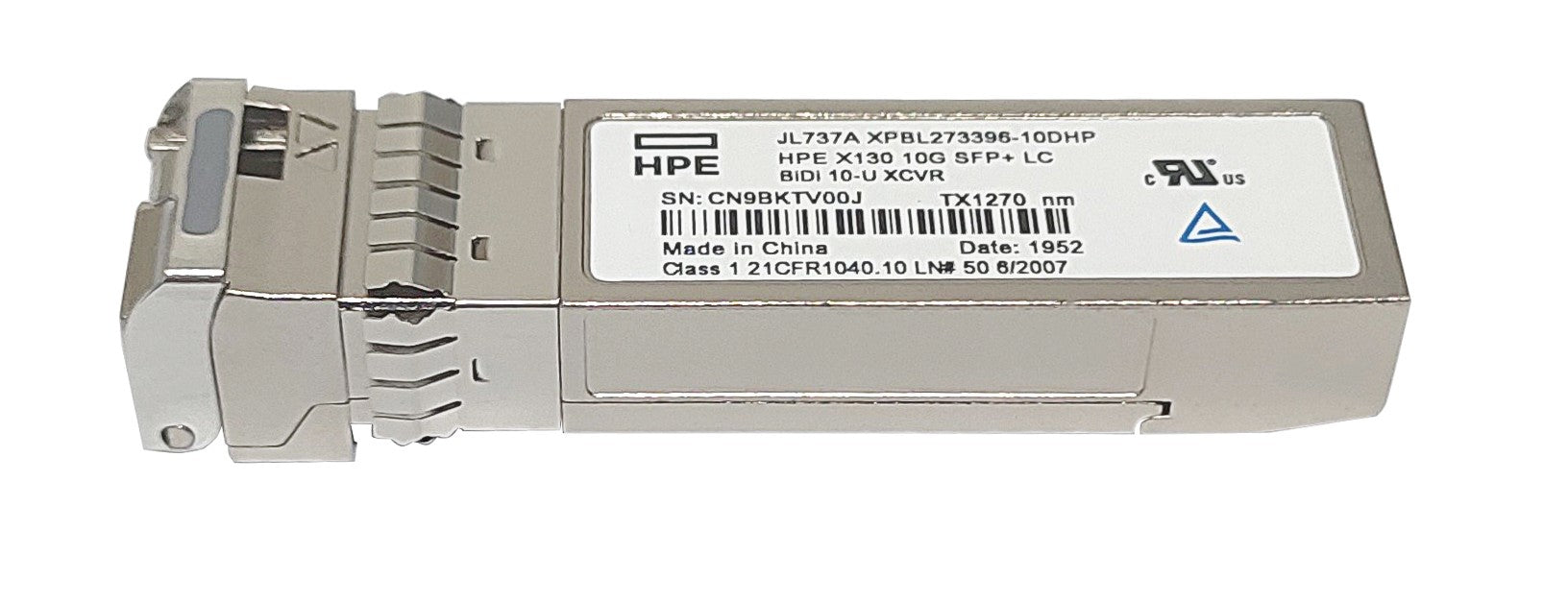

HPE JL737A | X130 10G SFP+ BiDi Transceiver, Single-Mode, 10km, LC, Uplink

HPE JL737A | X130 10G SFP+ BiDi Transceiver, Single-Mode, 10km, LC, Uplink

JL737A

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The HPE Networking X130 10G SFP+ BiDi Uplink Transceiver delivers 10 Gbps over a single strand of single-mode fibre up to 10 km, using bidirectional wavelength division — transmitting at 1270 nm and receiving at 1330 nm via LC simplex connector. Designed for HPE Comware-based networking devices, it is the Uplink variant (JL737A) that pairs with the JL738A Downlink module, making it ideal for campus and metro uplink deployments where fibre strand count must be minimised.

SFP+ MSA compliant and purpose-built for HPE's Comware switching and routing platform, this transceiver integrates seamlessly into existing HPE infrastructure without additional licensing. Order today from iptrading.com.au — your local source for enterprise-grade networking solutions.

Features

- BiDi (Bidirectional) technology — transmit and receive over a single fibre strand, halving fibre infrastructure requirements
- Uplink variant: TX 1270 nm / RX 1330 nm — must be paired with JL738A Downlink at the remote end
- 10 Gbps line rate over single-mode fibre up to 10 km — suitable for campus and metro uplink deployments
- LC simplex connector interface for easy integration with standard SMF patch panels
- Designed and validated for HPE Comware-based networking devices
- SFP+ MSA compliant for assured mechanical and electrical compatibility

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form Factor: SFP+
- Data Rate: 10 Gbps (10GBase-X)
- Connector: LC Simplex (BiDi)
- Fibre Type: Single-Mode Fibre (SMF), 9/125 µm
- Maximum Reach: 10 km (6.21 miles)
- TX Wavelength: 1270 nm
- RX Wavelength: 1330 nm
- Transmit Power: -6 to -1 dBm
- Receive Power: -14.4 to 0.5 dBm
- Variant: Uplink (pairs with JL738A Downlink)
- Dimensions: 13 x 3.51 x 1.5 cm
- Weight: 0.1 kg
- Compatible Platform: HPE Networking Comware-based devices

FAQs

Q: What is the difference between the JL737A and JL738A transceivers?
A: The JL737A is the Uplink variant (TX 1270 nm / RX 1330 nm) and the JL738A is the Downlink variant (TX 1330 nm / RX 1270 nm). A BiDi link requires one of each — one at each end of the fibre run — so the two modules must be deployed as a matched pair.

Q: What type of fibre cable does the JL737A require?
A: The JL737A requires standard single-mode fibre (SMF), 9/125 µm, with LC simplex connectors. Because it is a BiDi transceiver, only a single fibre strand is needed per link, reducing fibre infrastructure costs.

Q: What HPE devices are compatible with the JL737A?
A: The JL737A is designed for HPE Comware-based networking devices, including HPE FlexFabric and A-Series switches and routers that feature SFP+ slots. Always verify compatibility against your specific HPE device's transceiver compatibility matrix before ordering.

Q: Is the JL737A suitable for metro or campus uplink connections?
A: Yes. With a 10 km reach over single-mode fibre, the JL737A is well suited to campus backbone uplinks and short metro connections where a single-fibre BiDi solution is preferred over dual-strand alternatives.

Q: Can I purchase the HPE JL737A in Australia from IP Trading?
A: Yes. IP Trading (iptrading.com.au) is a local Australian B2B IT hardware reseller stocking HPE networking transceivers including the JL737A. Contact us for pricing, availability, and volume purchasing.

Q: Is the JL737A MSA compliant?
A: Yes. The HPE X130 JL737A is SFP+ MSA compliant, ensuring adherence to industry-standard mechanical and electrical specifications for SFP+ form-factor transceivers.
