HPE DL560 Gen11 | ProLiant DL560 Gen11 4-Socket 2U Rack Server, DDR5

Authorised HPE Partner

SKU:DL560 Gen11

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

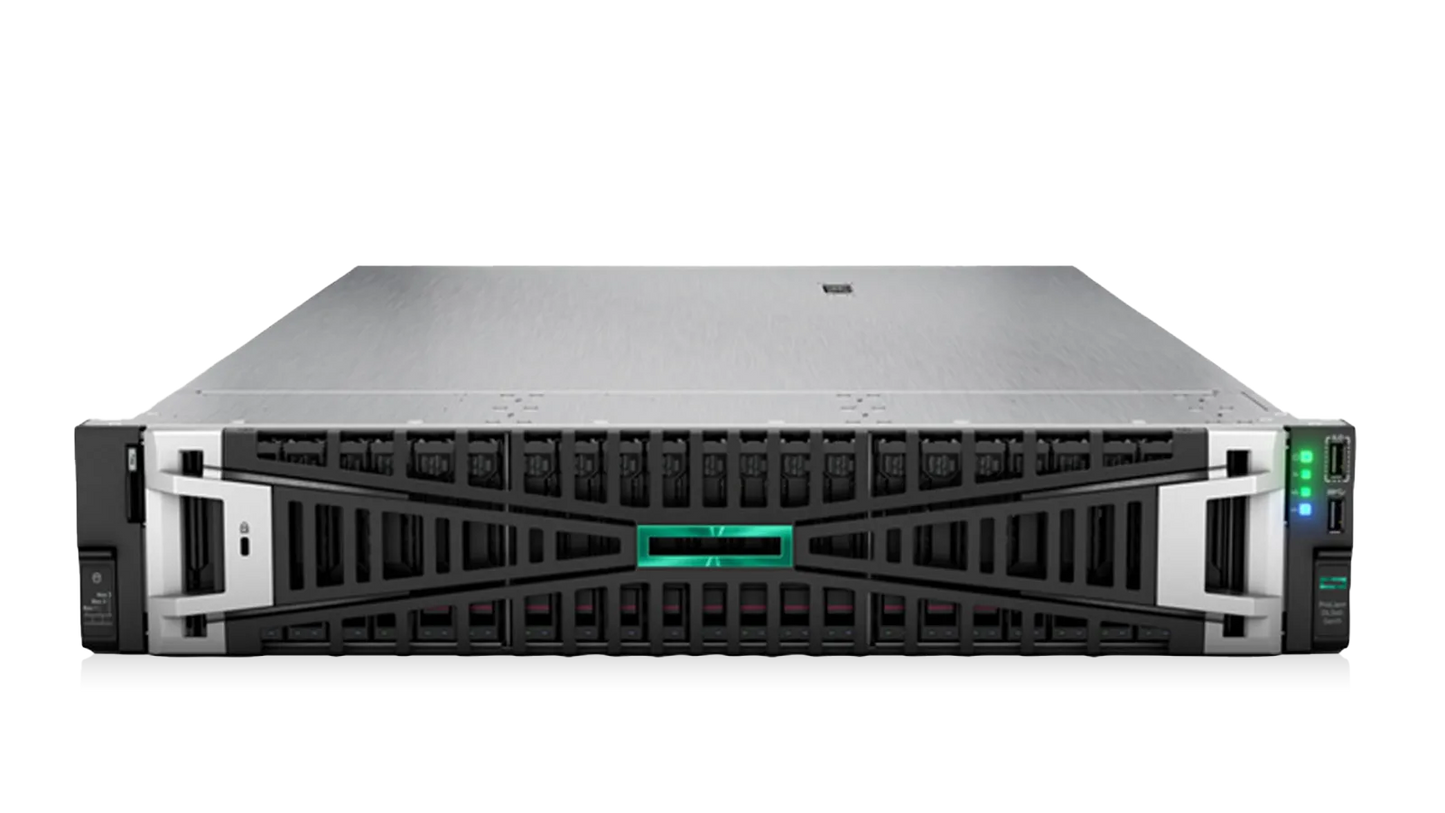

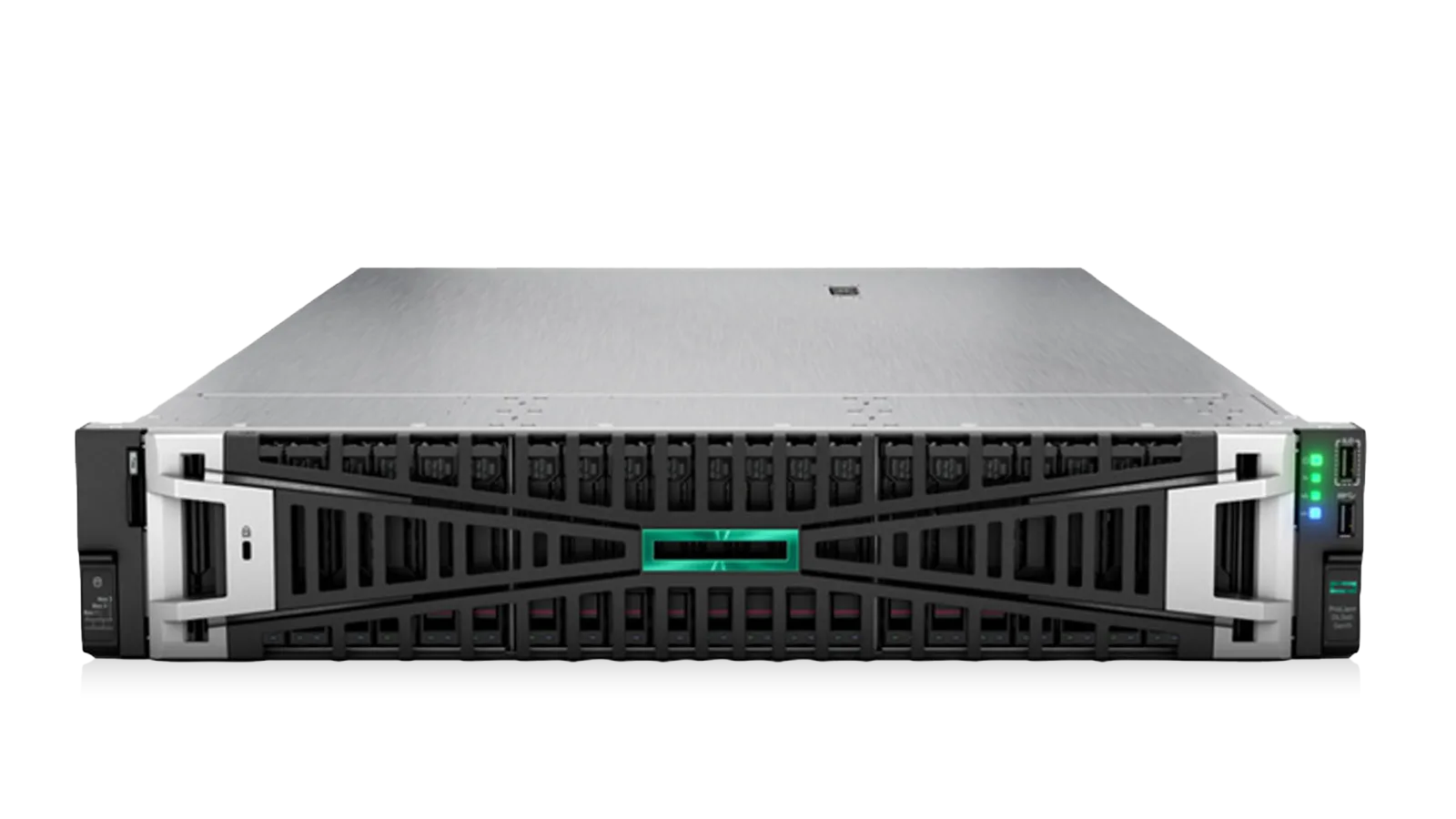

The HPE ProLiant DL560 Gen11 is a 2U, four-socket rack server built on 4th Generation Intel Xeon Scalable processors. It is designed for business-critical workloads, data analytics and virtualisation, supporting 2 to 4 processors, up to 64 DDR5 DIMM slots and PCIe Gen5 I/O.

Flexible storage options include 8, 16 or 24 2.5-inch SAS, SATA or NVMe bays, or up to 12 E3.S SSDs, with 2x OCP 3.0 slots for networking. GPU support up to 10.5 inches in length and an optional closed-loop liquid cooling configuration make it suited to dense, high-performance deployments.

Features

- Four-socket 2U design for dense compute
- Closed-loop liquid cooling option
- GPU support up to 10.5" in length, including NVIDIA H100 80GB PCIe and L40 48GB
- DDR5 HPE SmartMemory support
- Suited to business-critical workloads, data analytics and virtualisation

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U rack form factor
- 2x to 4x 4th Generation Intel Xeon Scalable processors
- 8 to 60 cores per processor, up to 350W TDP
- 64 DDR5 DIMM slots (16 per processor), up to 16TB with 256GB modules, up to 4800MT/s
- 8x, 16x or 24x 2.5" SAS/SATA/NVMe drive bays, or up to 12x E3.S SSDs
- Up to 6x PCIe Gen5 slots
- 2x OCP 3.0 slots
- Up to 6x single-wide or 2x double-wide GPUs
- Dimensions: 8.75 cm (H) x 43.31 cm (W) x 80.66 cm (D)
- Max weight: 38.02 kg (air cooling) / 36.93 kg (liquid cooling)

FAQs

Q: How many processors does the HPE ProLiant DL560 Gen11 support?
A: It supports 2 to 4 4th Generation Intel Xeon Scalable processors, with 8 to 60 cores per processor and up to 350W TDP.

Q: How much memory can the DL560 Gen11 hold?
A: It has 64 DDR5 DIMM slots (16 per processor) and supports up to 16TB using 256GB DDR5 modules at speeds up to 4800MT/s.

Q: What storage configurations are available?
A: It supports 8, 16 or 24 2.5-inch SAS, SATA or NVMe drive bays, or up to 12 E3.S SSDs.

Q: Can the DL560 Gen11 be fitted with GPUs?
A: Yes. It supports up to 6 single-wide or 2 double-wide GPUs up to 10.5 inches in length, including NVIDIA H100 80GB PCIe and L40 48GB.

Q: Does this server offer liquid cooling?
A: Yes, a closed-loop liquid cooling option is supported as an alternative to air cooling.

Q: What expansion slots does it provide?
A: It offers up to 6 PCIe Gen5 slots and 2 OCP 3.0 slots for network and I/O expansion.
