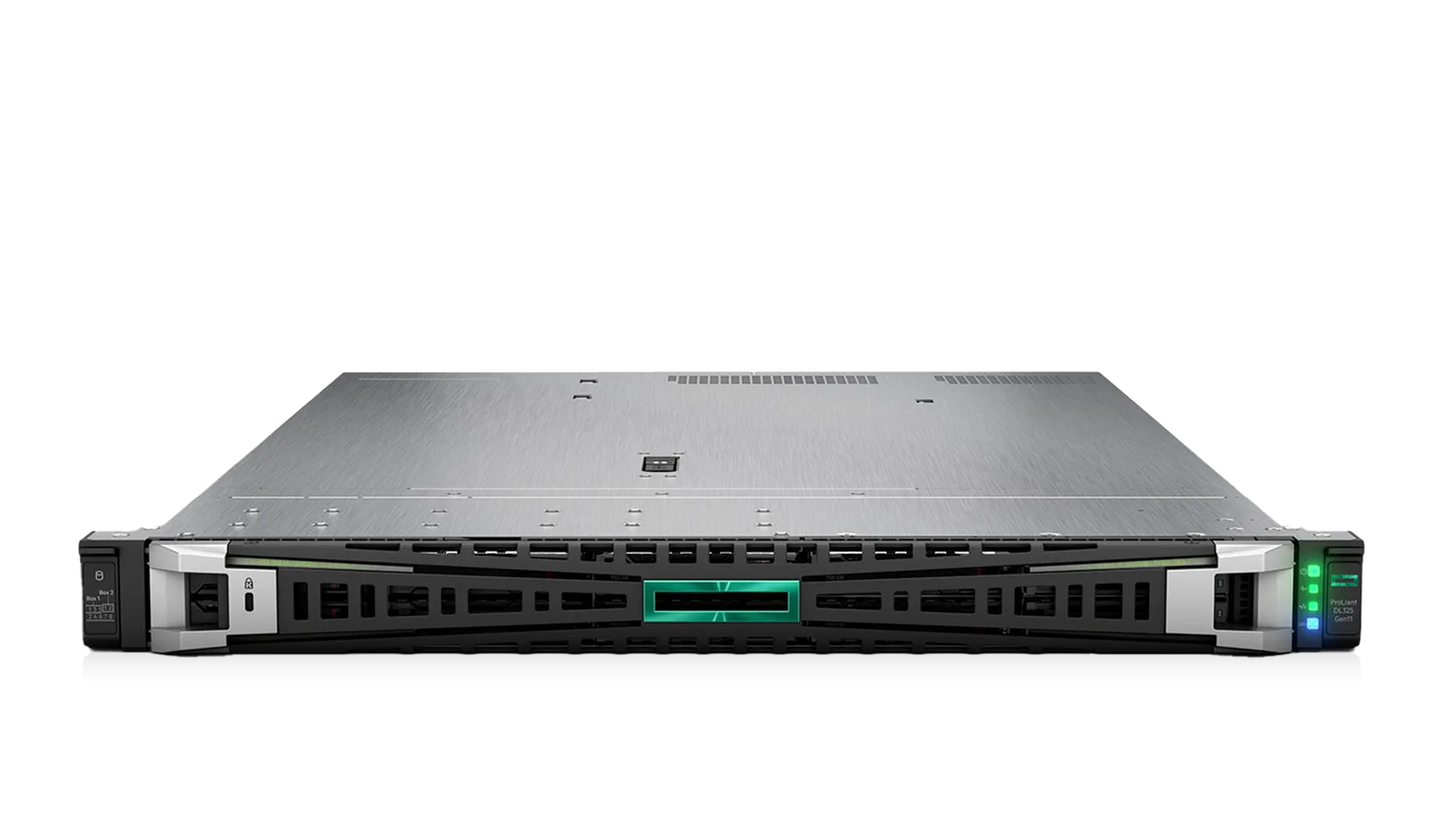

HPE DL325 Gen11 | ProLiant DL325 Gen11 1U Rack Server, AMD EPYC, DDR5

Authorised HPE Partner

SKU:DL325 Gen11

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The HPE ProLiant DL325 Gen11 is a 1U single-socket rack server built on 4th and 5th Generation AMD EPYC processors with up to 160 cores. It is designed for virtualised workloads where high core density, DDR5 memory and PCIe Gen5 I/O need to fit into a compact rack footprint.

With 12 DIMM slots supporting DDR5 Smart Memory up to 3 TB, an OCP 3.0 slot and support for up to 2 double-width front GPUs, the DL325 Gen11 scales for compute-heavy deployments. EDSFF storage support and 8SFF and 4LFF configure-to-order models allow the server to be matched to a range of storage requirements.

Features

- Redfish API, IPMI 2.0 and UEFI Class 3 compliance
- SNMP v3, TLS 1.2, AES and 3DES security support
- Standard, Performance or liquid cooling options
- DDR5 Smart Memory
- PCIe Gen5 I/O

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1U rack form factor, single socket (1P)
- 4th and 5th Generation AMD EPYC processors, up to 160 cores, up to 400 W
- Up to 1150 MB L3 cache
- 12 DIMM slots, DDR5 Smart Memory up to 6400 MT/s, up to 3 TB
- PCIe 5.0 support; 8SFF model has 1 PCIe 5.0 x16 primary riser; 4LFF model has 3 PCIe 5.0 x16 risers
- OCP 3.0 slot (PCIe 5.0 x8)
- Supports up to 2 double-width GPUs at the front
- EDSFF storage support; 8SFF and 4LFF configure-to-order models
- Front: 1 USB 3.2 Gen1 and iLO service port; Rear: 2 USB 3.2 Gen1; Internal: 2 USB 3.2 Gen1
- 1 rear VGA port
- Embedded TPM 2.0

FAQs

Q: What processors does the HPE ProLiant DL325 Gen11 support?
A: It supports 4th and 5th Generation AMD EPYC processors in a single-socket configuration, with up to 160 cores and up to 400 W.

Q: How much memory can the DL325 Gen11 hold?
A: It has 12 DIMM slots and supports DDR5 Smart Memory at up to 6400 MT/s, with a maximum capacity of 3 TB.

Q: Can the DL325 Gen11 accommodate GPUs?
A: Yes, it supports up to 2 double-width GPUs at the front of the chassis.

Q: What PCIe and networking expansion options are available?
A: The server supports PCIe 5.0 and includes an OCP 3.0 slot (PCIe 5.0 x8). The 8SFF model has 1 PCIe 5.0 x16 primary riser, while the 4LFF model has 3 PCIe 5.0 x16 risers.

Q: What storage configurations are offered?
A: The DL325 Gen11 is available in 8SFF and 4LFF configure-to-order models and also supports EDSFF storage.

Q: Which management and security standards does it support?
A: It supports the Redfish API, IPMI 2.0 and UEFI Class 3 compliance, along with SNMP v3, TLS 1.2, AES and 3DES, and includes an embedded TPM 2.0.
