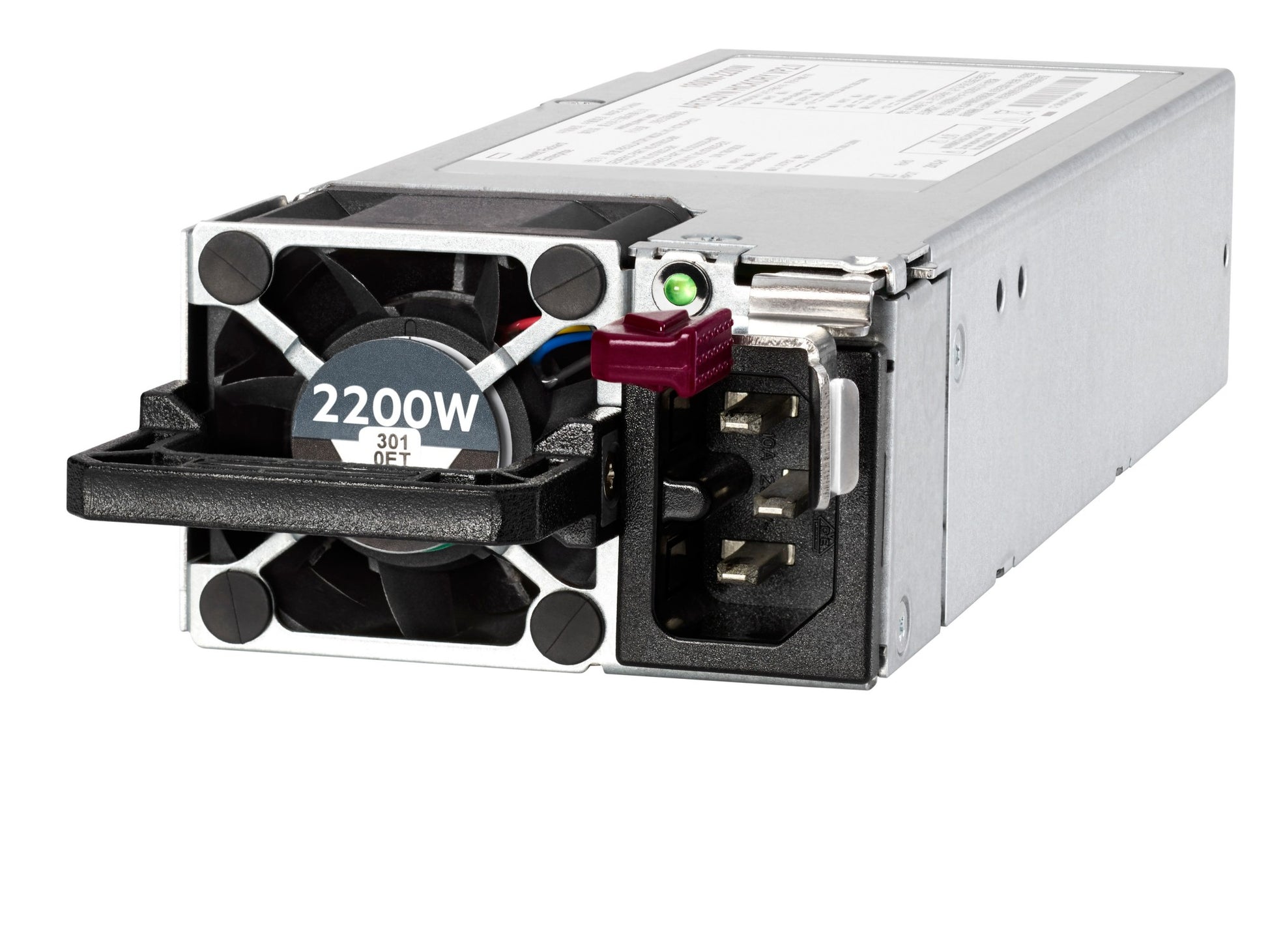

HPE 876935-B21 | Flex Slot 1800W-2200W Platinum Hot-Plug Power Supply

HPE 876935-B21 | Flex Slot 1800W-2200W Platinum Hot-Plug Power Supply

Authorised HPE Partner

876935-B21

Stock Status: Enquire

$1,845.19 inc. GST
$1,677.45 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The HPE Flex Slot 1800W-2200W Platinum hot-plug power supply kit delivers high-line AC power for HPE servers, rated from 1800W at 200V up to 2200W at 240V AC input. It is designed for 200-240V AC high-line environments, uses a standard C-14 power inlet and offers Platinum-level efficiency of up to 93.2% at 200V, helping reduce power waste and heat output in dense deployments.

The Flex Slot hot-plug form factor allows the unit to be installed or replaced without powering down the system, and it supports single, load-balanced redundant and high-efficiency redundant modes. This power supply must be used with high-line input and is supported on Apollo 2000 Gen10 systems.

Features

- Platinum-level certified efficiency
- Hot-plug design allows installation or replacement without powering down the system
- Redundant-capable Flex Slot design
- Supports single, load-balanced redundant and high-efficiency redundant modes
- Requires high-line input of 200-240V AC
- Supported on Apollo 2000 Gen10 systems

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Output: 1800W at 200V up to 2200W at 240V AC
- 2200W output requires 240V AC input
- Input voltage: 200-240V AC, 50-60Hz
- Efficiency: Platinum, up to 93.2% at 200V
- Power factor: 0.99
- Form factor: Hot-plug Flex Slot
- Power inlet: C-14
- Nominal input current: 9.75A at 200V, 9.99A at 240V
- Maximum inrush current: 30A peak for 10ms
- Maximum heat output: 6590 BTU/hr at 200V, 8096 BTU/hr at 240V
- Generic part numbers: 876932-001 and 882135-001

FAQs

Q: What input voltage does this power supply require?
A: It requires high-line AC input of 200-240V at 50-60Hz. It must not be connected to low-line supplies.

Q: What is the maximum output power?
A: Output is rated at 1800W at 200V, 1900W at 208V, 2000W at 220V, 2100W at 230V and 2200W at 240V AC. Reaching 2200W requires 240V input.

Q: Which HPE servers support this power supply?
A: It is supported on Apollo 2000 Gen10 systems. Check compatibility before ordering for other server platforms.

Q: Is this power supply hot-plug?
A: Yes. The Flex Slot hot-plug design allows it to be installed or replaced without shutting down the system, and it supports redundant power configurations.

Q: What power inlet does it use?
A: It uses a standard C-14 power inlet, so a compatible power cord with a C13 connector is required.

Q: What efficiency rating does it have?
A: It is Platinum-level certified, with efficiency of up to 93.2% at 200V input and a power factor of 0.99.
