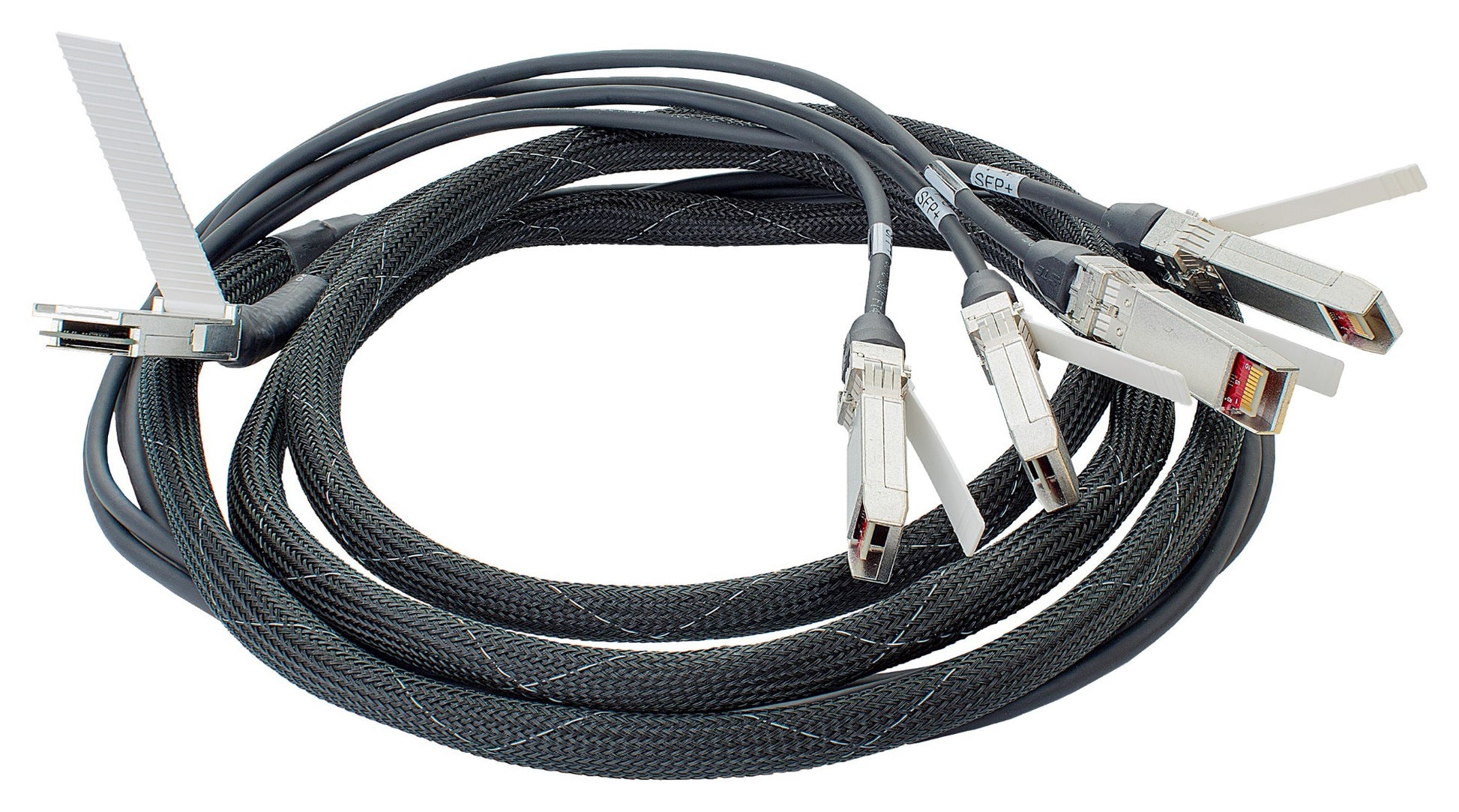

• HPE 721064-B21 3m QSFP+ to 4x SFP+ black braided cable with silver connectors
1 1

HPE

HPE 721064-B21 | BladeSystem c-Class QSFP+ to 4x SFP+ DAC Splitter Cable, 3m

HPE 721064-B21 | BladeSystem c-Class QSFP+ to 4x SFP+ DAC Splitter Cable, 3m

Authorised HPE Partner

721064-B21

Stock Status: Enquire

$1,547.10 inc. GST
$1,406.45 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The HPE BladeSystem c-Class 40G QSFP+ to 4x10G SFP+ direct attach copper splitter cable is a 3m passive breakout cable that fans a single 40GbE QSFP+ port out to four 10GbE SFP+ connections. It delivers a low-cost, low-latency, low-power alternative to optical transceivers for short-reach links within the rack or between adjacent racks.

The cable is fully loaded, with a QSFP+ transceiver at one end and four SFP+ transceivers at the other, so no separate optics are needed. It is designed for HPE BladeSystem c-Class deployments and supports InfiniBand protocol, making it suited to high-density server and switch interconnects.

Features

- Fan-out from one 40GbE QSFP+ port to four 10GbE SFP+ ports
- Low-latency, low-power and cost-effective alternative to optical transceivers for short reach
- Fully loaded cable with a QSFP+ transceiver at one end and four SFP+ transceivers at the other
- Designed for HPE BladeSystem c-Class deployments

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: 721064-B21
- Connector 1: 1 x QSFP+ (40G)
- Connector 2: 4 x SFP+ (10G)
- Cable length: 3 m (9.84 ft)
- Cable type: passive direct attach copper (DAC) splitter
- Aggregate data rate: 40 Gbps (4 x 10 Gbps)
- InfiniBand protocol support: Yes
- Operating temperature: 0°C to 70°C
- Operating relative humidity: 5% to 95%, non-condensing
- Storage temperature: -20°C to 80°C
- Storage relative humidity: 5% to 95%, non-condensing

FAQs

Q: What does this cable connect?
A: It connects one 40G QSFP+ port to four 10G SFP+ ports, splitting a single 40GbE interface into four 10GbE links.

Q: How long is the cable?
A: The cable is 3 m (9.84 ft) long, suited to short-reach connections within a rack or between adjacent racks.

Q: Do I need separate transceivers?
A: No. It is a fully loaded passive direct attach copper cable with the QSFP+ and SFP+ connectors built in, so no additional optics are required.

Q: Does it support InfiniBand?
A: Yes, InfiniBand protocol is supported in addition to 40GbE to 4x10GbE breakout use.

Q: What is the aggregate data rate?
A: The aggregate rate is 40 Gbps, delivered as four 10 Gbps lanes.

Q: What environment is it rated for?
A: Operating temperature is 0°C to 70°C and operating relative humidity is 5% to 95%, non-condensing.
